Installation Procedure

If installing a new BPMV, install the EBCM. Refer to Electronic Brake Control Module Replacement (Without JL4) or Electronic Brake Control Module Replacement (With JL4) .

Fig 1: BPMV Bolt

Courtesy of GENERAL MOTORS CORP.

Install the BPMV assembly to the BPMV bracket until the mounting pins are fully inserted in the bracket insulators.

NOTE: Refer to Fastener Notice .

Fig 2: LR Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the LR brake pipe fitting (1).
Tighten: Tighten the fitting to 21 N.m (15 lb ft).

Fig 3: RR Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the RR brake pipe fitting (1).
Tighten: Tighten the fitting to 21 N.m (15 lb ft).

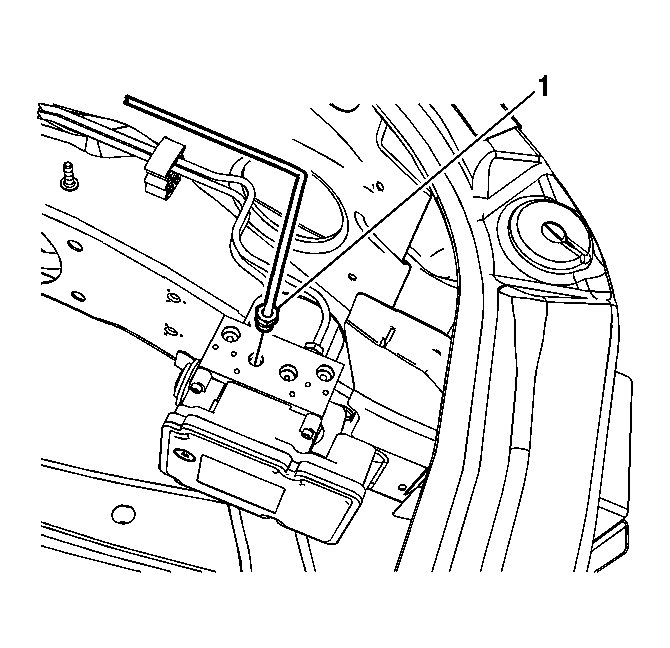

Fig 4: RF Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the RF brake pipe fitting (1).
Tighten: Tighten the fitting to 21 N.m (15 lb ft).

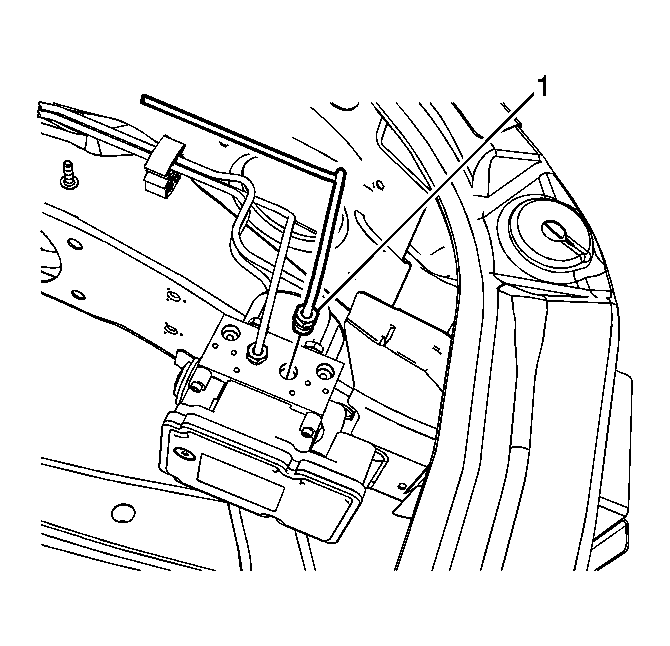

Fig 5: LF Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the LF brake pipe fitting (1).
Tighten: Tighten the fitting to 21 N.m (15 lb ft).

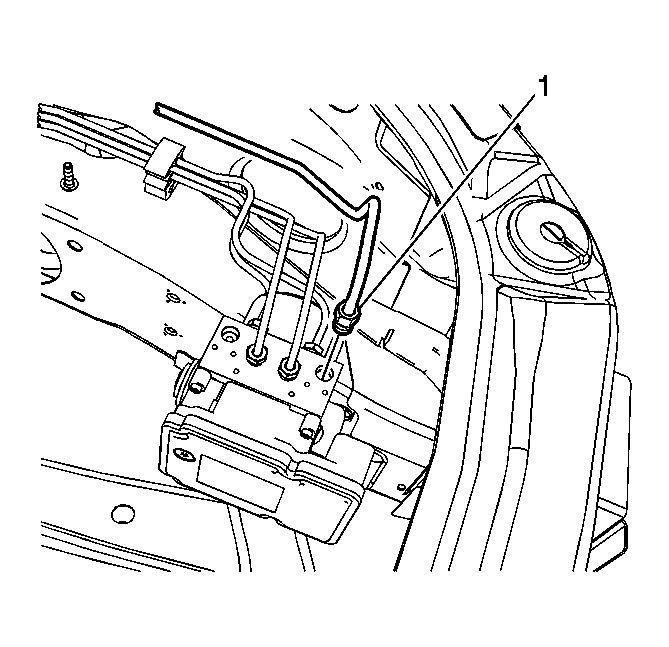

Fig 6: Master Cylinder Secondary Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the master cylinder secondary brake pipe fitting (1).
Tighten: Tighten the fitting to 21 N.m (15 lb ft).

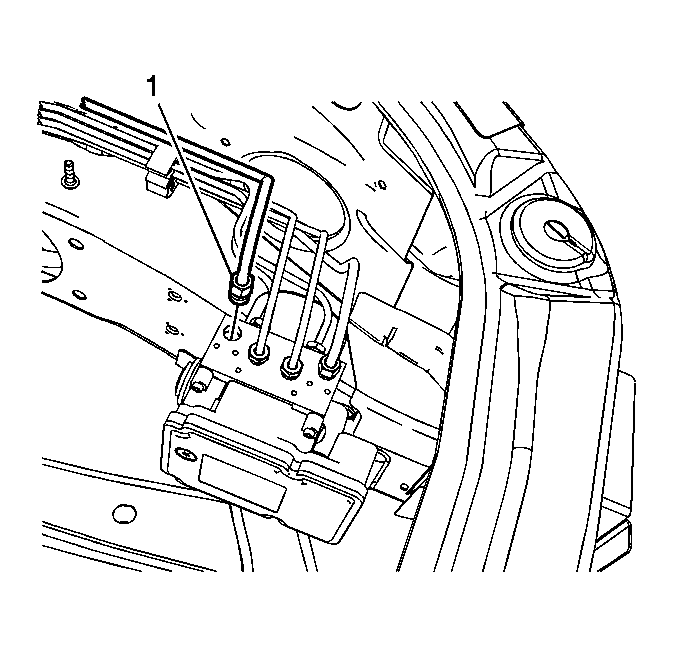

Fig 7: Master Cylinder Primary Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the master cylinder primary brake pipe fitting (1).
Tighten: Tighten the fitting to 21 N.m (15 lb ft).
Connect the EBCM electrical connector.
Install the cover to the ECM and the TCM.
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
Perform the Diagnostic System Check - Vehicle .
Observe the brake pedal feel after performing the diagnostic system check. If the pedal now feels spongy, air may have been in the secondary hydraulic circuit of the brake modulator which may have been introduced into the primary circuit. If the pedal feels spongy, perform the Antilock Brake System Automated Bleed Procedure .
