Data Communication Schematics

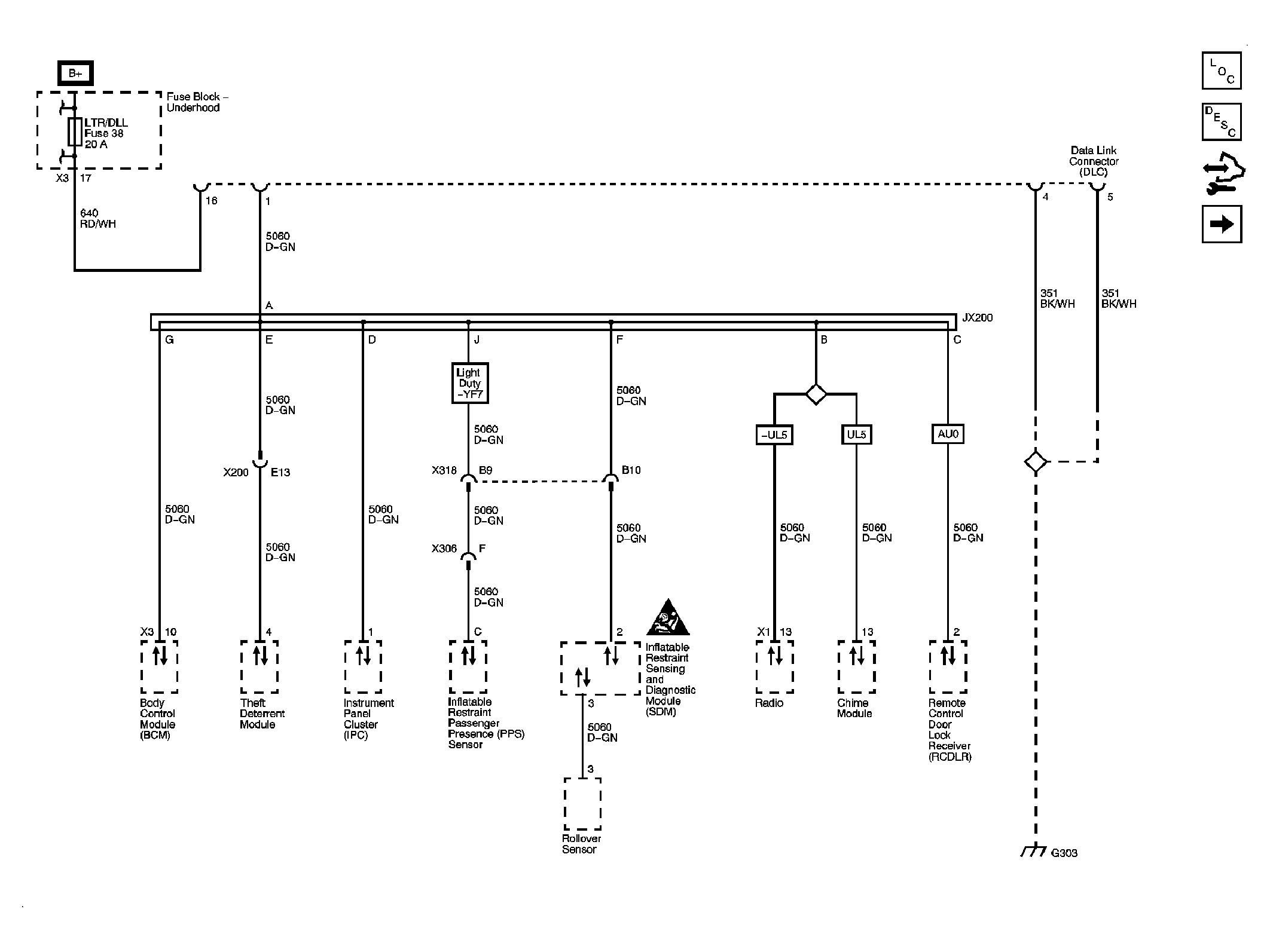

Fig 1: Low Speed GMLAN Schematic
GM1884068Courtesy of GENERAL MOTORS CORP.

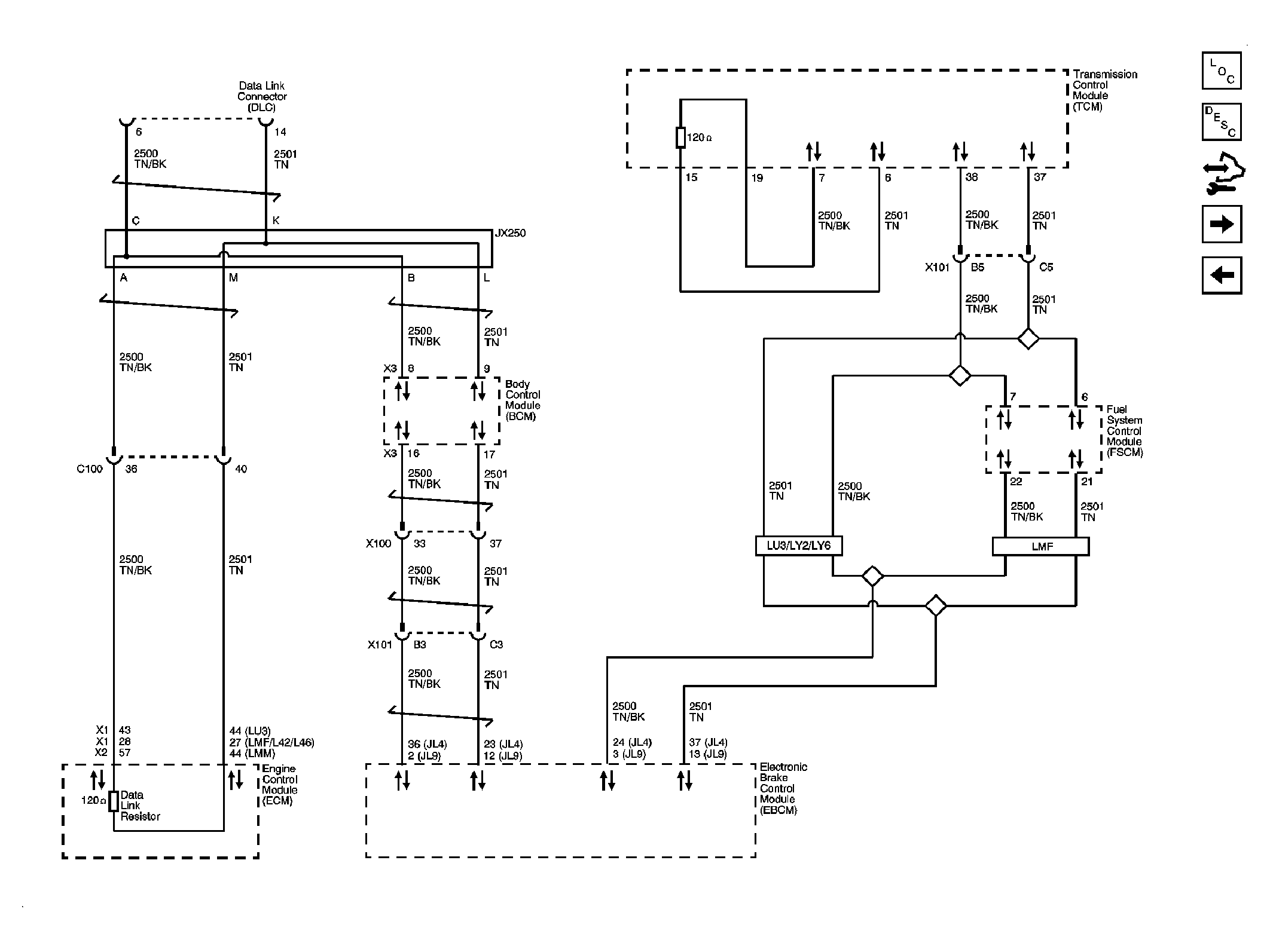

Fig 2: High Speed GMLAN LU3/LMF/LY2/LY6 Schematic
GM1884072Courtesy of GENERAL MOTORS CORP.

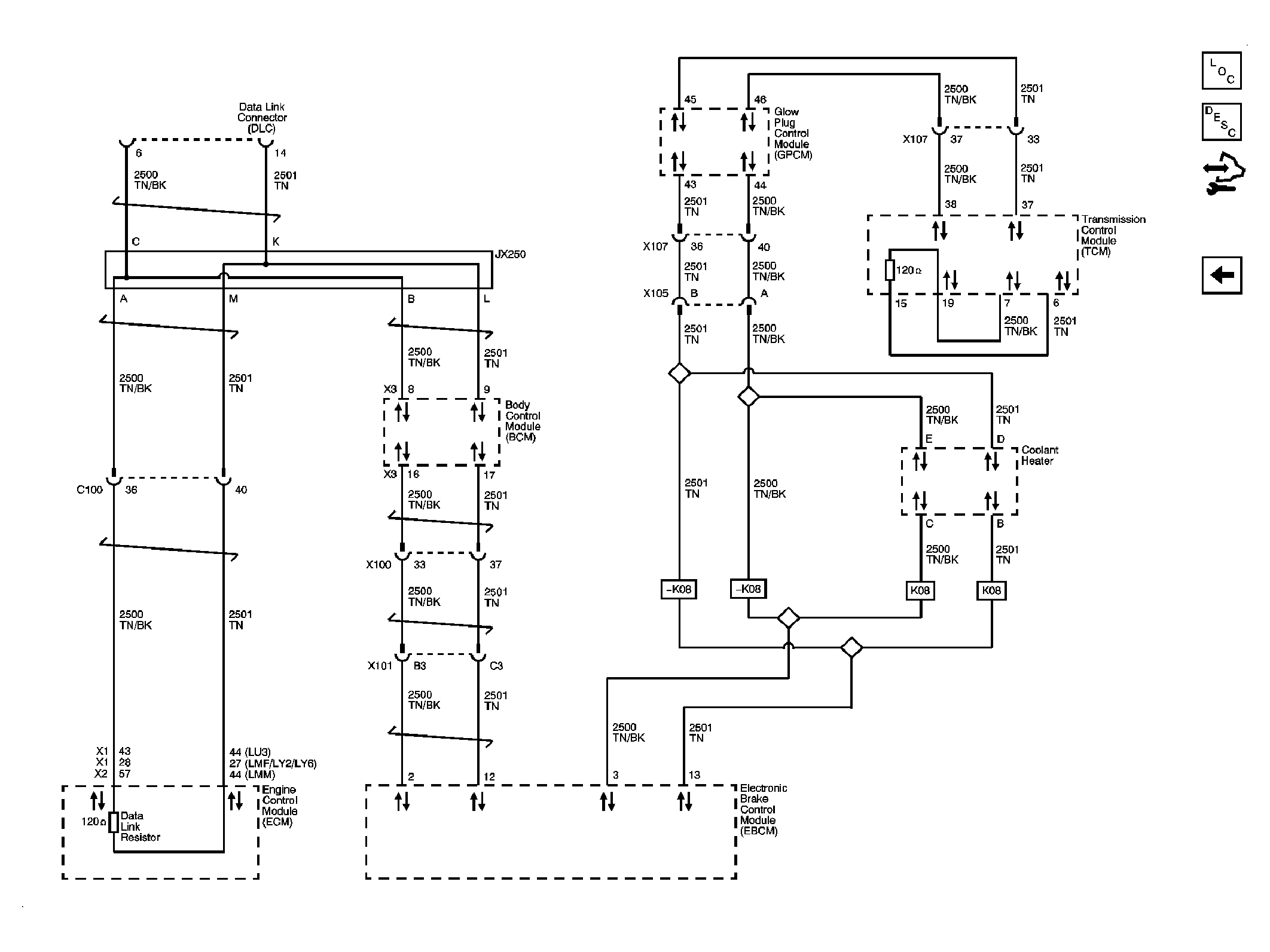

Fig 3: High Speed GMLAN (LMM) Schematic
GM1925728Courtesy of GENERAL MOTORS CORP.
