Removal Procedure

IMPORTANT: It is necessary to record the remaining engine oil life. If the replacement module is not programed with the remaining engine oil life, the engine oil life will default to 100 percent. If the replacement module is not programmed with the remaining engine oil life, the engine oil will need to be changed at 5 000 km (3,000 mi) from the last engine oil change.

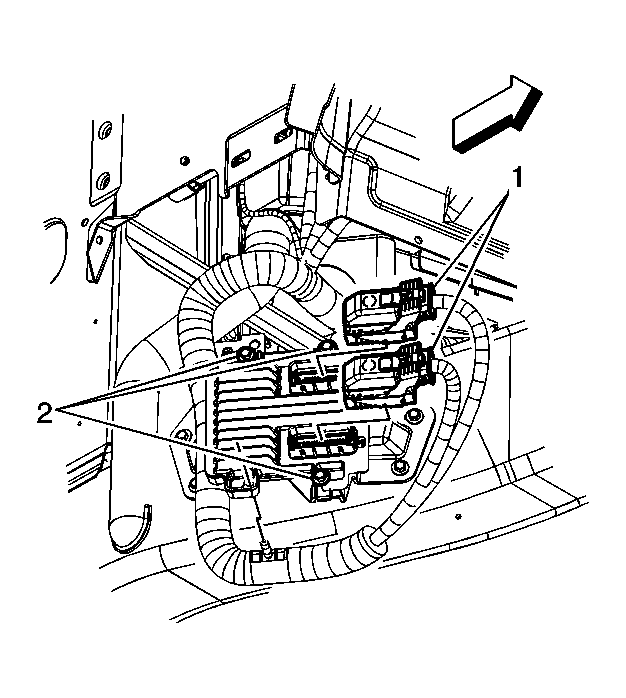

    Fig 1: Identifying ECM Bolts
    GM1868651Courtesy of GENERAL MOTORS CORP.
  1. Using a scan tool, retrieve the percentage of remaining engine oil. Record the remaining engine oil life.
  2. Remove the wheelhouse filler panel. Refer to Front Wheelhouse Liner Replacement (Rear Liner) or Front Wheelhouse Liner Replacement (Front Liner) .
  3. Disconnect the engine wiring harness electrical connectors (1) from the ECM.
  4. Remove the ECM bolts (2).
  5. Remove the ECM.
