Moveable Window Schematics

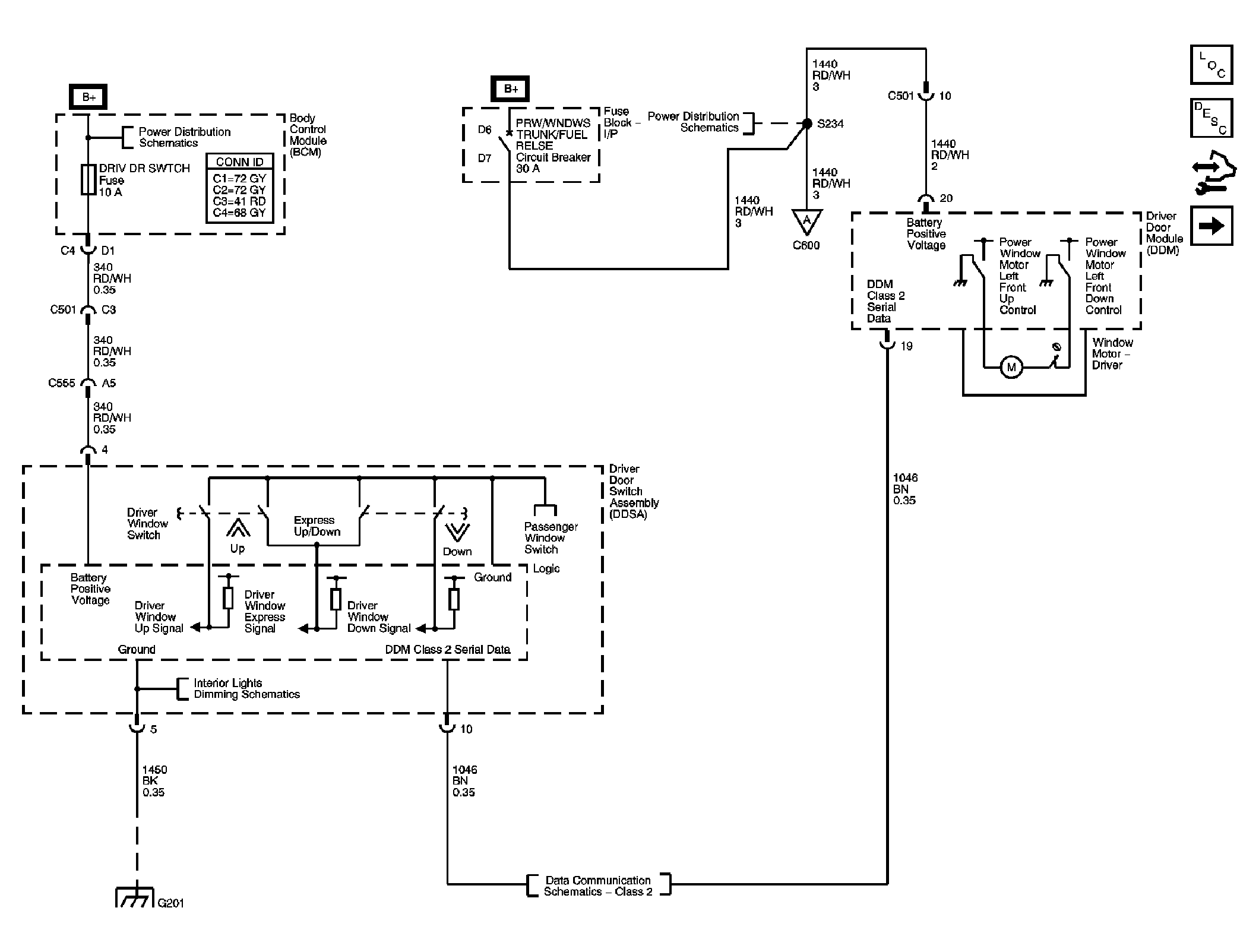

Fig 1: Driver Schematic

GM1892847

Courtesy of GENERAL MOTORS CORP.

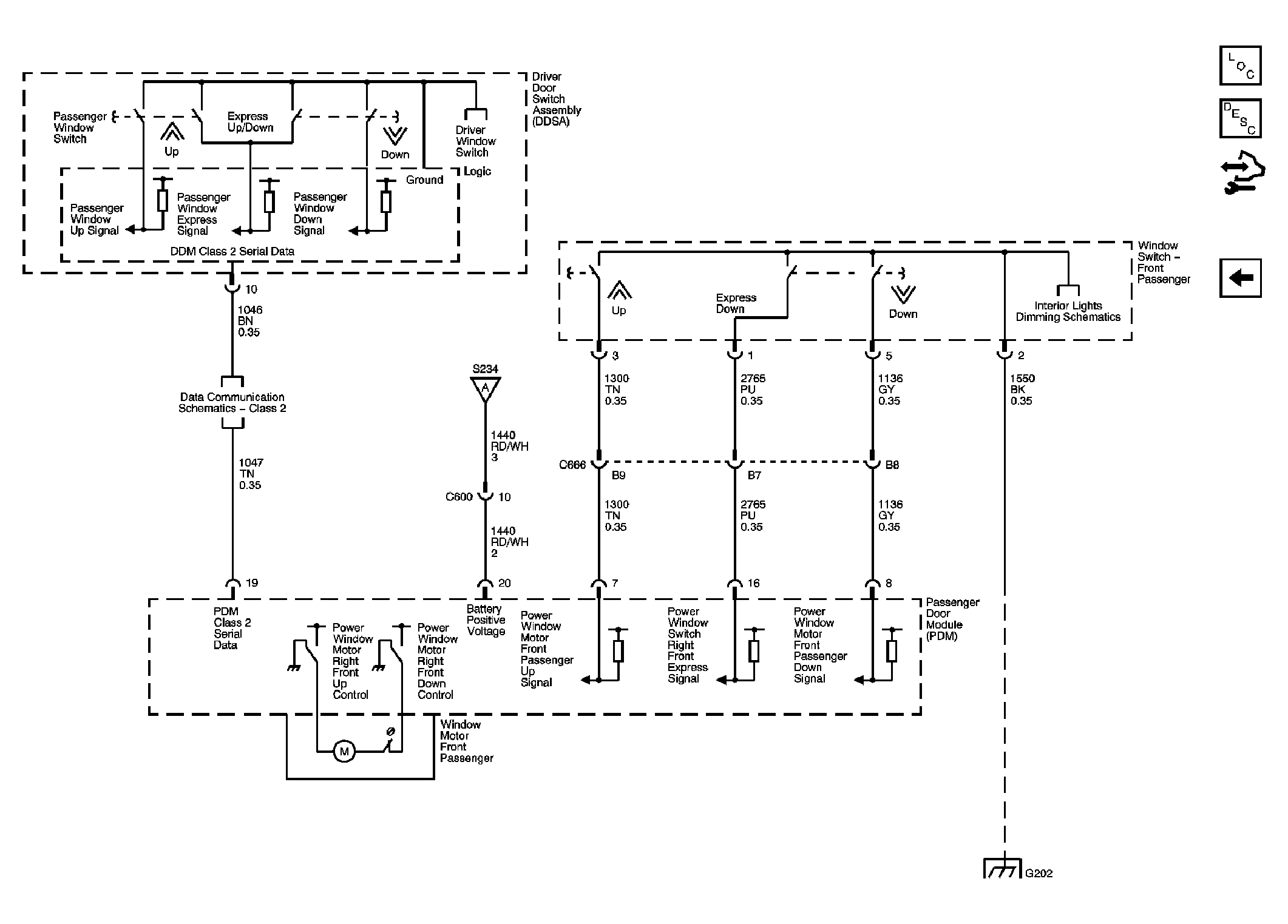

Fig 2: Passenger Schematic

GM1892848

Courtesy of GENERAL MOTORS CORP.
