Transmission Component Location

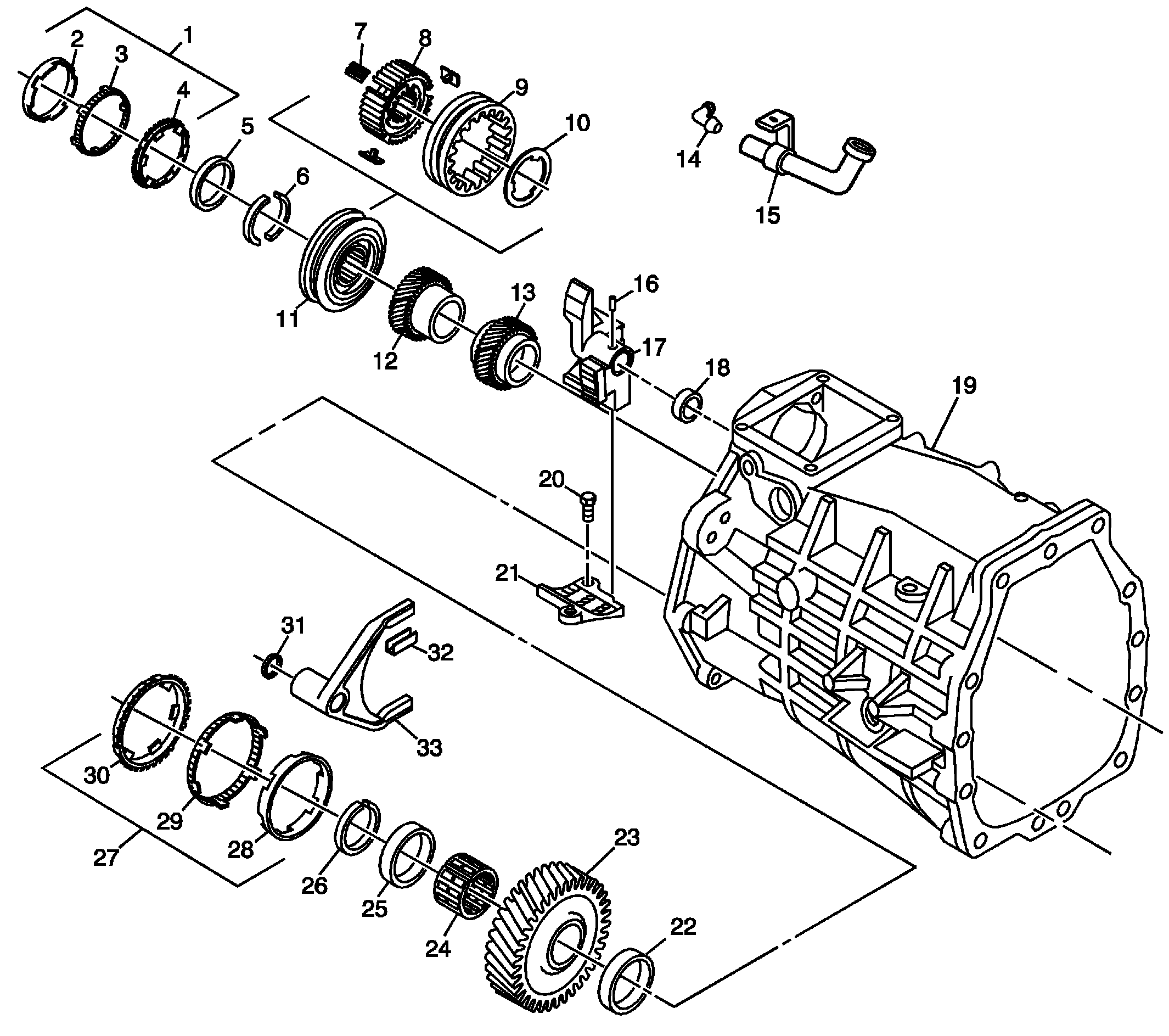

Fig 1: Transmission Case (1 of 2)
GM1887512Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Reverse Gear Blocking Ring Assembly
2 Reverse Gear Inner Ring
3 Reverse Gear Outer Cone
4 Reverse Gear Blocker Ring
5 Reverse Gear Thrust Washer Locking Ring
6 Reverse Synchronizer Two Piece Washer
7 Reverse Synchronizer Insert
8 Reverse Synchronizer Hub
9 Reverse Synchronizer Sleeve
10 Reverse Synchronizer Key Retainer
11 Reverse Synchronizer Assembly
12 5th Speed Driven Gear
13 6th Speed Driven Gear
14 Vent
15 Vent Pipe
16 Offset Lever Roll Pin
17 Offset Shift Lever
18 Top Shift Shaft Bushing
19 Transmission Case
20 Guide Plate Bolt
21 Guide Plate
22 6th Speed Drive Gear Bearing Spacer
23 6th Speed Drive Gear
24 6th Speed Drive Gear Needle Bearing
25 6th Speed Drive Gear Bearing Spacer
26 Synchronizer Retainer Ring
27 6th Gear Blocking Ring Assembly
28 6th Speed Drive Gear Inner Cone
29 6th Speed Drive Gear Outer Cone
30 6th Speed Drive Gear Synchronizer Blocking Ring
31 Reverse Shift Fork Retainer Ring
32 Reverse Shift Fork Pad
33 Reverse Shift Fork

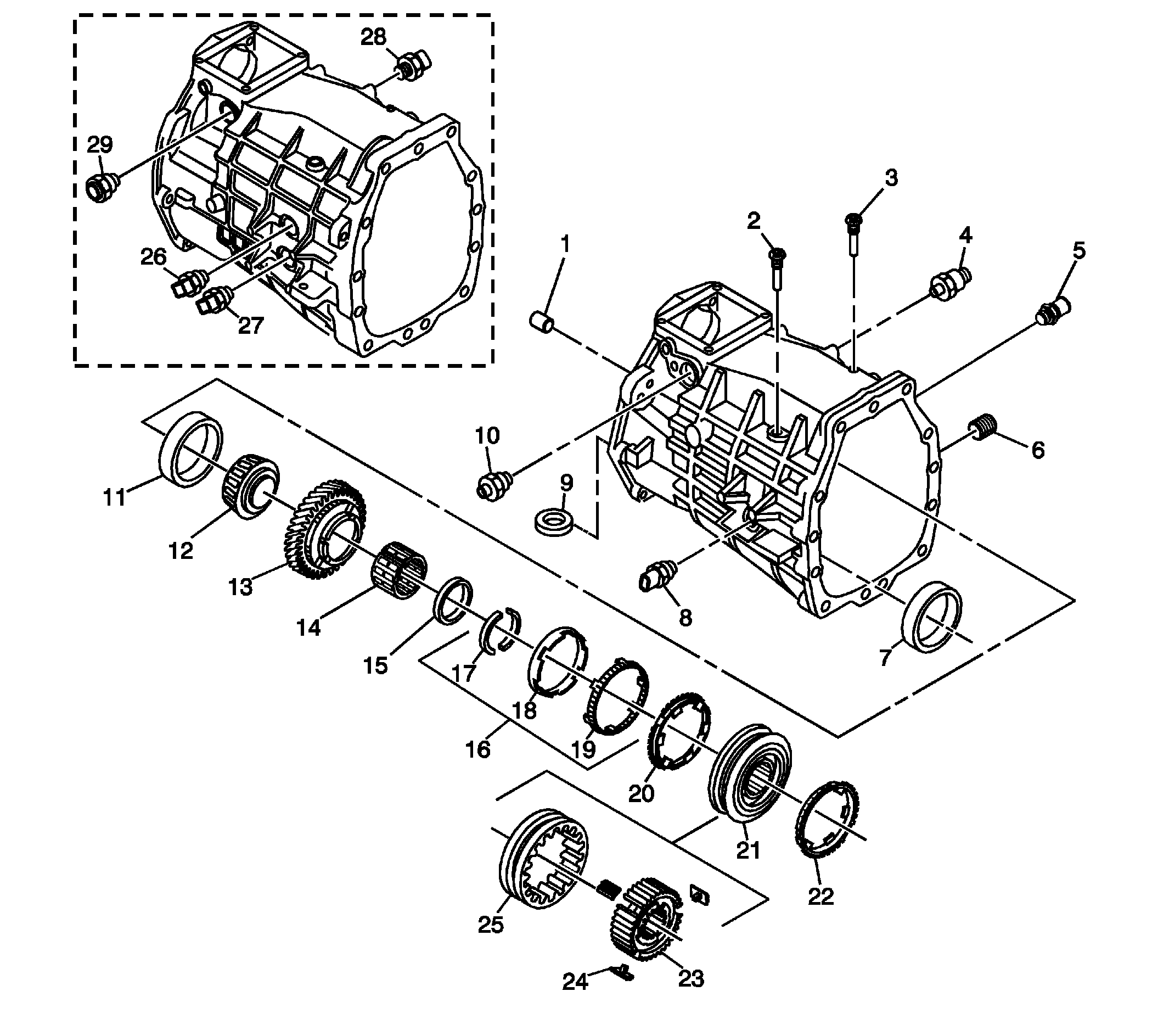

Fig 2: Transmission Case (2 of 2)
GM1887513Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Case Rear Extension Pin
2 5th/6th Lever Guide Bolt
3 Interlock Guide Bolt
4 Computer Aided Gear Select Solenoid
5 Cooler LIne Return Fitting
6 Oil Fill Plug
7 Countershaft Bearing Race
8 Backup Lamp Switch
9 Magnet
10 Shift Detent Assembly
11 Mainshaft Center Bearing Race
12 Mainshaft Center Bearing
13 1st Speed Drive Gear
14 1st Speed Drive Gear Needle Bearing
15 1st Speed Drive Gear Locking Ring
16 1st Gear Blocking Ring Assembly
17 1st Speed Gear Two Piece Washer
18 1st Speed Drive Gear Inner Cone
19 1st Speed Drive Gear Outer Cone
20 1st Gear Synchronizer Blocking Ring
21 1st/2nd Synchronizer Assembly
22 2nd Gear Synchronizer Blocking Ring
23 1st/2nd Synchronizer Hub
24 1st/2nd Synchronizer Insert
25 1st/2nd Synchronizer Sleeve
26 Reverse Backup Lamp Switch (Export Only)
27 E-Z Key Switch (Export Only)
28 Coolant Temperature Sensor (Z51, Z06, Exports)
29 Detent (Export Only)

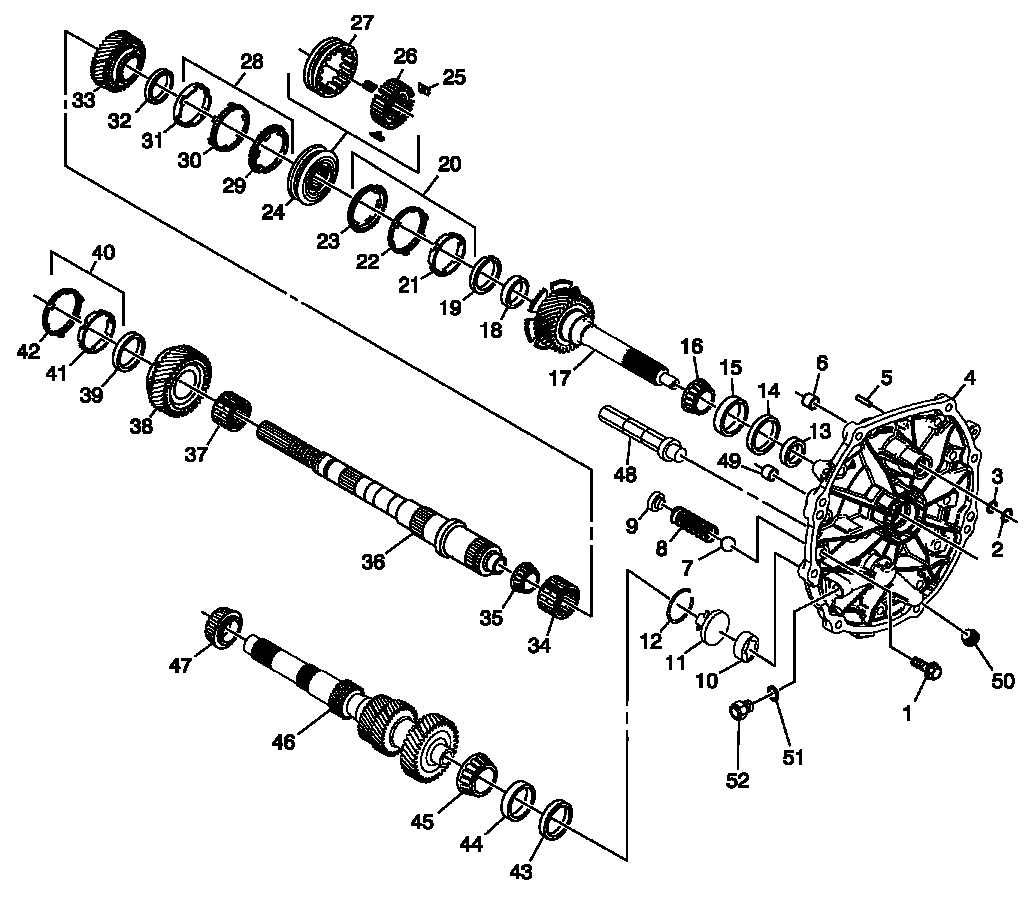

Fig 3: Adapter Plate and Gears
GM1887515Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Adapter to Transmission Case Bolt
2 Outer Shift Shaft Seal
3 Inner Shift Shaft Seal
4 Front Adapter Plate
5 Dowel Pin
6 Top Shaft Rail Bushing
7 Spring
8 Plug
9 Oil Pump
10 Oil Pump Cover
11 Oil Pump Cover Retainer Ring
12 Input Shaft Seal
13 Input Shaft Bearing Shim
14 Input Shaft Bearing Race
15 Input Shaft Bearing
16 Input Shaft
17 Input Shaft Bearing Race
18 3rd/4th Synchronizer Retaining Ring
19 4th Gear Blocking Ring Assembly
20 4th Speed Drive Gear Inner Cone
21 4th Speed Drive Gear Outer Cone
22 4th Speed Drive Gear Blocking Ring
23 3rd/4th Synchronizer Assembly
24 3rd/4th Synchronizer Insert
25 3rd/4th Synchronizer Hub
26 3rd/4th Synchronizer Sleeve
27 3rd Gear Blocking Ring Assembly
28 3rd Speed Drive Gear Synchronizer Blocking Ring
29 3rd Speed Drive Gear Friction Cone
30 3rd Speed Drive Gear Inner Cone
31 3rd Speed Drive Gear Spacer
32 3rd Speed Drive Gear
33 3rd Speed Drive Gear Bearing
34 Mainshaft Small Tapered Bearing
35 Mainshaft
36 2nd Speed Drive Gear Needle Bearing
37 2nd Speed Drive Gear
38 2nd Speed Drive Gear Bearing Spacer
39 2nd Gear Blocking Ring Assembly
40 2nd Speed Drive Gear Inner Cone
41 2nd Speed Drive Gear Outer Cone
42 Countershaft Bearing Adjust Shim
43 Countershaft Bearing Race
44 Countershaft Front Bearing
45 Countershaft
46 Countershaft Rear Bearing

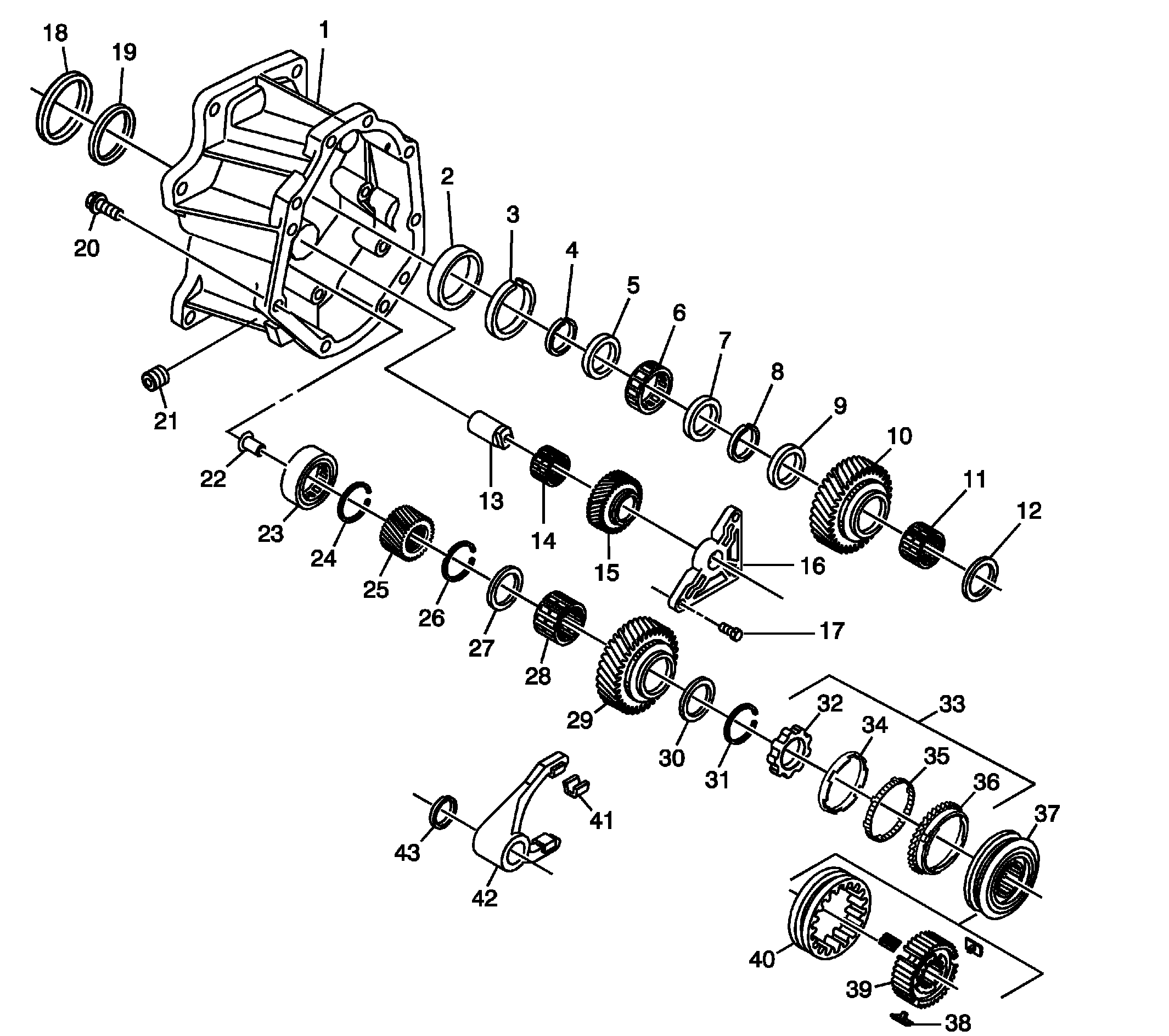

Fig 4: Extension Housing
GM1887516Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Extension Housing
2 Mainshaft Bearing Race
3 Mainshaft Rear Bearing Retainer Ring
4 Mainshaft Rear Bearing Retainer Ring
5 Mainshaft Gear Bearing Spacer
6 Mainshaft Rear Bearing
7 Mainshaft Gear Bearing Spacer
8 Synchronizer Retainer Ring
9 Reverse Gear Thrust Washer
10 Mainshaft Reverse Speed Gear
11 Reverse Gear Bearing
12 Reverse Gear Washer
13 Reverse Idler Gear Shaft
14 Reverse Idler Gear Needle Bearing
15 Reverse Idler Gear
16 Reverse Idler Bracket
17 Reverse Idler Bracket Bolt
18 Outer Output Shaft Seal
19 Inner Output Shaft Seal
20 Extension Housing to Transmission Case Bolt
21 Oil Drain Plug
22 Lubrication Funnel
23 Extension Housing Counter Shaft Bearing Assembly
24 Separate Gear
25 Retainer
26 5th Speed Drive Gear Needle Bearing
27 5th Speed Drive Gear
28 5th Gear Blocking Ring Assembly
29 5th Speed Gear Inner Cone
30 5th Speed Gear Friction Cone
31 5th Gear Synchronizer Blocking Ring
32 5th/6th Synchronizer Assembly
33 5th/6th and Reverse Synchronizer Insert
34 5th/6th Synchronizer Hub
35 5th/6th Synchronizer Sleeve
36 Shift Fork Pad
37 5th/6th Shift Fork
38 5th Gear Shift Fork Retainer Ring

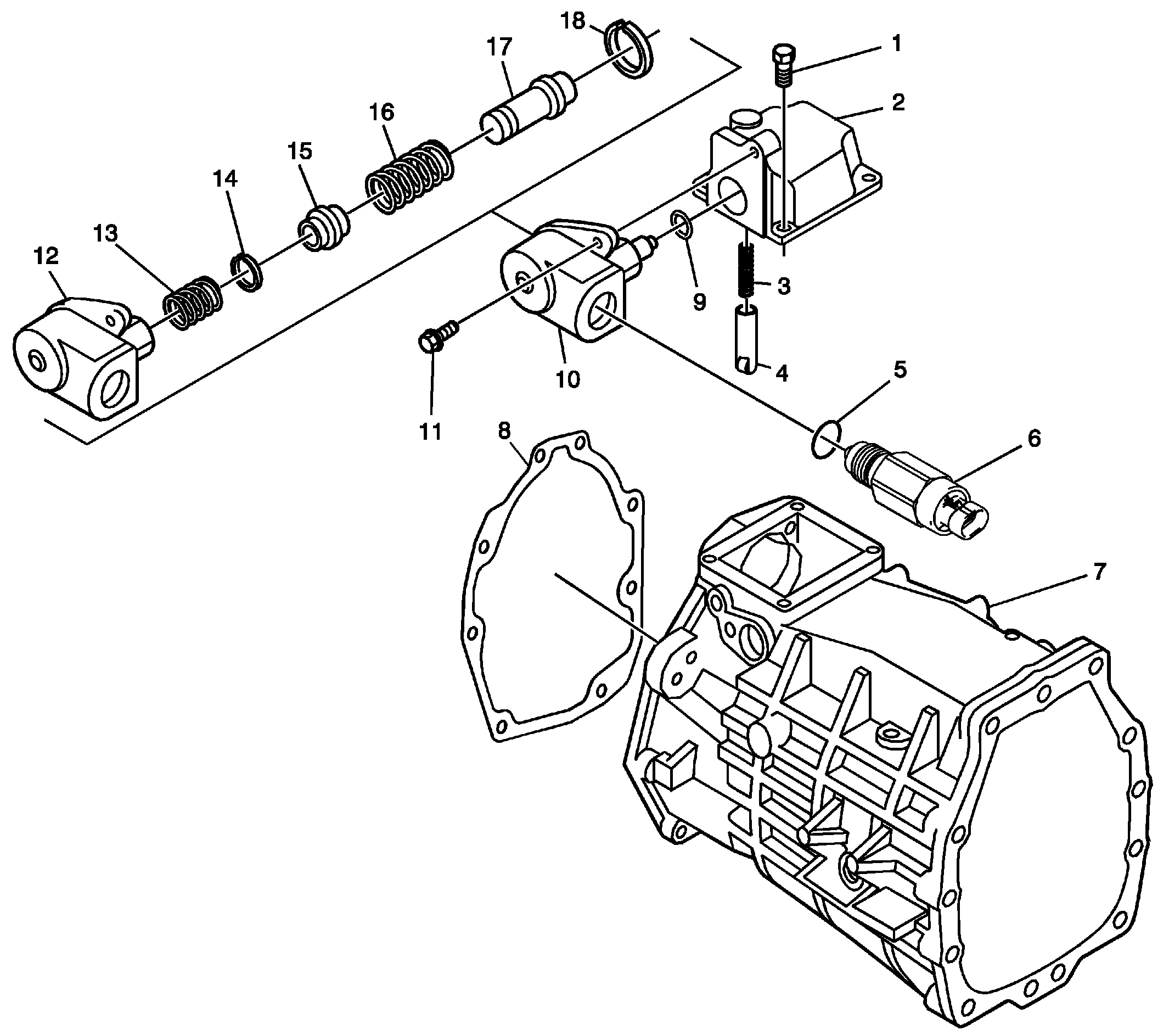

Fig 5: Reverse Lockout
GM1887518Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Case Cover Bolt
2 Transmission Case Cover
3 Spring
4 Detent Roller
5 Reverse Lockout O-ring Seal
6 Reverse Lockout Solenoid
7 Transmission Case
8 Gasket
9 O-ring
10 Reverse Lockout Assembly
11 Reverse Lockout Solenoid Mounting Bolt
12 Reverse Lockout Body
13 Reverse Lockout Inner Spring
14 Snap Ring
15 Reverse Lockout Collar
16 Reverse Lockout Outer Spring
17 Reverse Lockout Plunger
18 Snap Ring

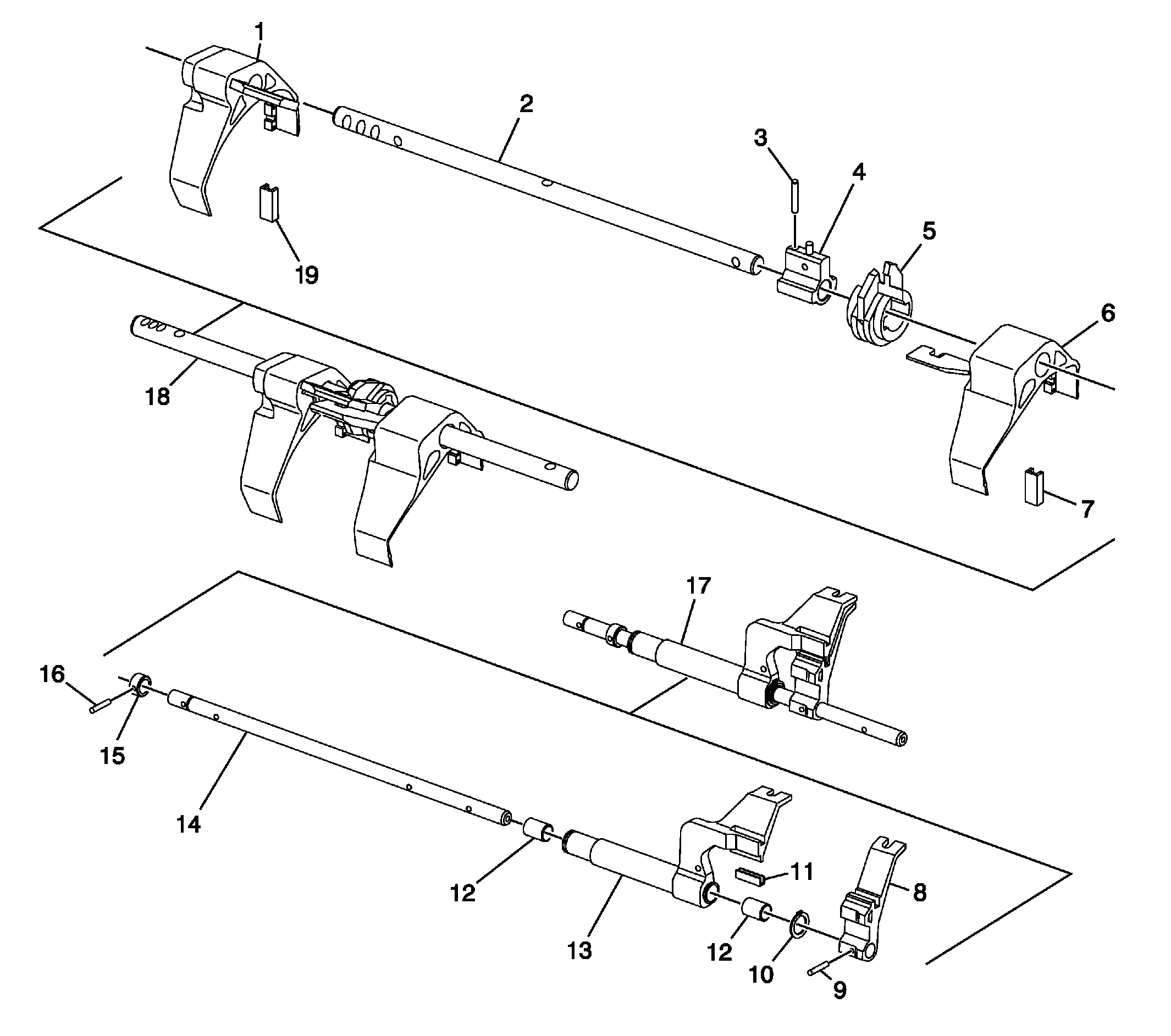

Fig 6: Shift Shafts
GM1887520Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 1st/2nd Shift Fork
2 Shift Shaft
3 Neutral Return Cam Pin
4 1st/2nd Shift Fork Pin
5 Control Select Arm Pin
6 Gear Select Interlock Plate
7 3rd/4th Shift Fork
8 3rd/4th Shift Fork Pad
9 Offset Shift Lever
10 Reverse Shift Lever Pin
11 Retaining Ring
12 5th/6th Shift Lever Pad
13 5th/6th Shift Shaft Lever Bushing
13 5th/6th Shift Shaft Lever Bushing
14 5th/6th Shift Lever
15 5th/6th Reverse Shift Shaft
16 Reverse Shift Collar
17 Reverse Shift Collar Pin
18 5th/6th Shift Lever Assembly
19 1st/2nd Shift Shaft Assembly
20 1st/2nd Shift Fork Pad
