Corvette Base, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Schematic and Routing Diagrams
>>
Power Steering Schematics
Power Steering Schematics

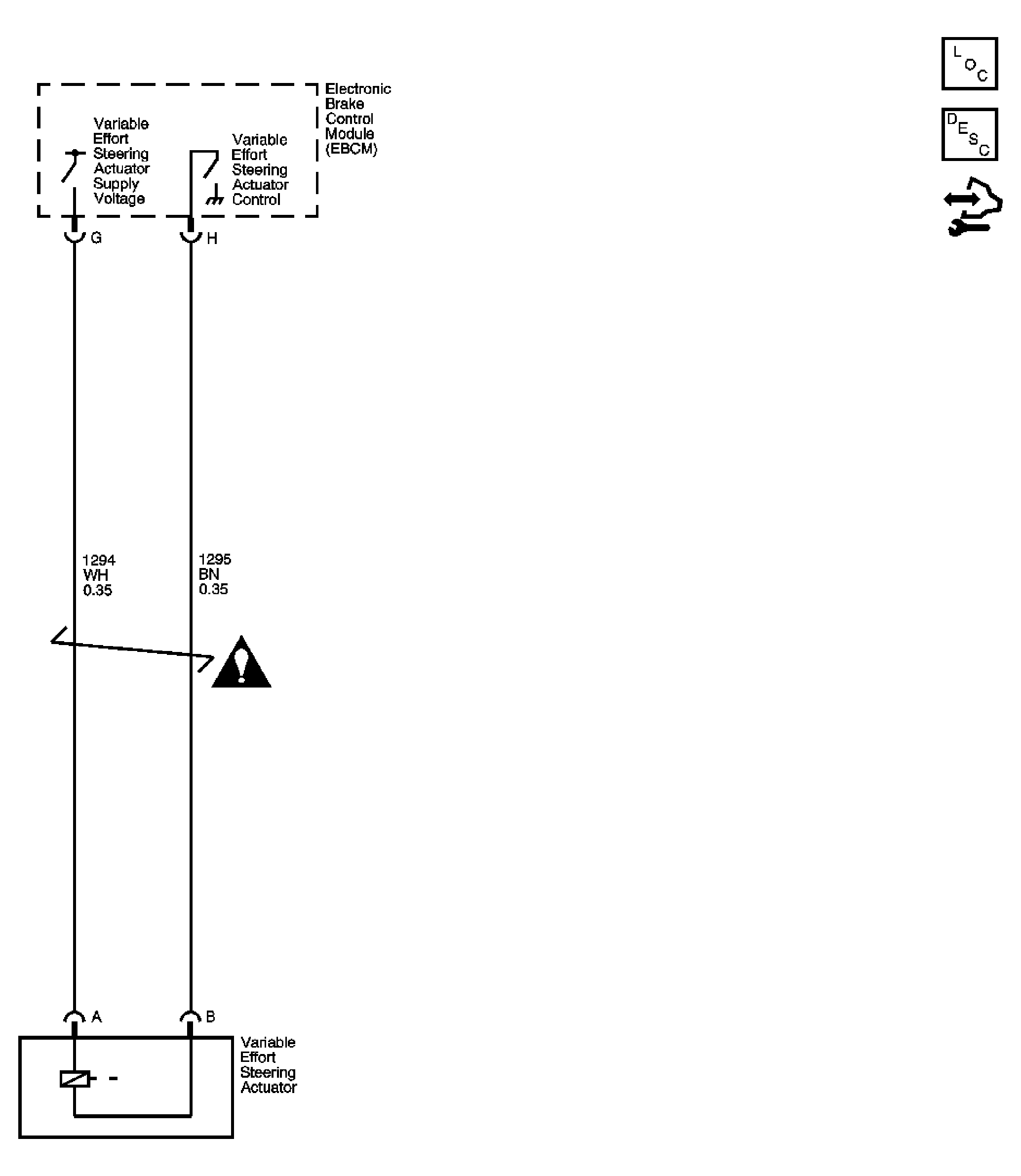

Fig 1: Power Steering Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
