Wheels/Vehicle Underbody Component Views

Fig 1: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Left Front
2	Wheel Speed Sensor (WSS) - Left Rear
3	Wheel Speed Sensor (WSS) - Right Rear
4	Wheel Speed Sensor (WSS) - Right Front

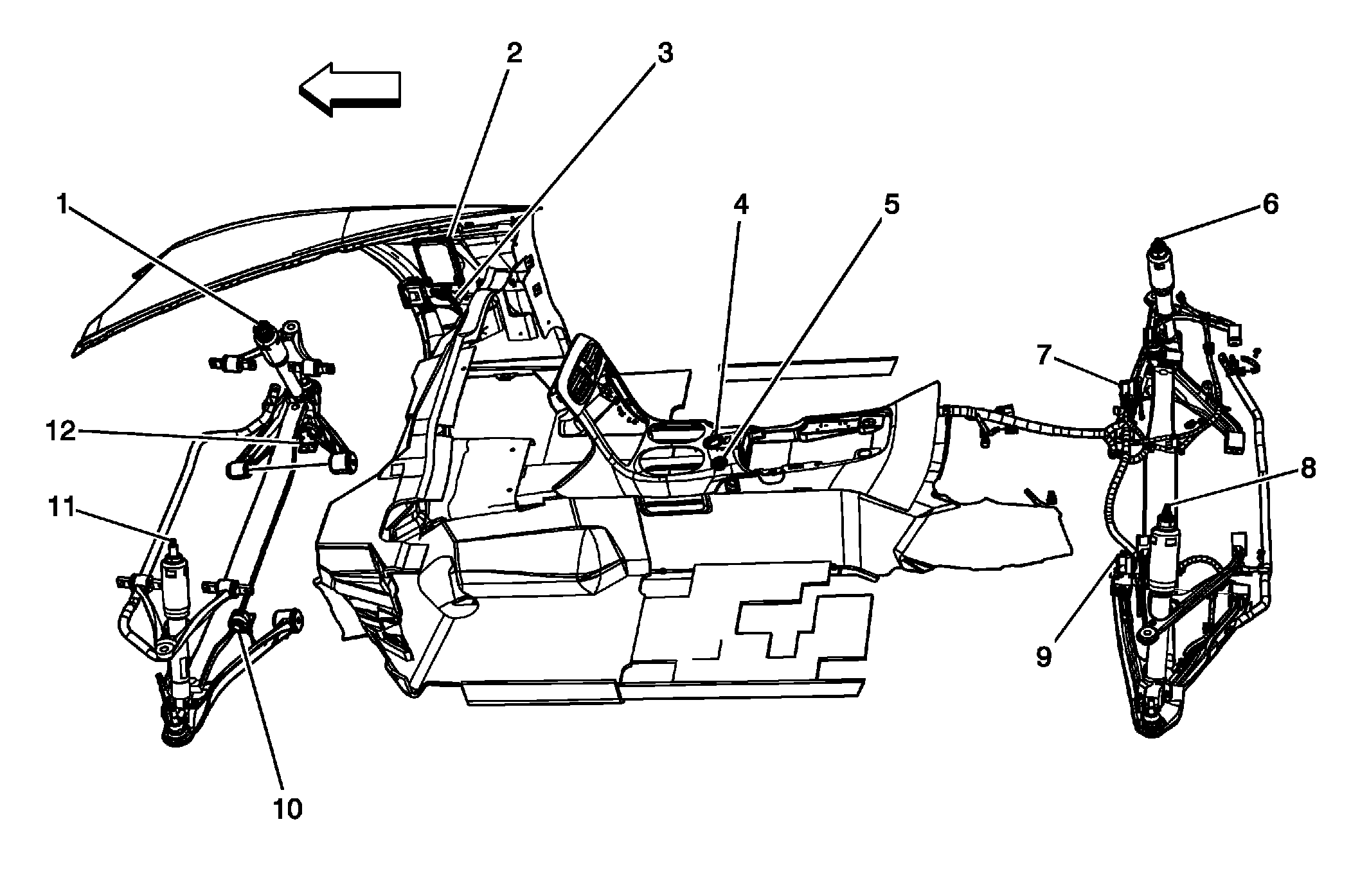

Fig 2: Identifying Suspension Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper - Right Front
2	Electronic Suspension Control (ESC) Module
3	Transmission Harness
4	Suspension Control Switch
5	Traction Control Switch
6	Suspension Damper - Right Rear
7	Suspension Position Sensor - Right Rear
8	Suspension Damper - Left Rear
9	Suspension Position Sensor - Left Rear
10	Suspension Position Sensor - Left Front
11	Suspension Damper - Left Front
12	Suspension Position Sensor - Right Front
