Luggage Compartment/Rear of Vehicle Component Views

Fig 1: Identifying Rear Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Keyless Entry Antenna-Right
2	Rear Compartment Lid Latch Assembly
3	Keyless Entry Antenna-Rear Compartment
4	Keyless Entry Antenna-Left

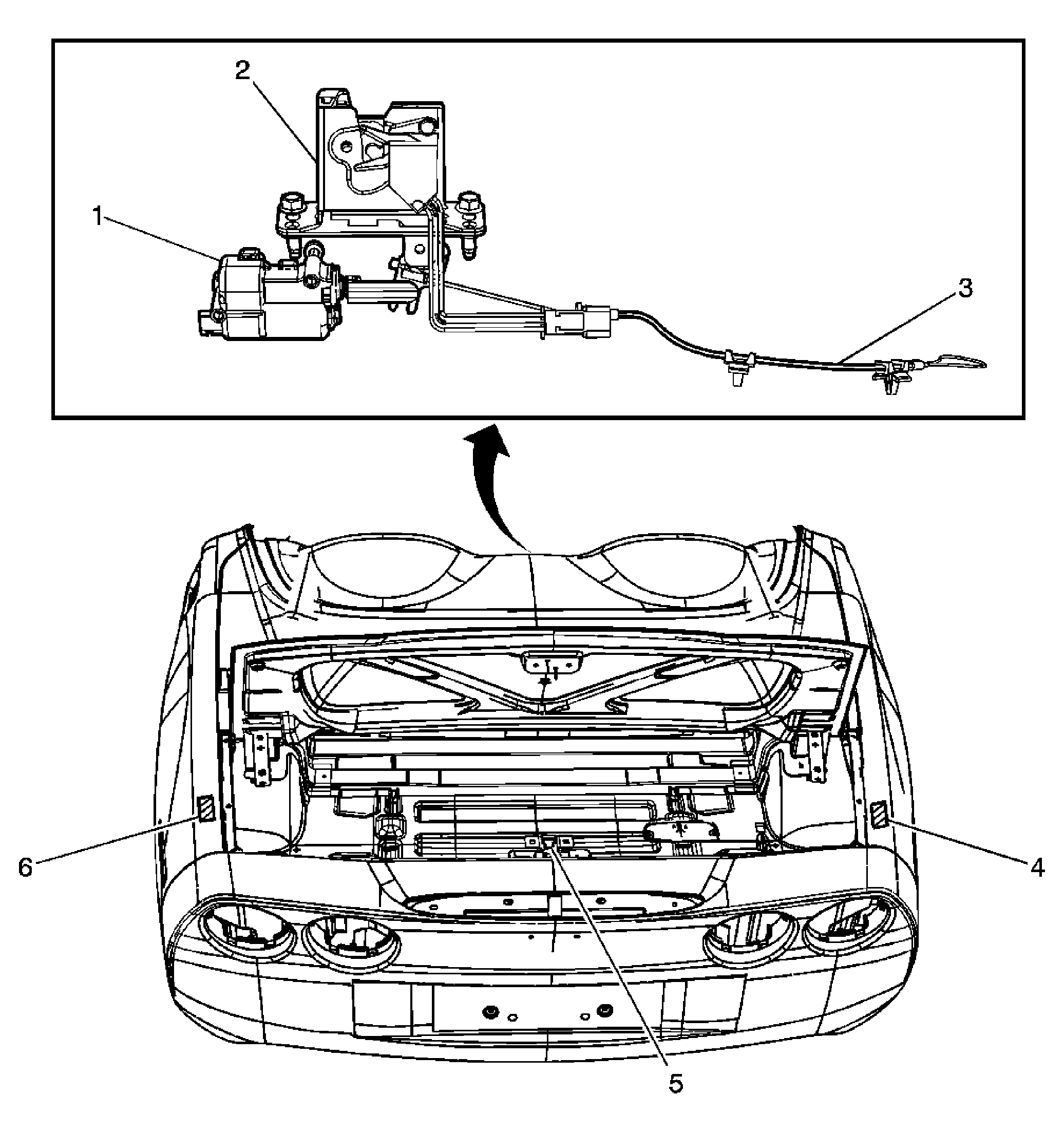

Fig 2: Rear Compartment Area Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Lid Release Motor (CM7)
2	Folding Top Cover Latch Actuator (CM7)
3	Manual Release Cable
4	Rear Compartment Courtesy Lamp - Right
5	Rear Compartment Lid Pull Down Actuator (Coupe)
6	Rear Compartment Courtesy Lamp - Left

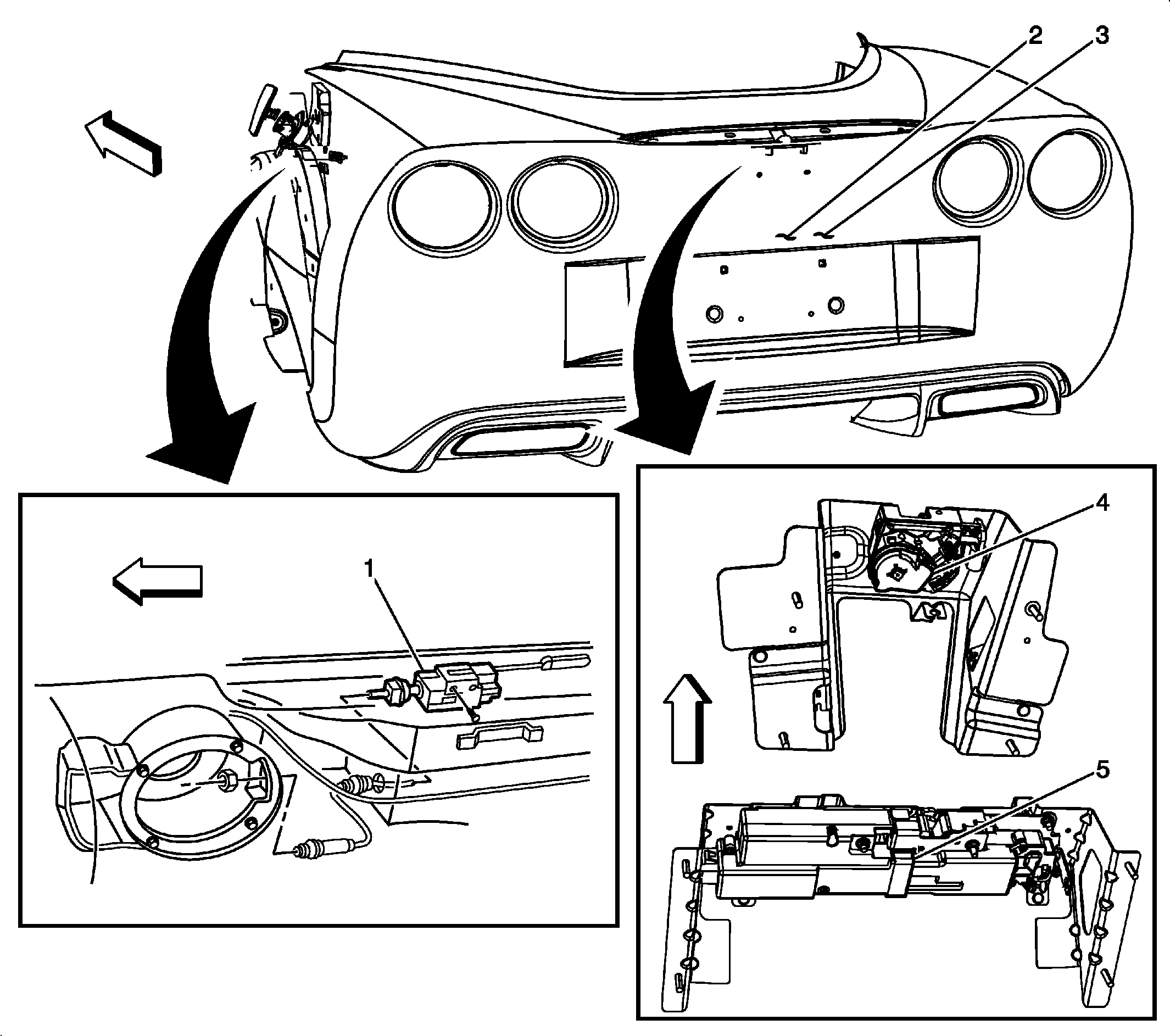

Fig 3: Rear Closure Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Door Release Actuator
2	Rear Compartment Lid Key Switch (Convertible/Z06)
3	Rear Compartment Lid Release Switch - Exterior
4	Rear Compartment Lid Latch Assembly (Convertible)
5	Rear Compartment Lid Pull Down Actuator (Coupe)

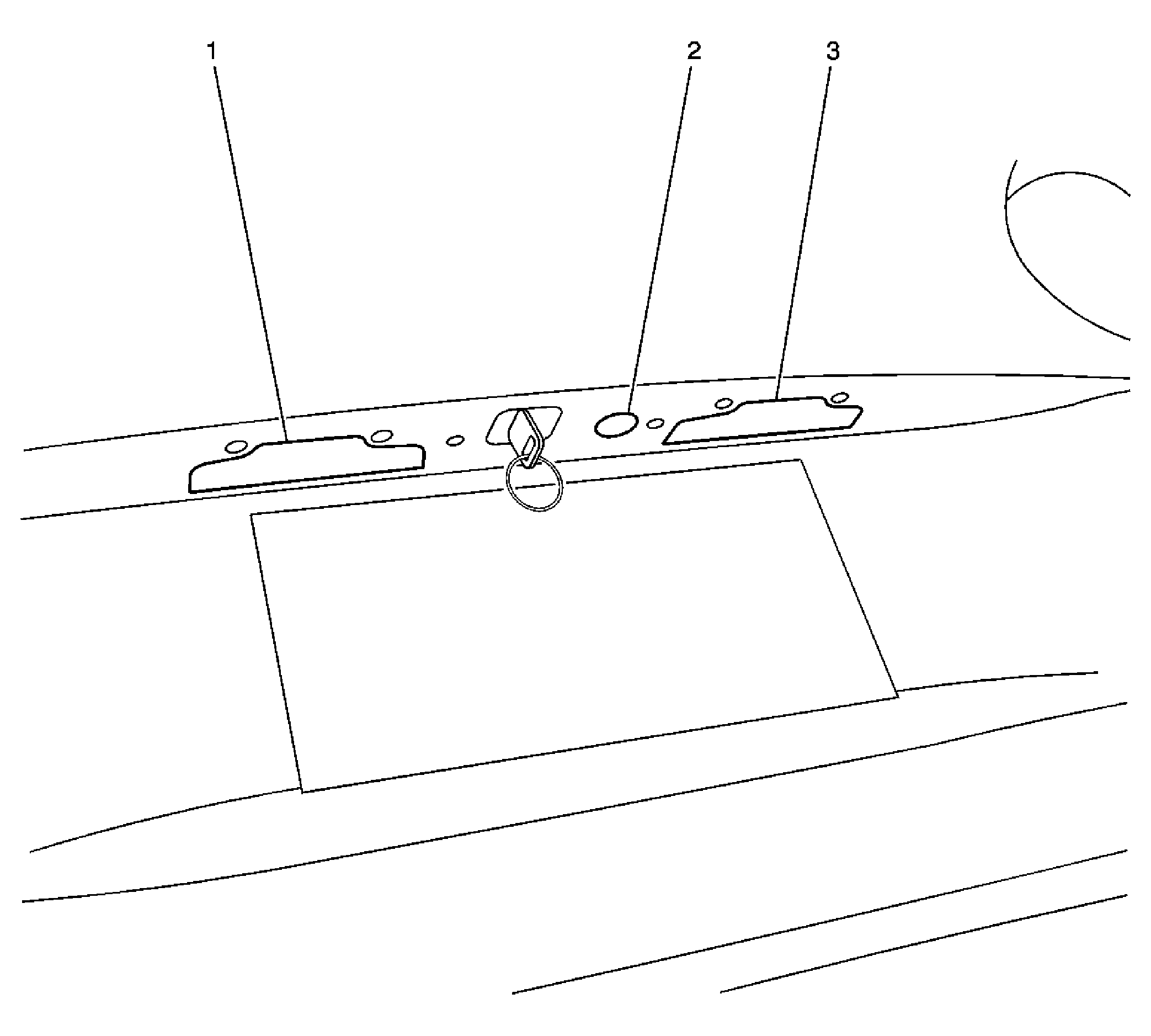

Fig 4: Rear Compartment Lid Latch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	License Lamp - Left
2	Rear Compartment Lid Release Switch - Exterior
3	License Lamp - Right

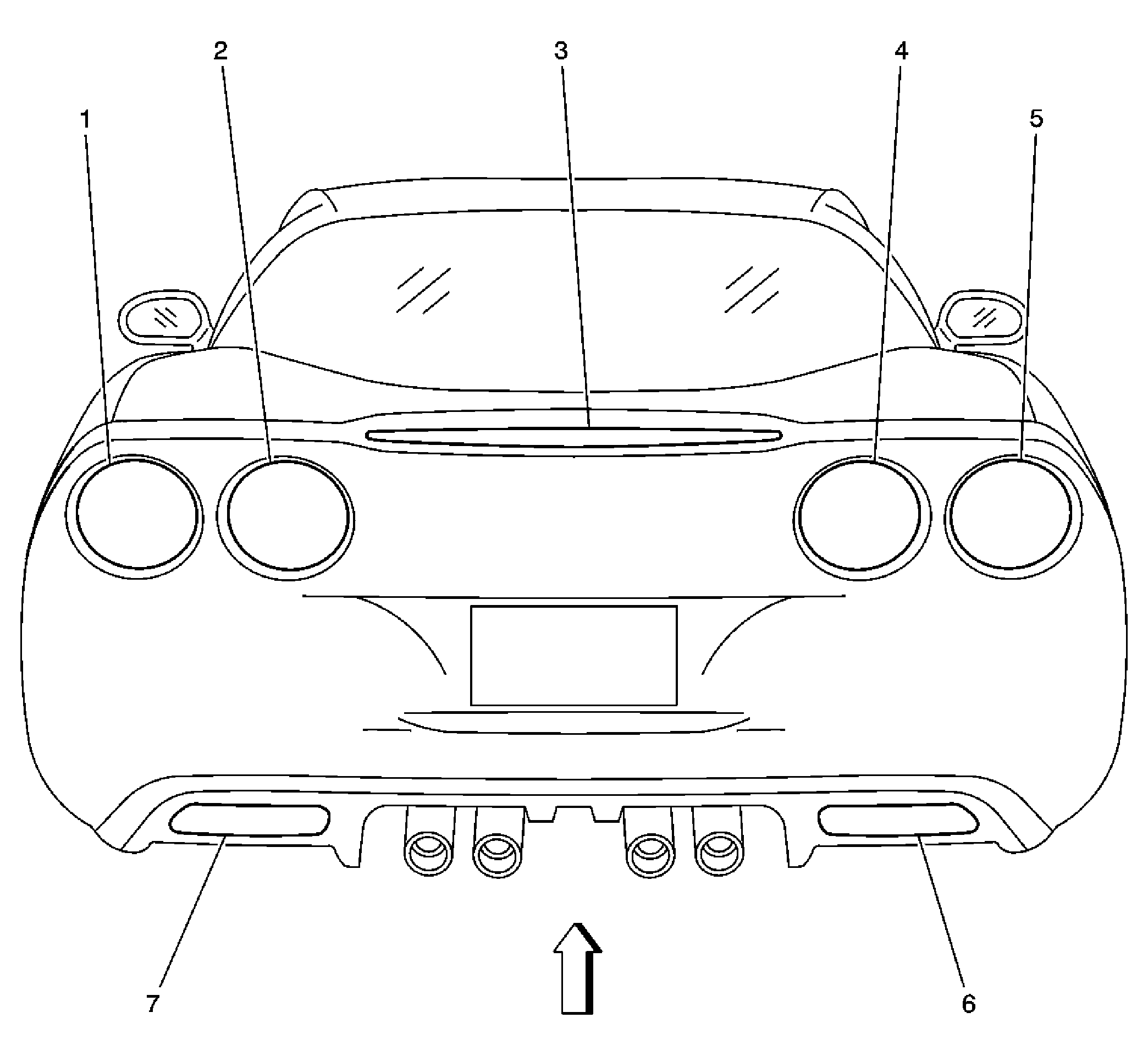

Fig 5: Identifying Rear of the Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Left Outer (-T79) or Turn Signal Lamp - Left Rear (T79)
2	Tail/Stop and Turn Signal Lamp - Left Inner (-T79) or Tail/Stop Lamp - Left (T79)
3	Center High Mounted Stop Lamp (CHMSL)
4	Tail/Stop and Turn Signal Lamp - Right Inner (-T79) or Tail/Stop Lamp - Right (T79)
5	Tail/Stop and Turn Signal Lamp - Right Outer (-T79) or Turn Signal Lamp - Right Rear (T79)
6	Backup Lamp - Right
7	Backup Lamp - Left
