Door Component Views

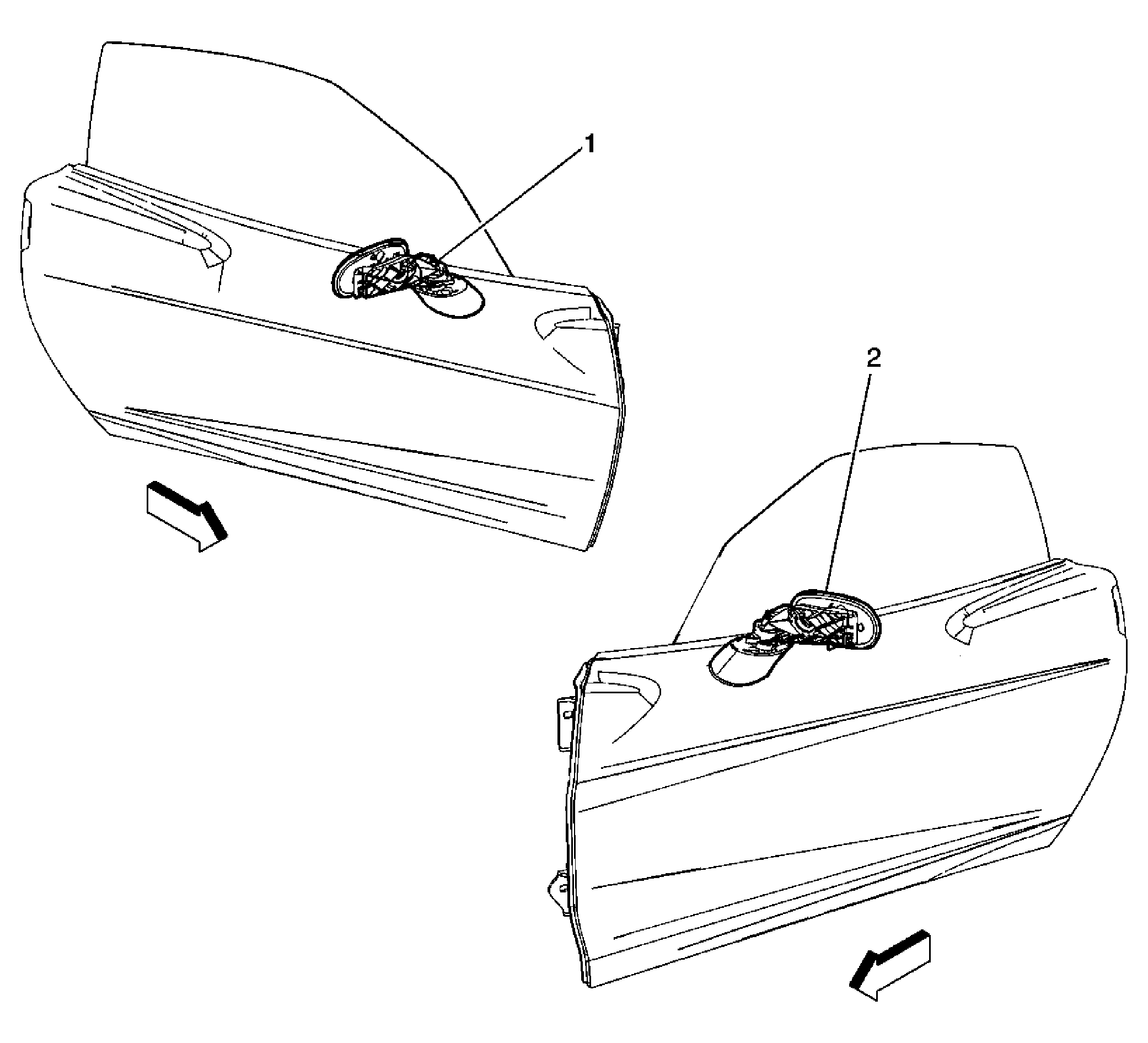

Fig 1: View Of Outside Mirrors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna - Passenger (U2K)
2	Digital Radio Antenna - Driver (U2K)

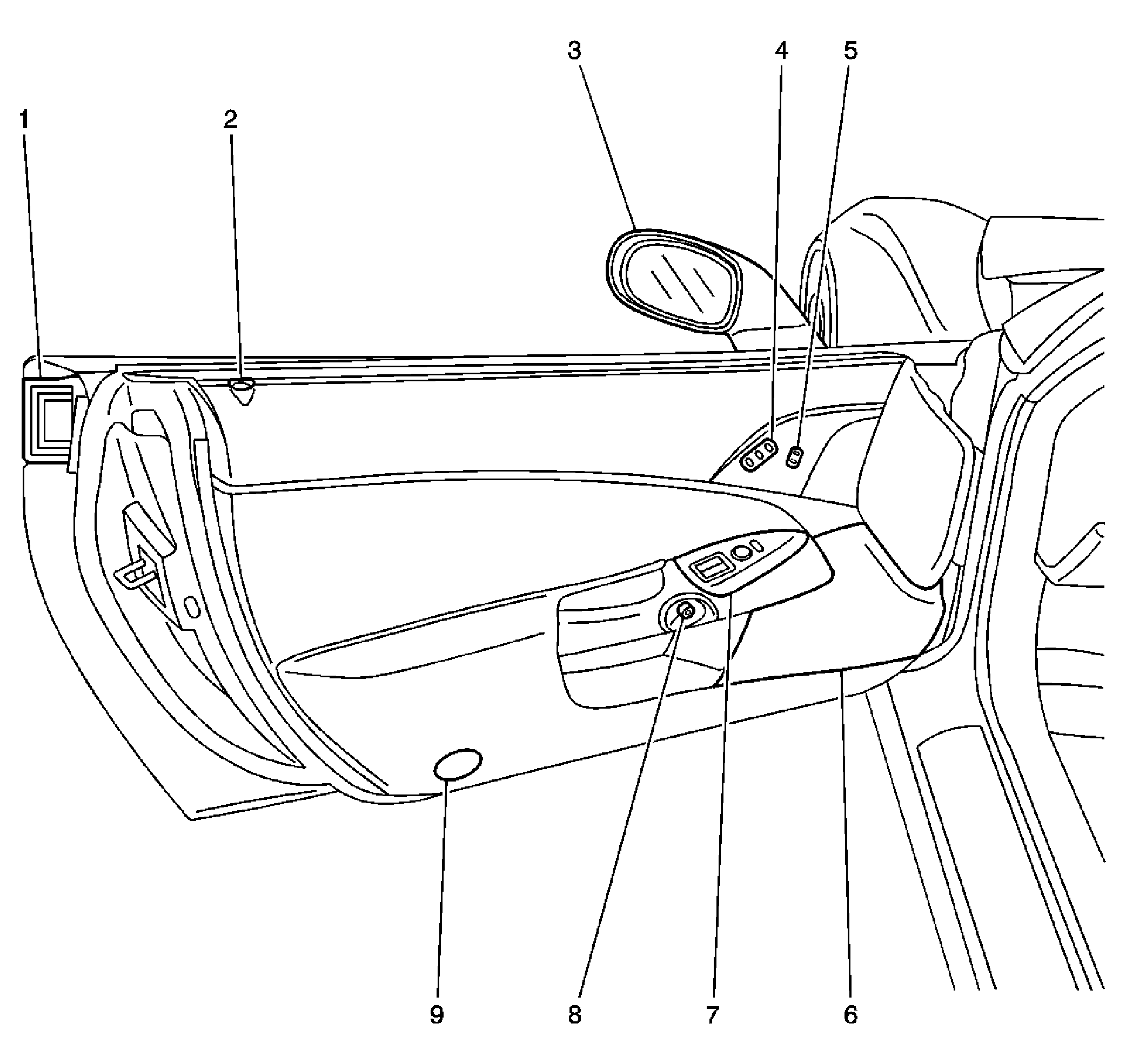

Fig 2: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver Exterior
2	Door Lock Indicator - Driver
3	Outside Rearview Mirror - Driver
4	Memory Seat Switch (AAB)
5	Door Lock Switch - Driver
6	Speaker - Left Front Door Subwoofer
7	Driver Door Switch Assembly (DDSA)
8	Door Handle Switch - Driver Interior
9	Door Reflector (if equipped)

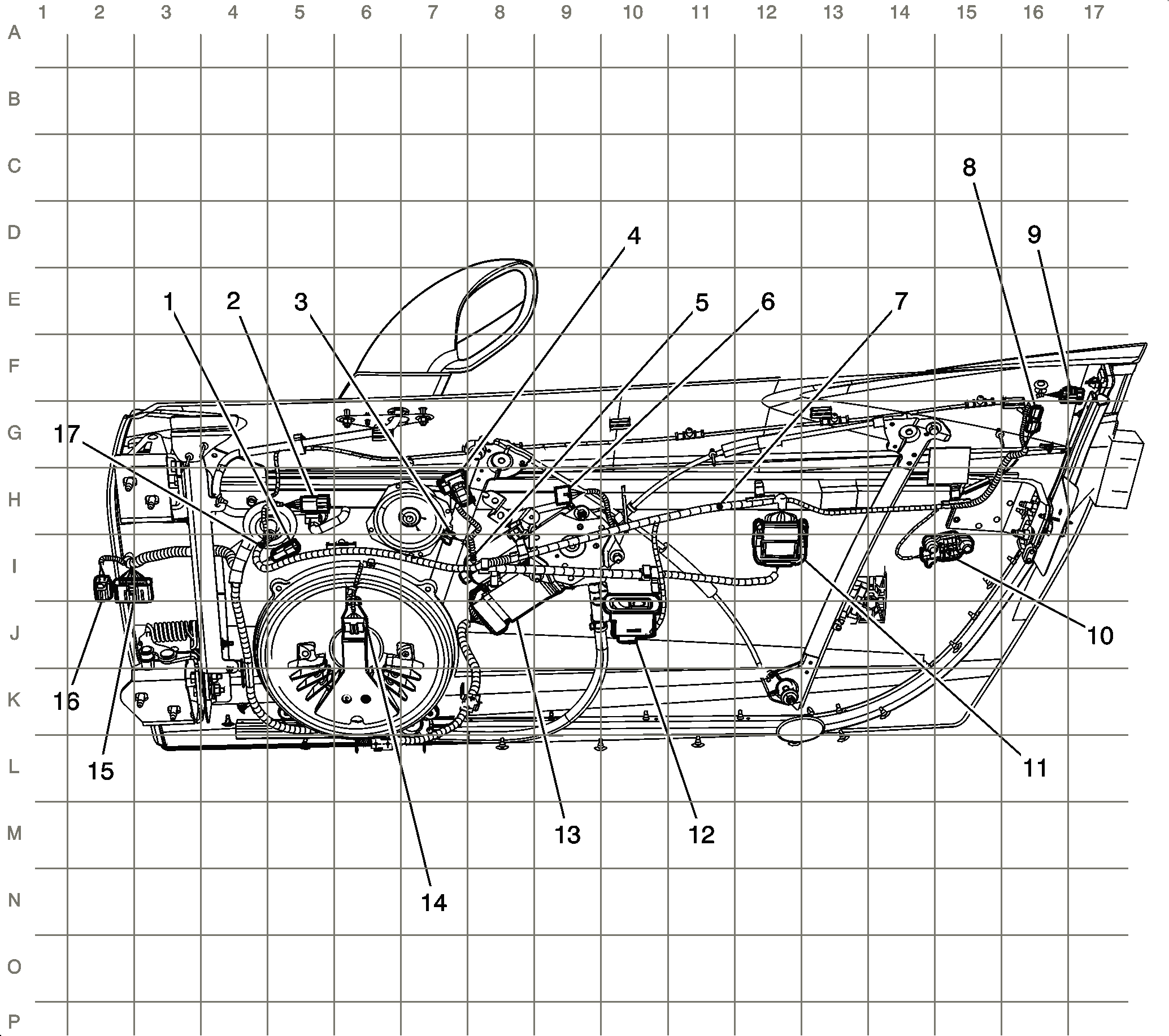

Fig 3: Identifying Driver Door Internal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver Exterior
2	Door Lock Indicator - Driver
3	J579
4	J559
5	Memory Seat Switch
6	Door Lock Switch - Driver
7	Speaker - Left Front Door Tweeter
8	Outside Rearview Mirror - Driver X1
9	J539
10	Outside Rearview Mirror - Driver X2
11	X503
12	X501
13	Speaker - Bose
14	Driver Door Module (DDM)
15	Driver Door Switch Assembly (DDSA)
16	Door Handle Switch - Driver Interior
17	X555
18	Inflatable Restraint Side Impact Sensor - Left (AJ7)

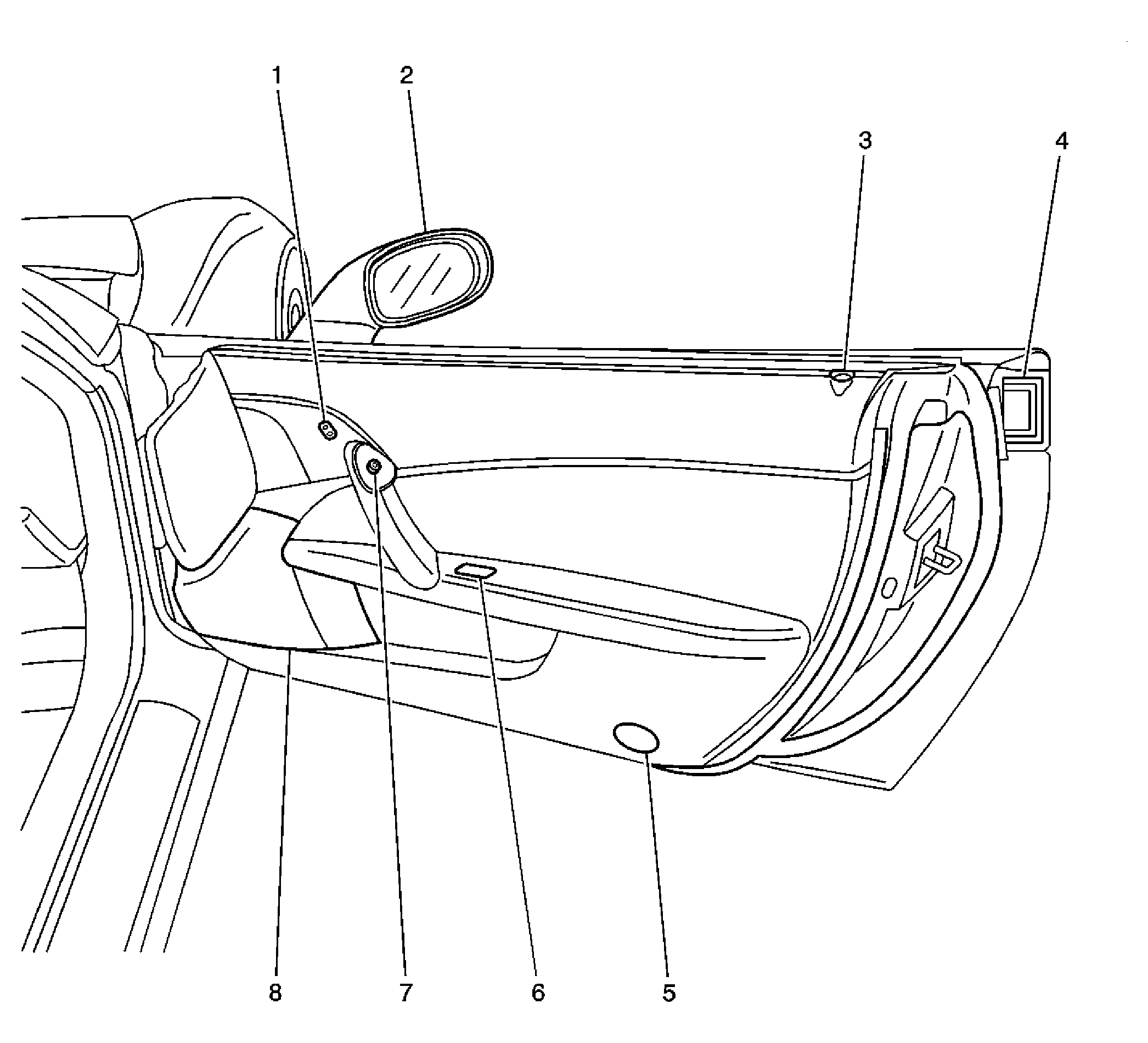

Fig 4: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Passenger
2	Outside Rearview Mirror - Passenger
3	Door Lock Indicator - Passenger
4	Door Handle Switch - Passenger Exterior
5	Door Reflector
6	Window Switch - Front Passenger
7	Door Handle Switch - Passenger Interior
8	Speaker - Right Front Door Subwoofer

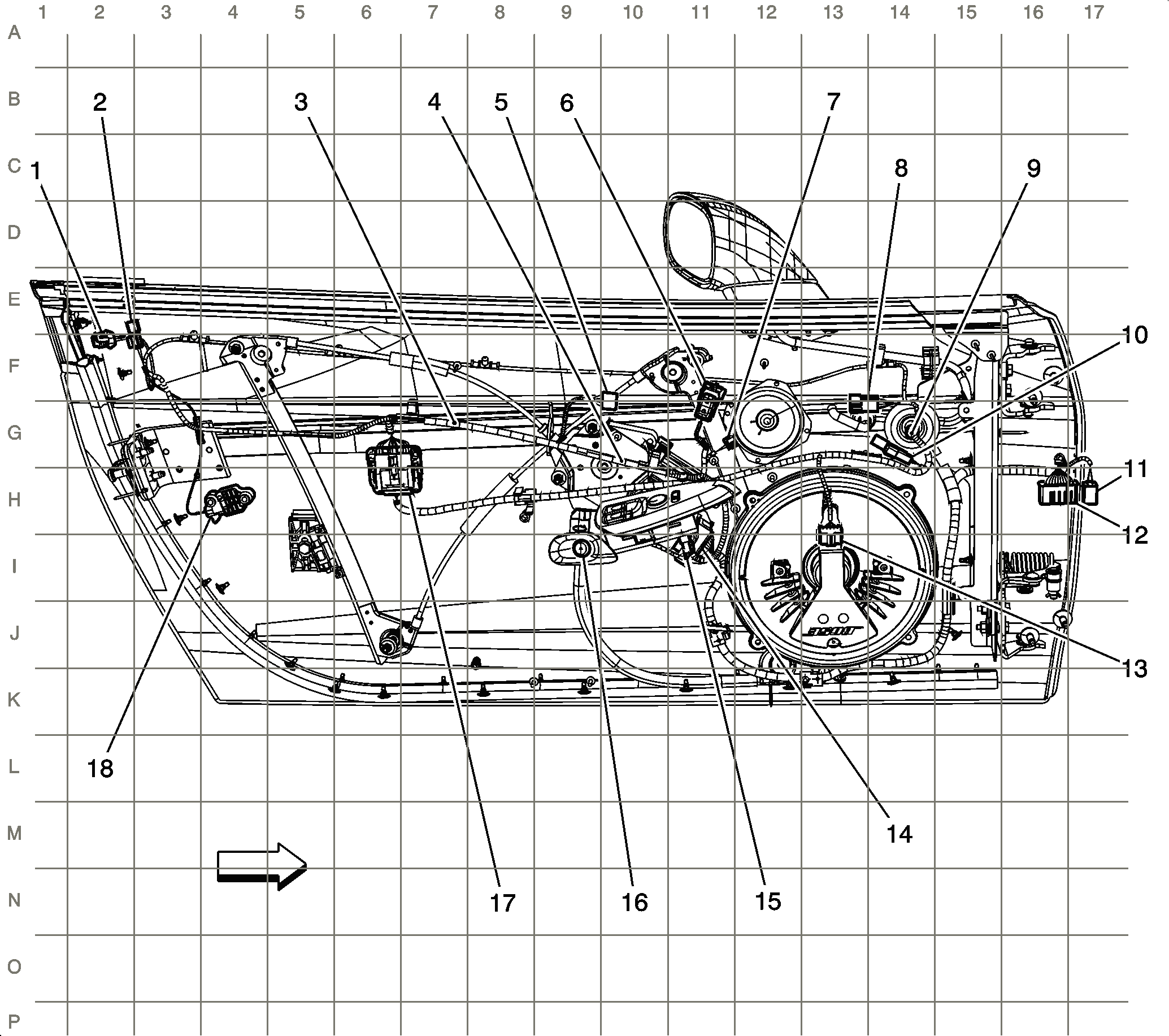

Fig 5: Identifying Inner Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger X2
2	Outside Rearview Mirror - Passenger X1
3	Speaker - Right Front Door Tweeter
4	Door Lock Switch - Passenger
5	J680
6	Door Handle Switch - Passenger Interior
7	J660
8	Door Lock Indicator - Passenger
9	Door Handle Switch - Passenger Exterior
10	Inflatable Restraint Side Impact Sensor - Right (AJ7)
11	X666
12	Window Switch - Front Passenger
13	Front Passenger Door Module (FPDM)
14	Speaker - Bose
15	X600
16	X602 (U32)
17	J640

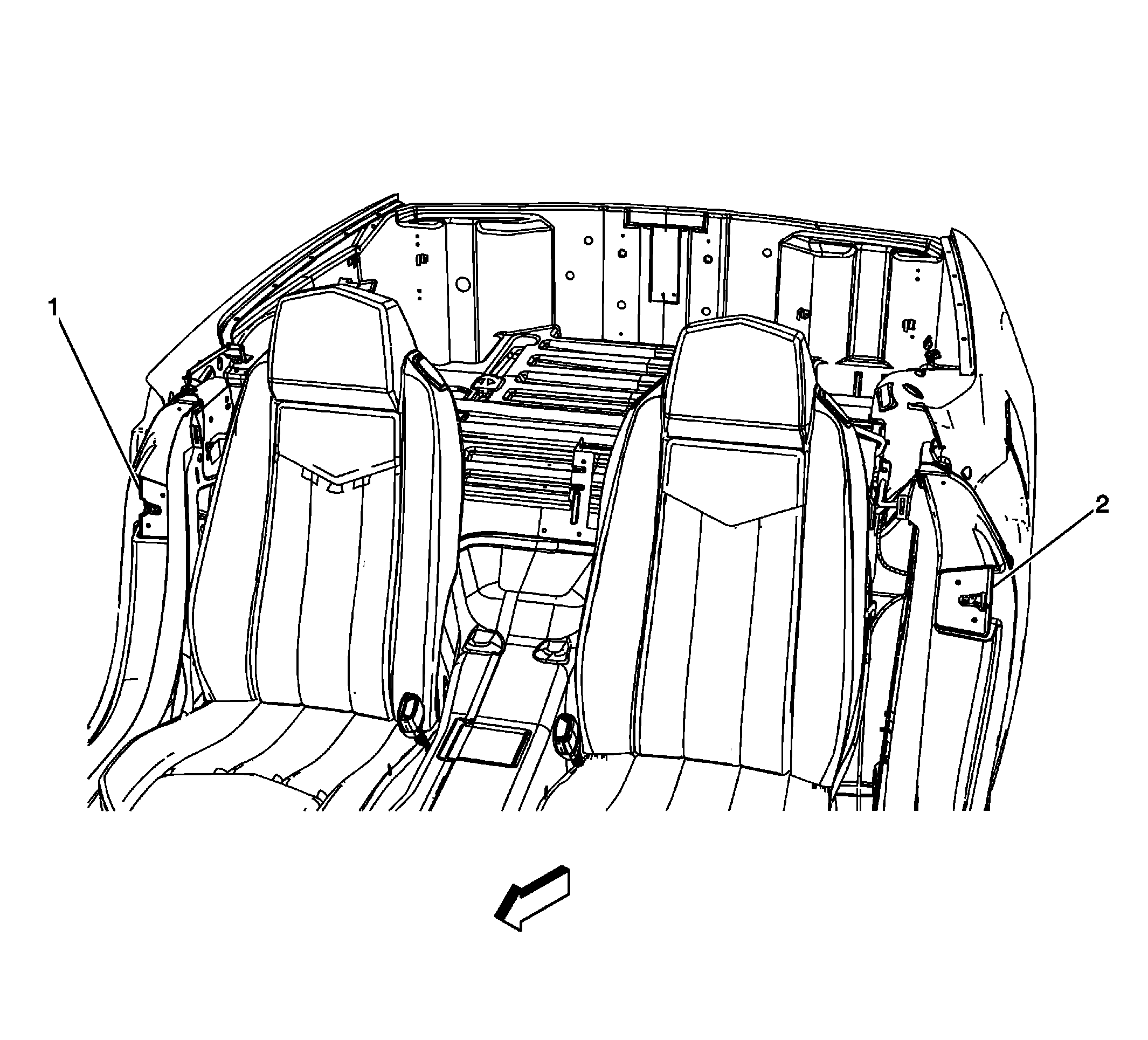

Fig 6: Door Latches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Front Passenger
2	Door Latch - Driver
