Turn Signal Lamp - Left Front (T90)

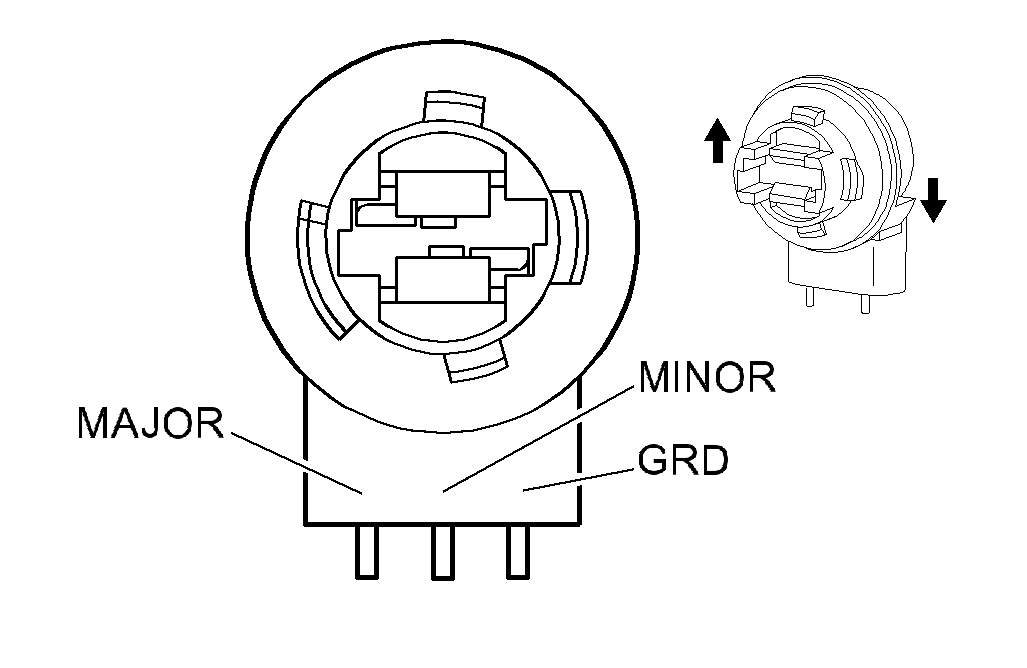

Fig 1: Turn Signal Lamp - LF (T90) Connector End View
GM1631900Courtesy of GENERAL MOTORS CORP.
Turn Signal Lamp - Left Front (T90)

Pin Wire Circuit Function
GRD 0.5 BK 1350 Ground
MINOR - - Not Available
MAJOR 0.5 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
Connector Part Information
  • OEM: 15450288
  • Service: See Catalog
  • Description: 2-Way F Low-Profile Socket Assembly, Single Filament (BK)
Terminal Part Information
  • Terminal/Tray: Service With Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
