Tail/Stop Lamp - Left (T79)

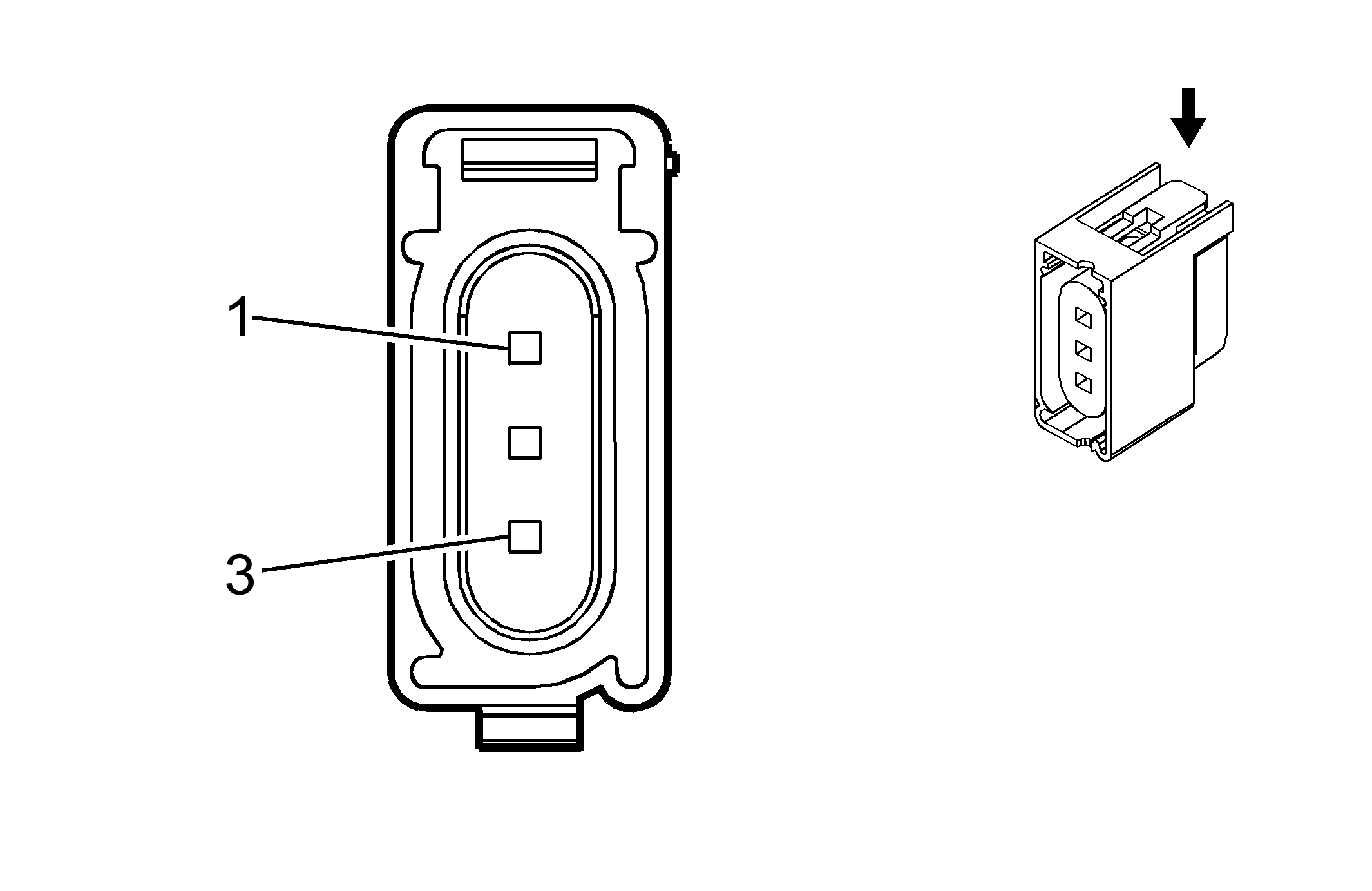

Fig 1: Tail/Stop Lamp - Left (T79) Connector End View
GM1639195Courtesy of GENERAL MOTORS CORP.
Tail/Stop Lamp - Left (T79)

Pin Wire Circuit Function
1 0.8 BK 750 Ground
2 0.5 BN 9 Park Lamp Supply Voltage
3 0.8 L-BU 20 Stop Lamp Supply Voltage
Connector Part Information
  • OEM: ZFJ-00703-UA
  • Service: See Catalog
  • Description: 3-Way F Axial 3-Wire Connector Assembly (BN)
Terminal Part Information
  • Terminal/Tray: 7116-4103-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
