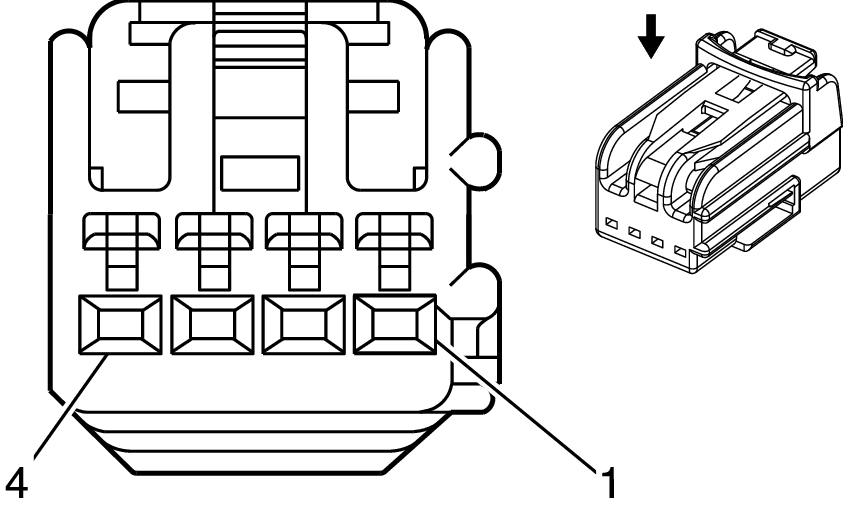

Suspension Control Switch
Courtesy of GENERAL MOTORS CORP. Suspension Control Switch
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 GY/BK |
1458 |
Instrument Panel Lamps Supply Voltage |
| 2 |
0.35 TN/WH |
1384 |
Selective Ride Control Switch Signal |
| 3 |
0.35 BK |
1550 |
Ground |
| 4 |
- |
- |
Not Used |
Connector Part Information
- OEM: 7283-6386-40
- Service: 88988116
- Description: 4-Way F 0.64 YESC Series, Unsealed (GY)
|
Terminal Part Information
- Terminal/Tray: 7116-4720-02/14
- Core/Insulation Crimp: H/H
- Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
|
