Reverse Lockout Solenoid (MM6/MZ6)

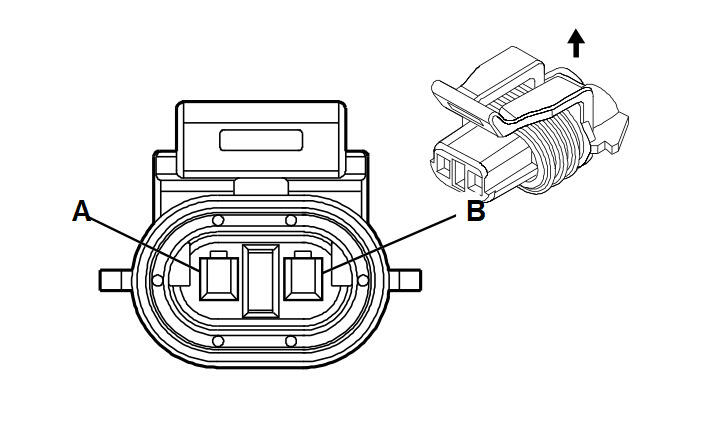

Fig 1: Reverse Lockout Solenoid (MM6/MZ6) Connector End View
GM847209Courtesy of GENERAL MOTORS CORP.
Reverse Lockout Solenoid (MM6/MZ6)

Pin Wire Circuit Function
A 0.5 L-GN 1652 Reverse Lockout Solenoid Control
B 1 RD/WH 2840 Battery Positive Voltage
Connector Part Information
  • OEM: 12052646
  • Service: 12101857
  • Description: 2-Way F Metri-Pack 150 Series Sealed (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
