Rear Compartment Lid Key Switch (Convertible/Z06)

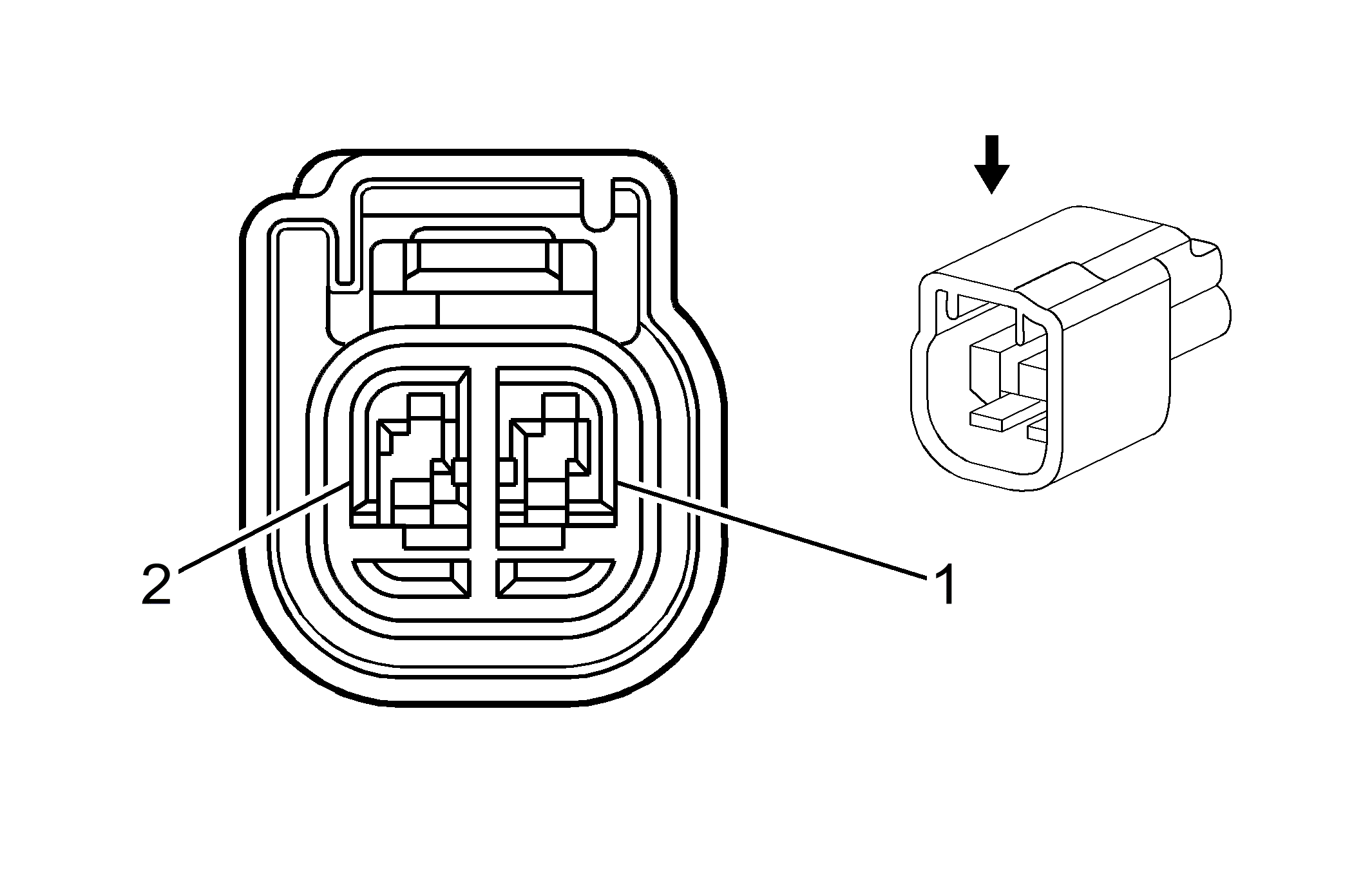

Fig 1: Rear Compartment Lid Key Switch (Convertible/Z06) Connector End View
GM1581759Courtesy of GENERAL MOTORS CORP.
Rear Compartment Lid Key Switch (Convertible/Z06)

Pin Wire Circuit Function
1 0.35 TN 305 Trunk Key Switch Signal
2 0.35 BK 1150 Ground
Connector Part Information
  • OEM: E-4014
  • Service: 88988055
  • Description: 2-Way F Sleeve Assembly Wire Connector (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
