Luggage Barrier Switch (CM7)

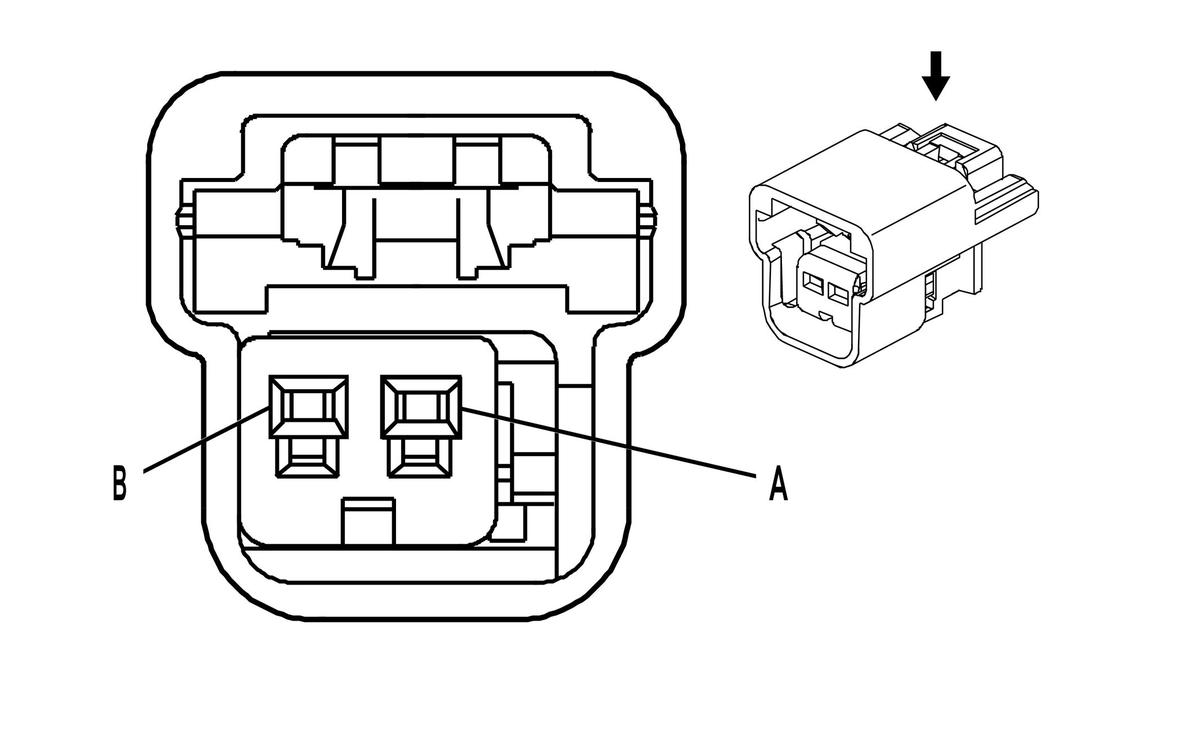

Fig 1: Luggage Barrier Switch (CM7) Connector End View
GM1385747Courtesy of GENERAL MOTORS CORP.
Luggage Barrier Switch (CM7)

Pin Wire Circuit Function
A 0.35 D-GN 1399 Accessory Voltage
B 0.35 BN 5745 Luggage Barrier Limit Switch Signal
Connector Part Information
  • OEM: 15332129
  • Service: 15306425
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
