Backup Lamp - Left

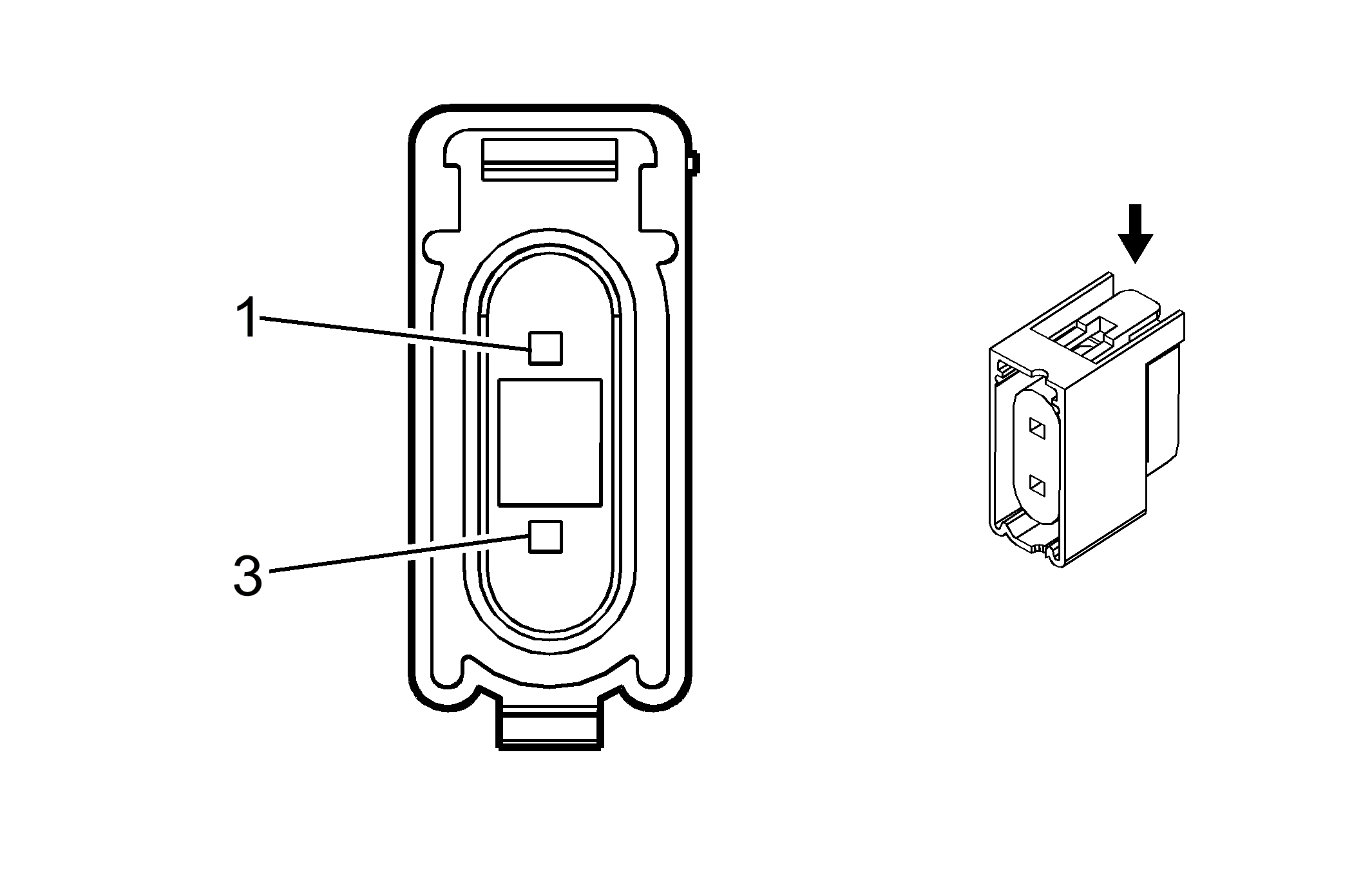

Fig 1: Backup Lamp - Left Connector End View
GM1635370Courtesy of GENERAL MOTORS CORP.
Backup Lamp - Left

Pin Wire Circuit Function
1 0.5 BK 750 Ground
2 - - Not Available
3 0.5 L-GN 24 Backup Lamp Supply Voltage
Connector Part Information
  • OEM: ZFJ-00702-UA
  • Service: See Catalog
  • Description: 3-Way F Axial 2-Wire Connector Assembly (GN)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
