Fuel Injector Replacement

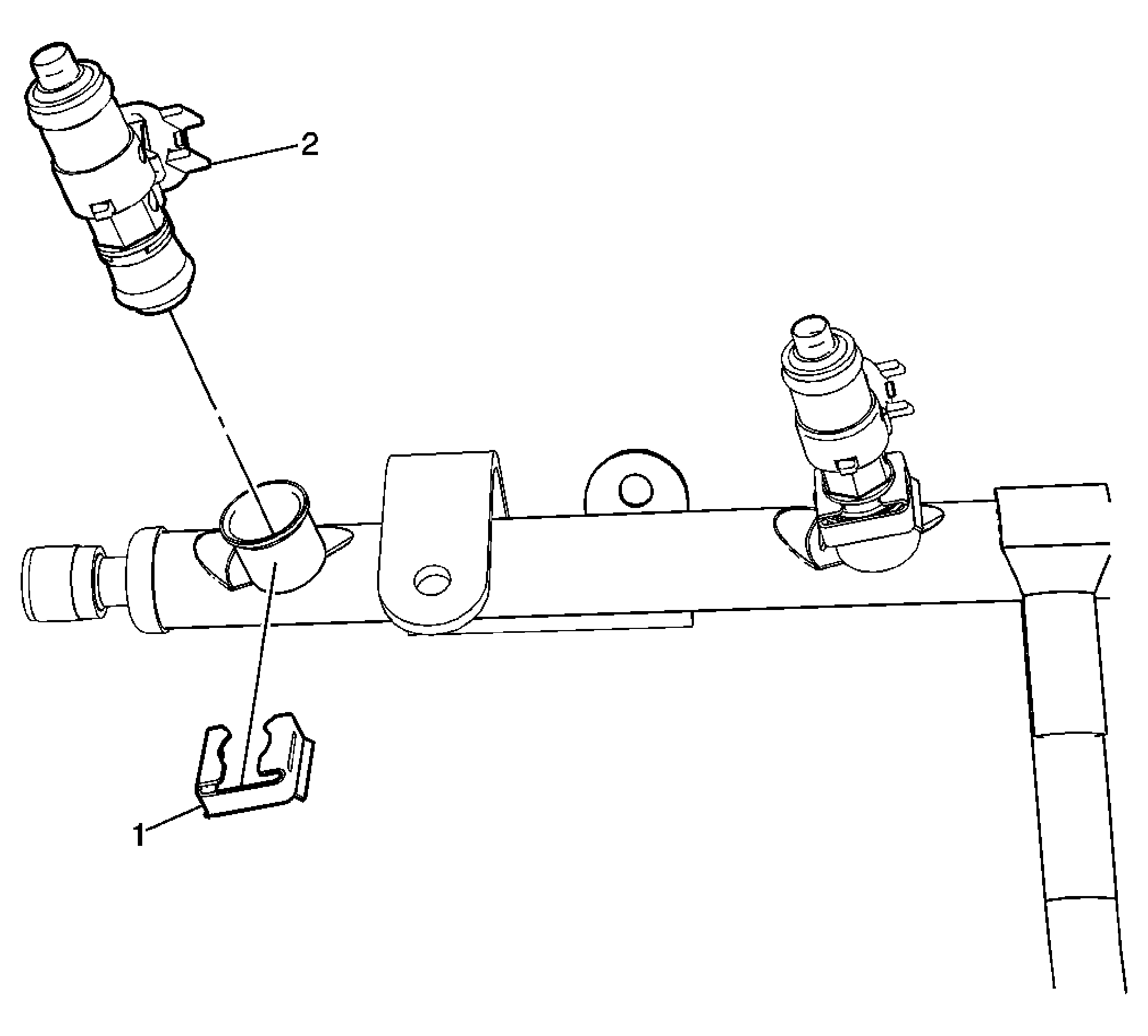

Fig 1: Fuel Injector Replacement
GM1969970Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1 Fuel Injector Retainer
Procedure:
Release the retainer with a flat-bladed tool.
2 Fuel Injector
