Antilock Brake System Schematics

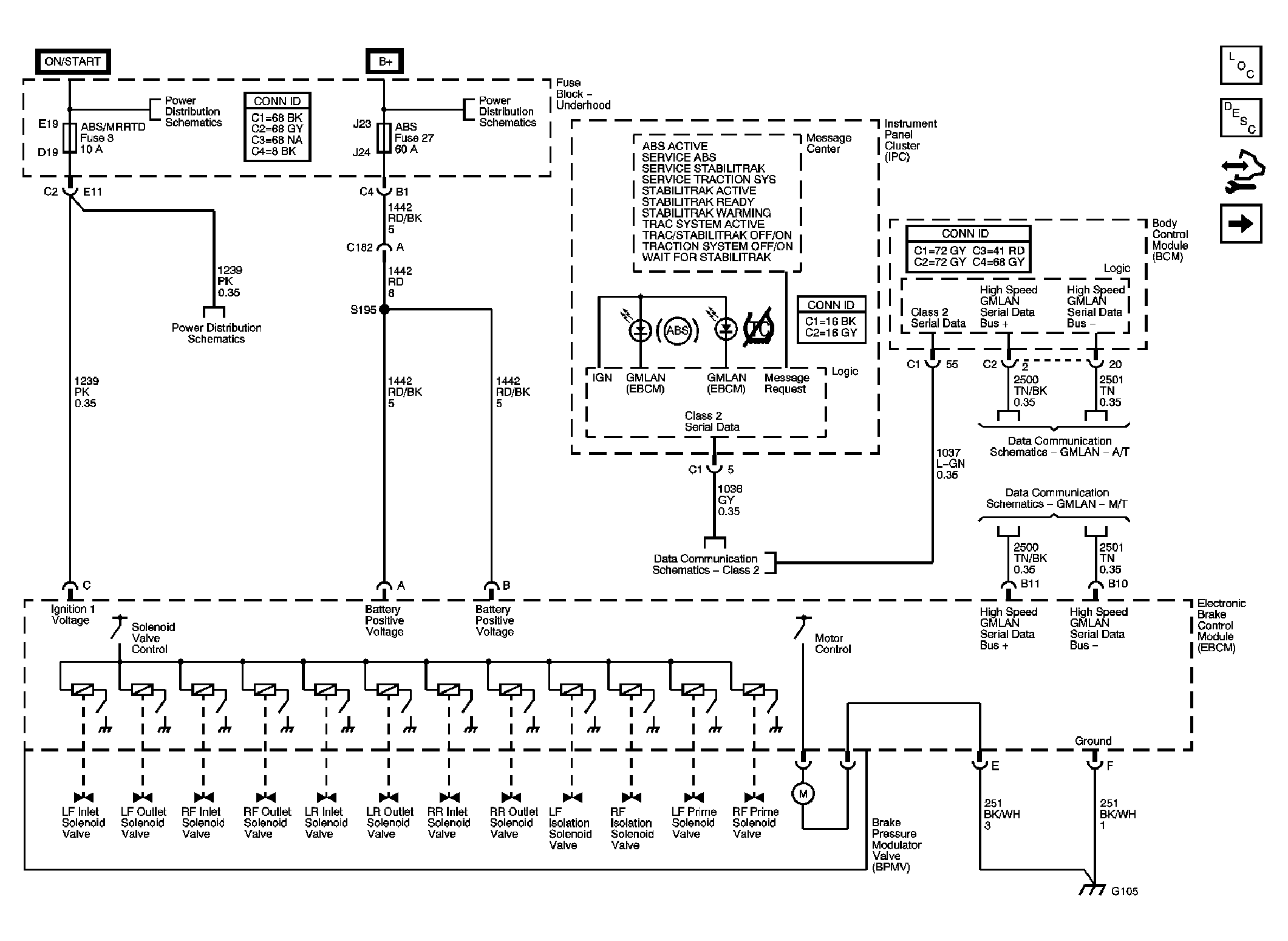

Fig 1: Power, Ground, Indicators, & Messages Schematic

Courtesy of GENERAL MOTORS CORP.

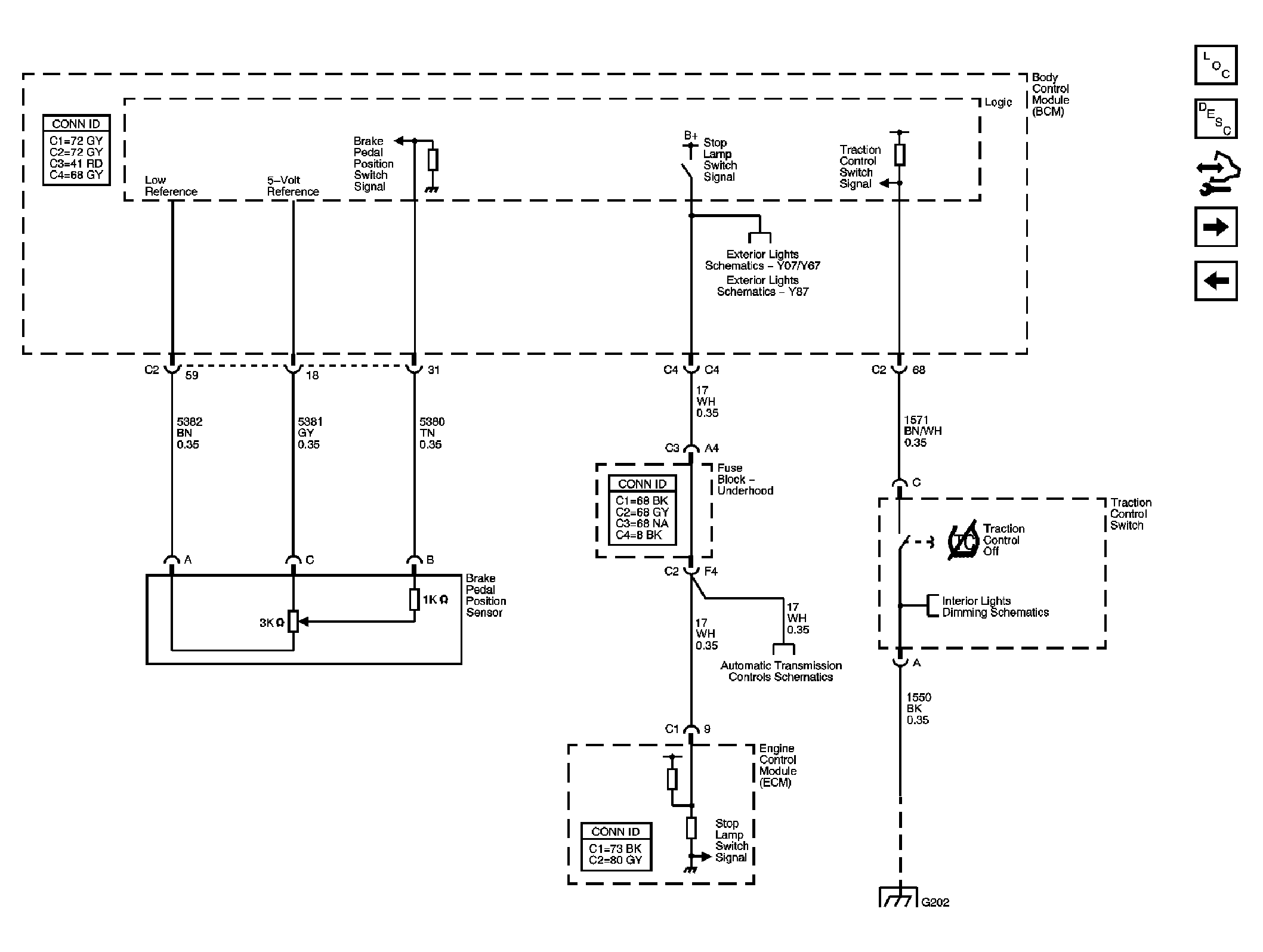

Fig 2: Brake Pedal Position Sensor, Traction Control Switch, & Stop Lamp Switch Signal Schematic

Courtesy of GENERAL MOTORS CORP.

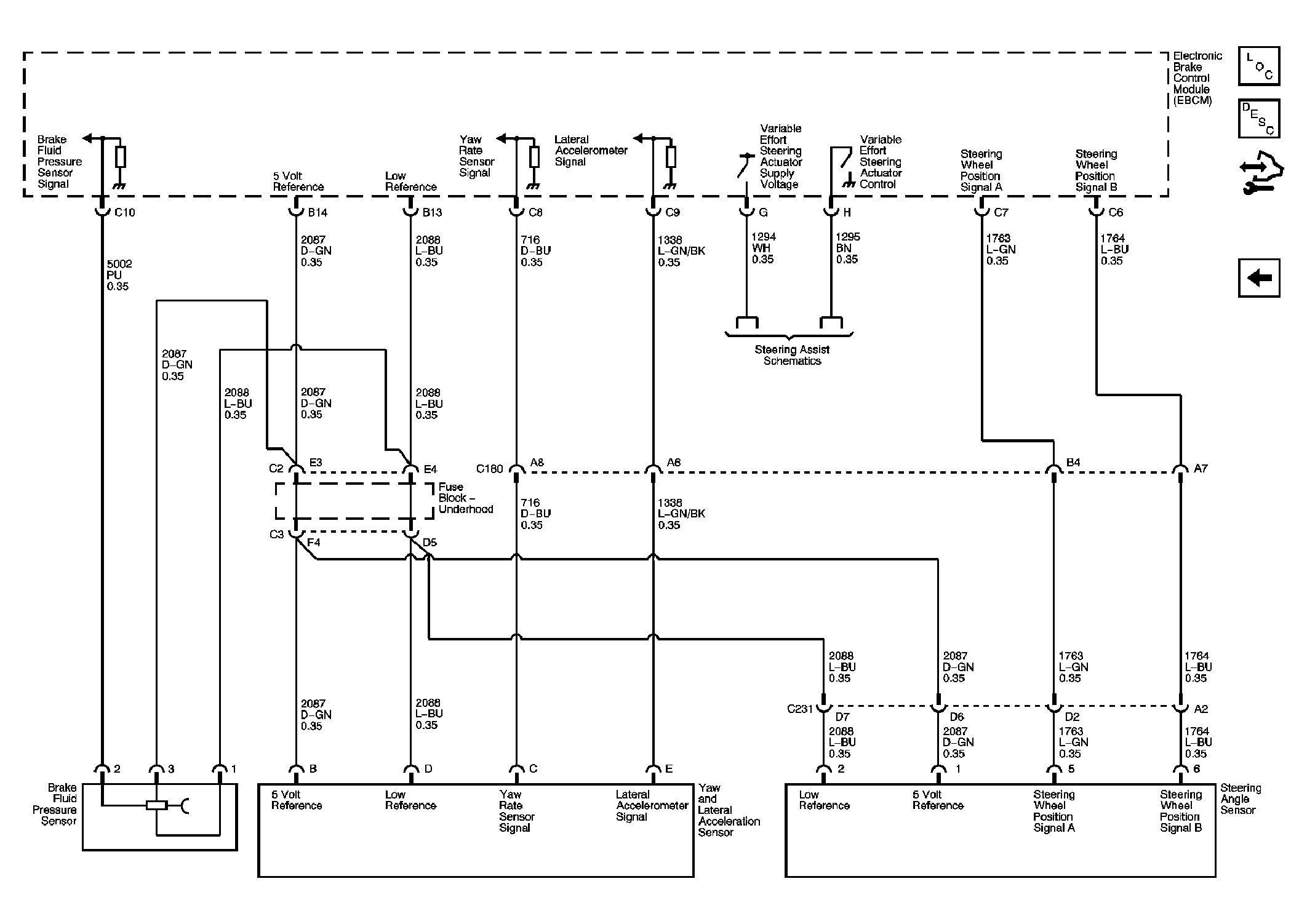

Fig 3: Stability Controls Sensors (JL4) Schematic

Courtesy of GENERAL MOTORS CORP.

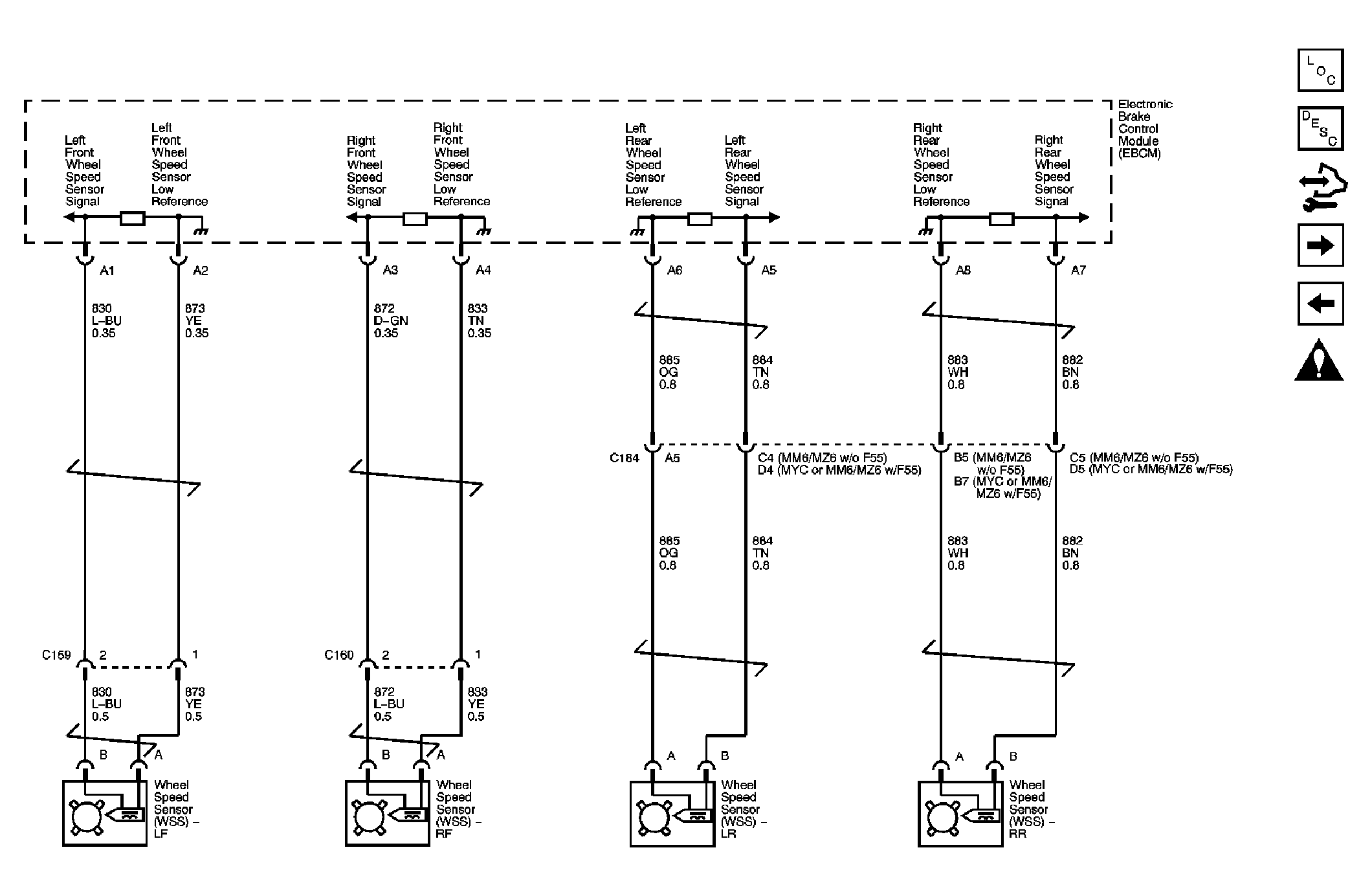

Fig 4: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
