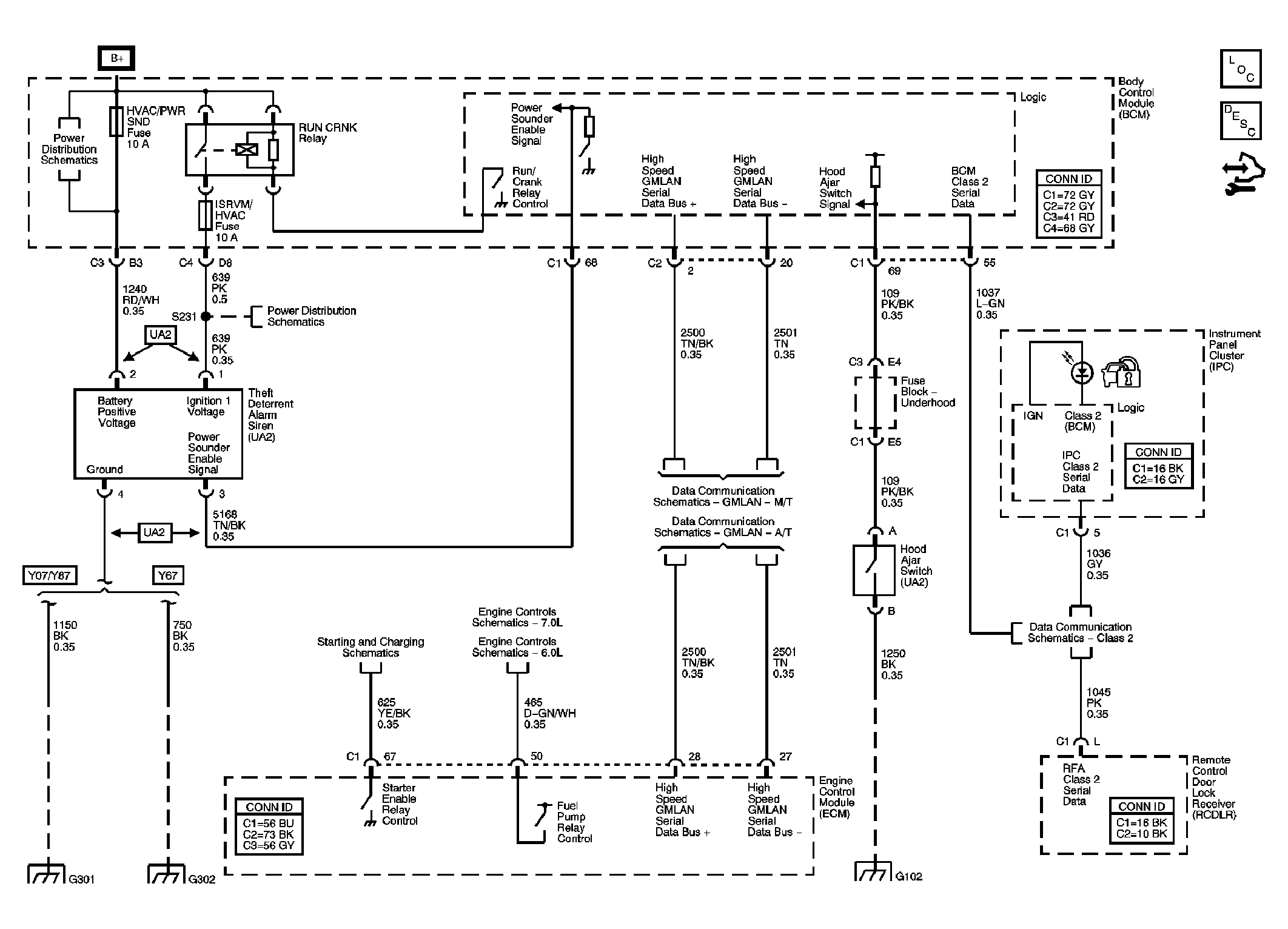

Home >> Chevrolet >> 2008 >> Corvette Base, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic and Routing Diagrams >> Immobilizer Schematics
