Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

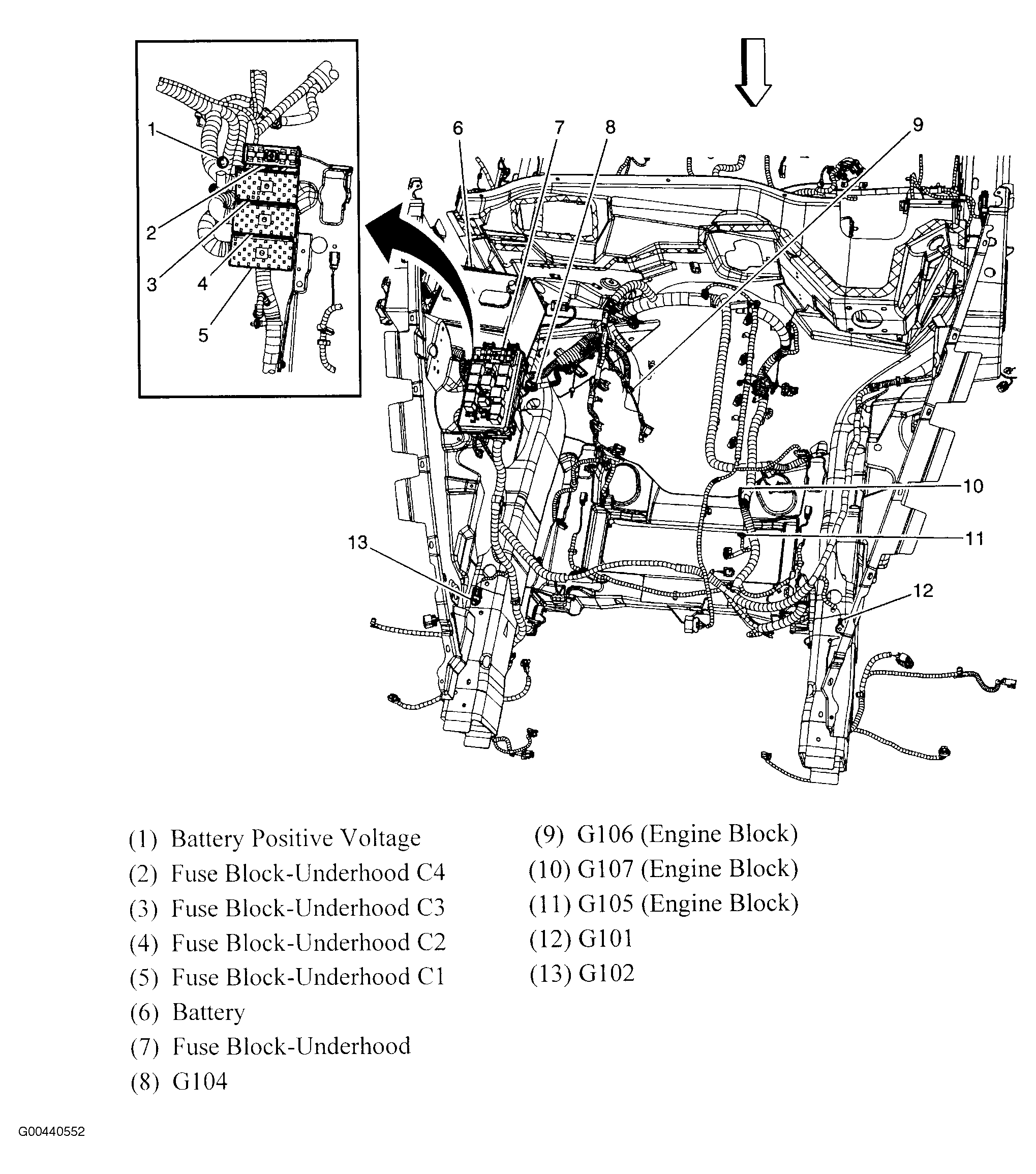

| G101 (3) | On left frame rail. See Figure. |
| G102 (17) | On top of right frame rail, ground for SP102. See Figure. |

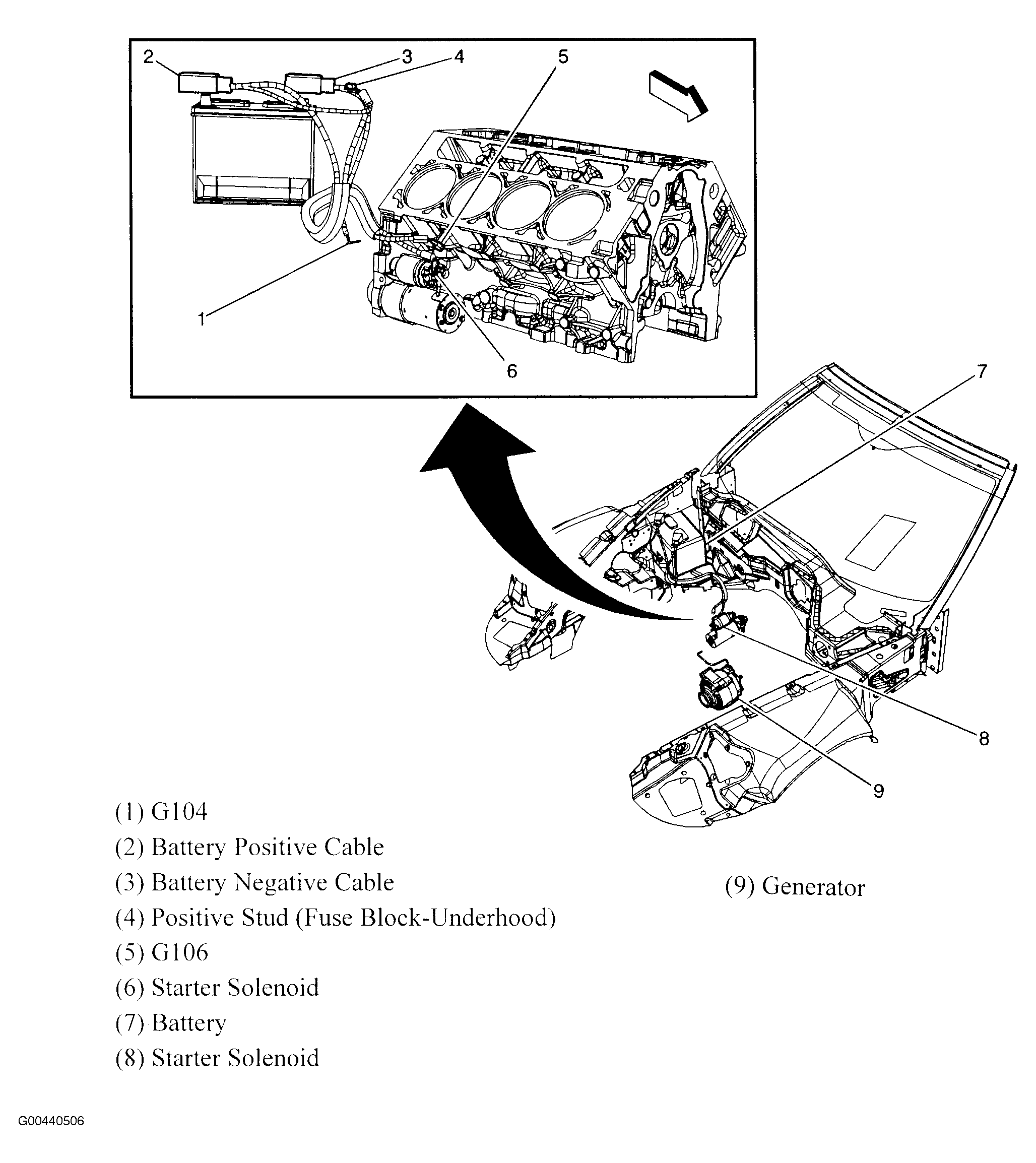

| G104 | On right frame rail, below battery tray. See Figure. |
| G105 | On front left side of engine, above generator. See Figure. |
| G106 | On right rear side of engine, above starter solenoid. See Figure. |
| G107 | Left side of engine, middle of block. See Figure. |
| G201 | At base of left "A" pillar. See Figure. |

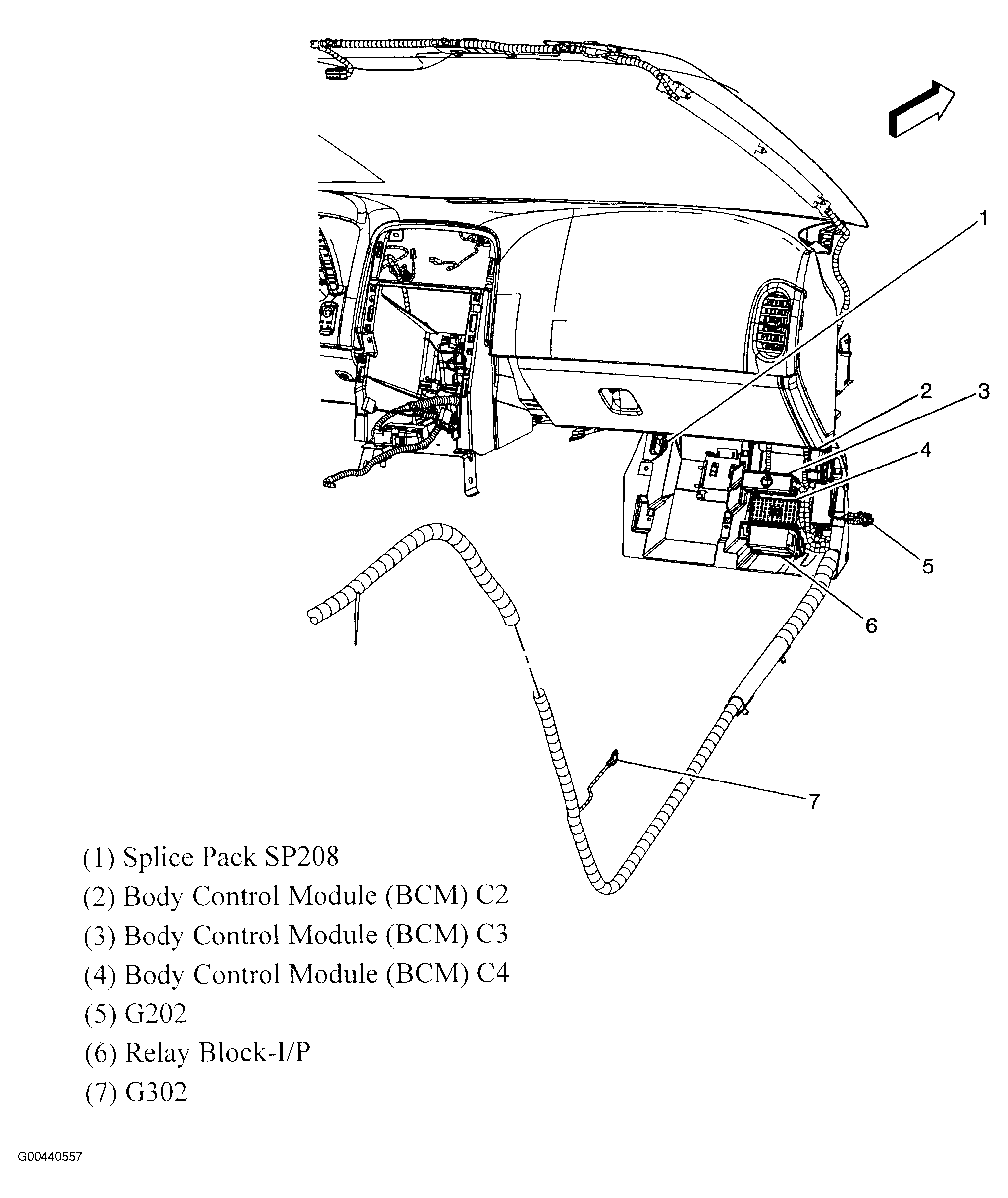

| G202 | At base of right. See Figure. |
| G301 | At left "B" pillar, behind trim panel. See Figure. |
| G302 | At right "B" pillar, behind trim panel. See Figure. |
| G303 | Right "B" pillar. |

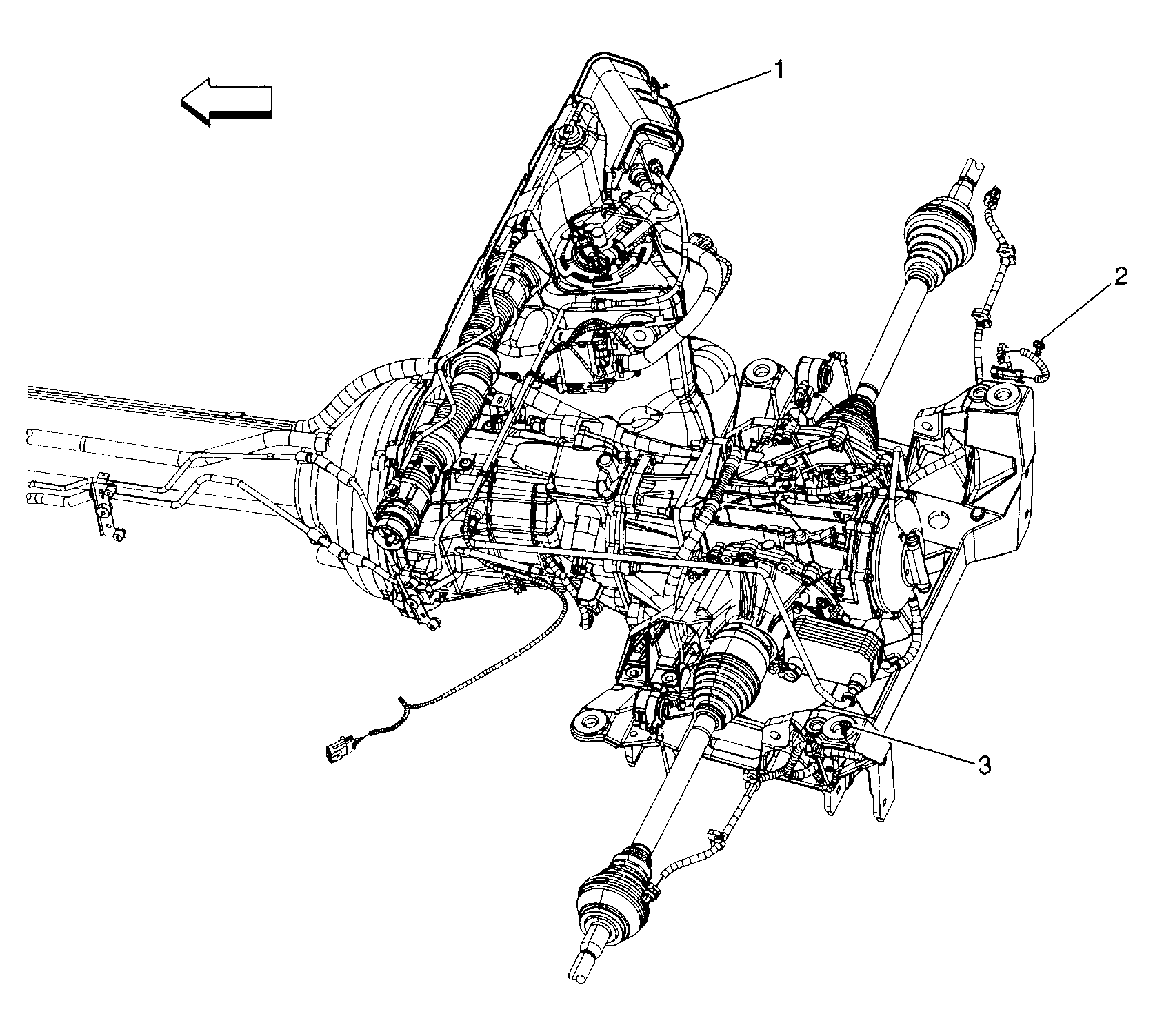

| G401 (3) | At rear of vehicle, on inner side of left frame rail. See Figure. |
| G402 (2) | At rear of vehicle, on inner side of right frame rail. See Figure. |
