Installation Procedure

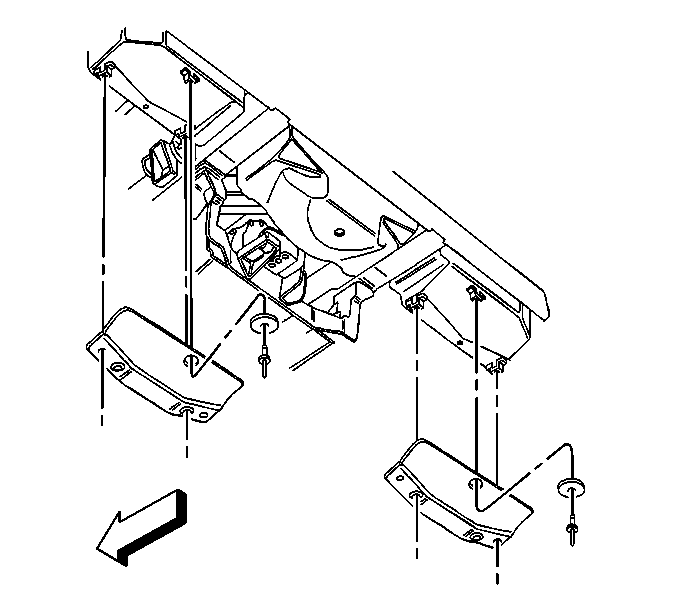

    Fig 1: Left/Right Heat Shield Washers & Shield
    GM677303Courtesy of GENERAL MOTORS CORP.
  1. Install the left or right heat shield and washers.
  2. Install new left or right heat shield rivets.
  3. Install the left or right muffler. Refer to Exhaust Muffler Replacement - Left Side  or Exhaust Muffler Replacement - Right Side .
