Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

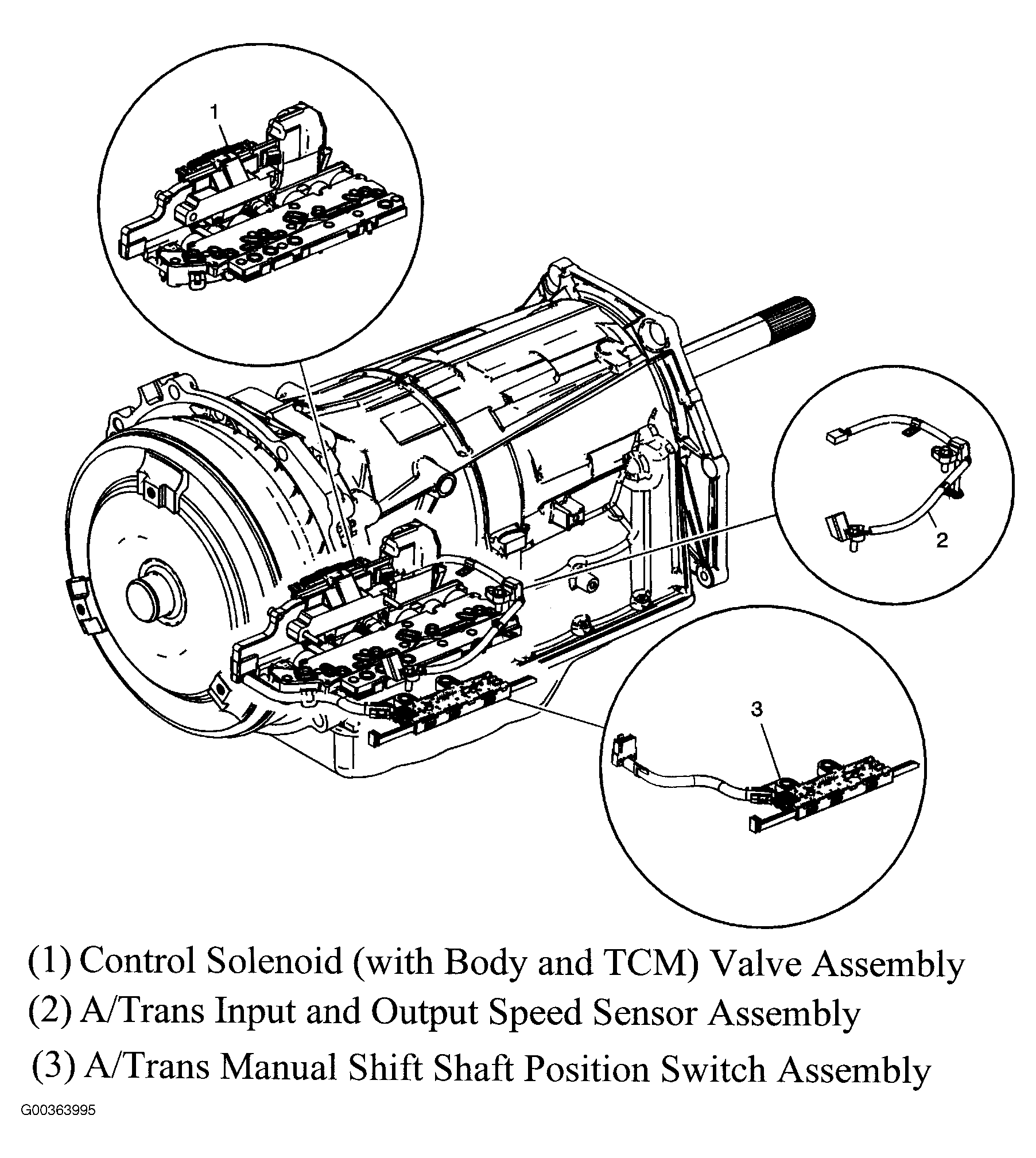

| A/Trans Manual Shift Shaft Position Switch Assembly | In transmission. See Figure. |
| Automatic Transmission Internal Mode Switch (IMS) | Inside the automatic transmission attached to transmission control module (TCM). |
| Backup Lamp Switch 1 | Right side of manual transmission. |
| Backup Lamp Switch 2 | Right side of manual transmission. |
| Brake Fluid Level Switch | In master cylinder reservoir. See Figure. |

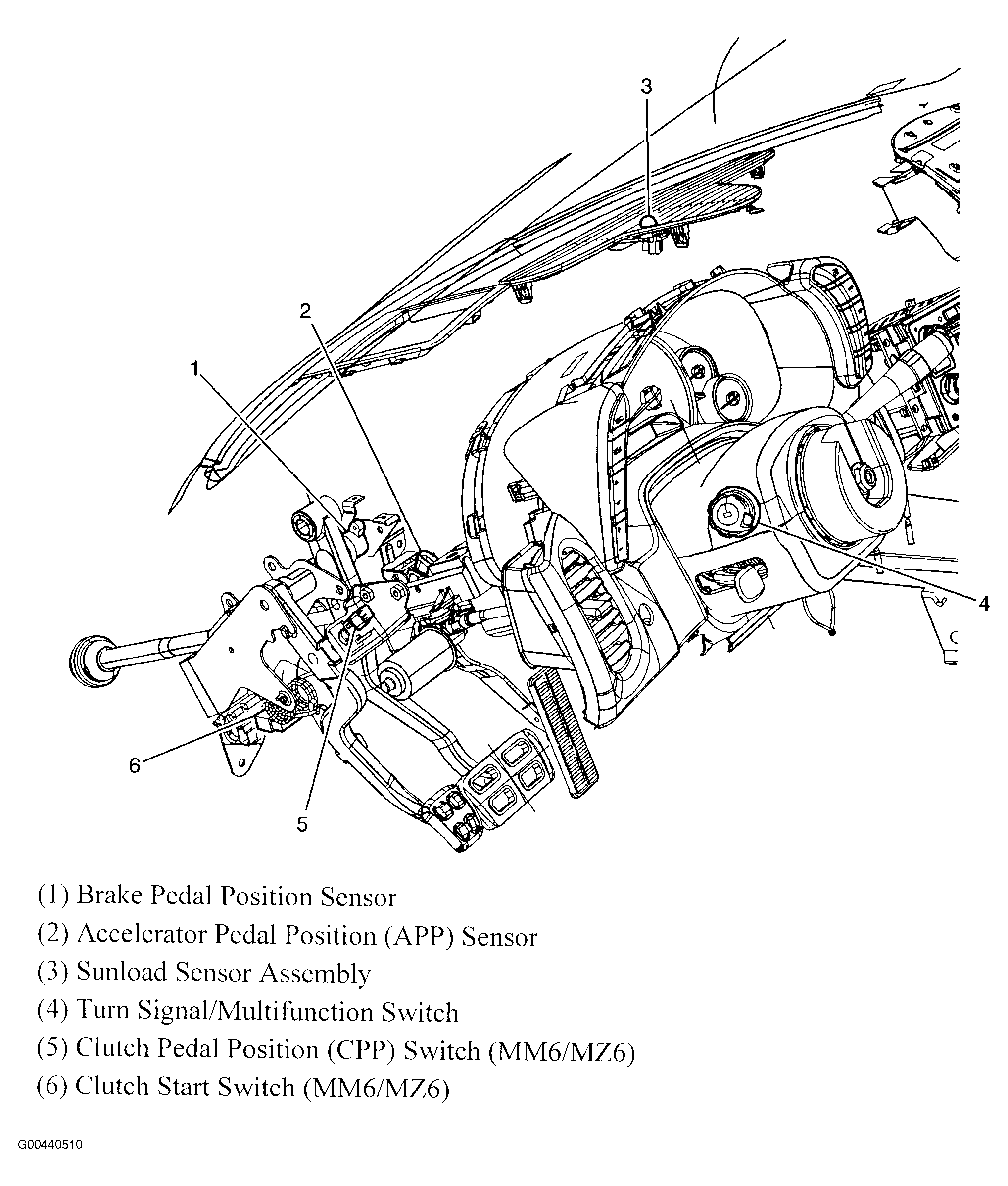

| Clutch Pedal Position Switch (6.2L) | On top of clutch pedal bracket. See Figure. |
| Clutch Pedal Position Switch (7.0L) | On top of clutch pedal bracket. See Figure. |
| Clutch Pedal Start Switch (6.2L) | On toe board, beneath clutch pedal. See Figure. |
| Clutch Pedal Start Switch (7.0L) | On toe board, beneath clutch pedal. See Figure. |
| Door Handle Switch-Driver Exterior | In upper rear of driver door. See Figure. |
| Door Handle Switch-Driver Interior | In center of driver door panel. See Figure. |
| Door Handle Switch-Passenger Exterior | In upper rear of passenger door. See Figure. |
| Door Handle Switch-Passenger Interior | In center of passenger door panel. See Figure. |
| Folding Top Closed Position Switch | Under center of folding top cover. |
| Folding Top Control Switch | Left side of dash. See Figure. |

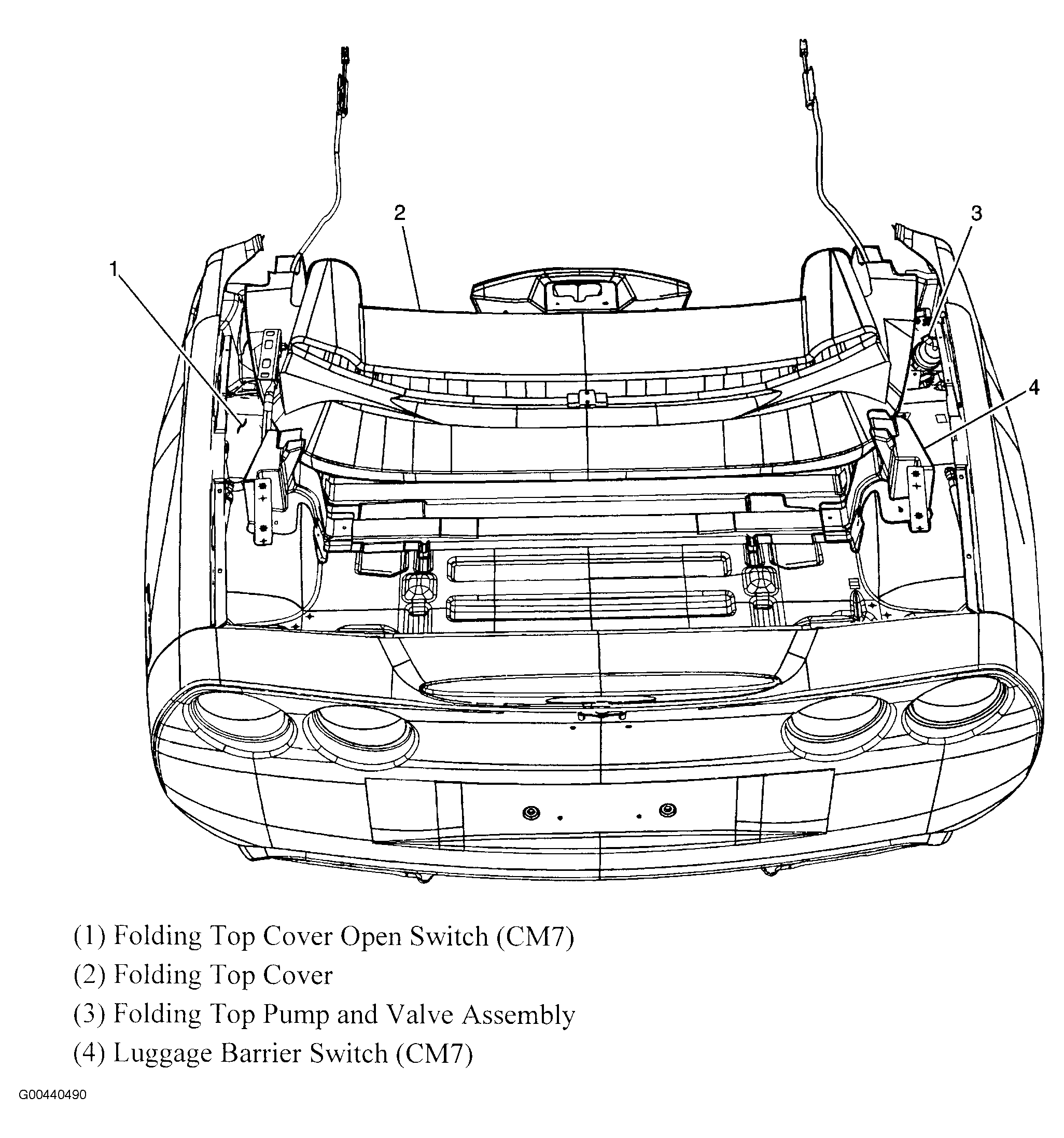

| Folding Top Cover Open Switch | Under center of folding top cover on pulldown actuator. See Figure. |
| Folding Top Front Latch Switch | In upper windshield frame support. |
| Folding Top Luggage Barrier Switch | Right rear of rear compartment lid, near right hinge. |
| Folding Top 5 Bow Lowered Switch | Under headliner, on folding top hinge. |
| Folding Top 5 Bow Raised Switch | Under headliner, on folding top hinge. |
| Header Latched Switch | Under headliner, mounted on folding top latch. See Figure. |
| Head Up Display Switch | Left side of dash. See Figure. |
| Hood Ajar Switch (2) | Right rear of engine compartment. |
| Inflatable Restraint Seat Position Switch-Left | Mounted on outer seat track of driver seat. See Figure. |
| Inflatable Restraint Seat Position Switch-Right | Mounted on outer seat track of passenger seat. See Figure. |

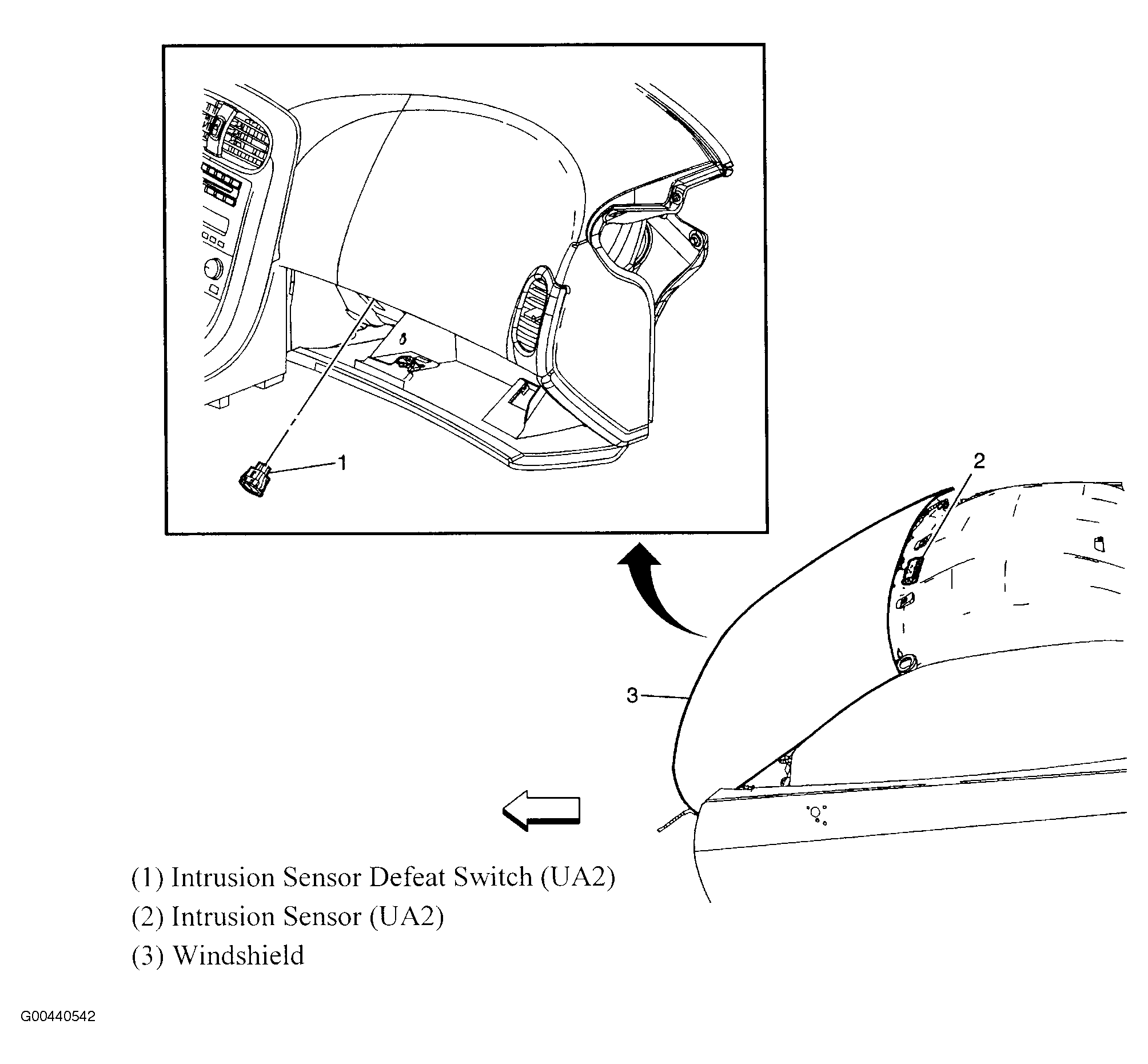

| Intrusion Sensor Defeat Switch | In left side of dash. See Figure. |
| Luggage Barrier Switch | Right rear of rear compartment. See Figure. |
| Park Brake Switch | Lower front of park brake handle. See Figure. |
| Reverse Switch 1 | Right side of manual transmission. |
| Reverse Switch 2 | Right side of manual transmission. |
| Seat Belt Switch-Driver | In driver's seat belt buckle assembly. See Figure. |
| Seat Belt Switch-Passenger | In passenger's seat belt buckle assembly. See Figure. |
| Seat Lumbar Switch (Driver) | Front left side of driver seat. |
| Seat Lumbar Switch (Passenger) | Front left side of passenger seat. |
| Steering Column Telescope Switch | Right side of steering column. |

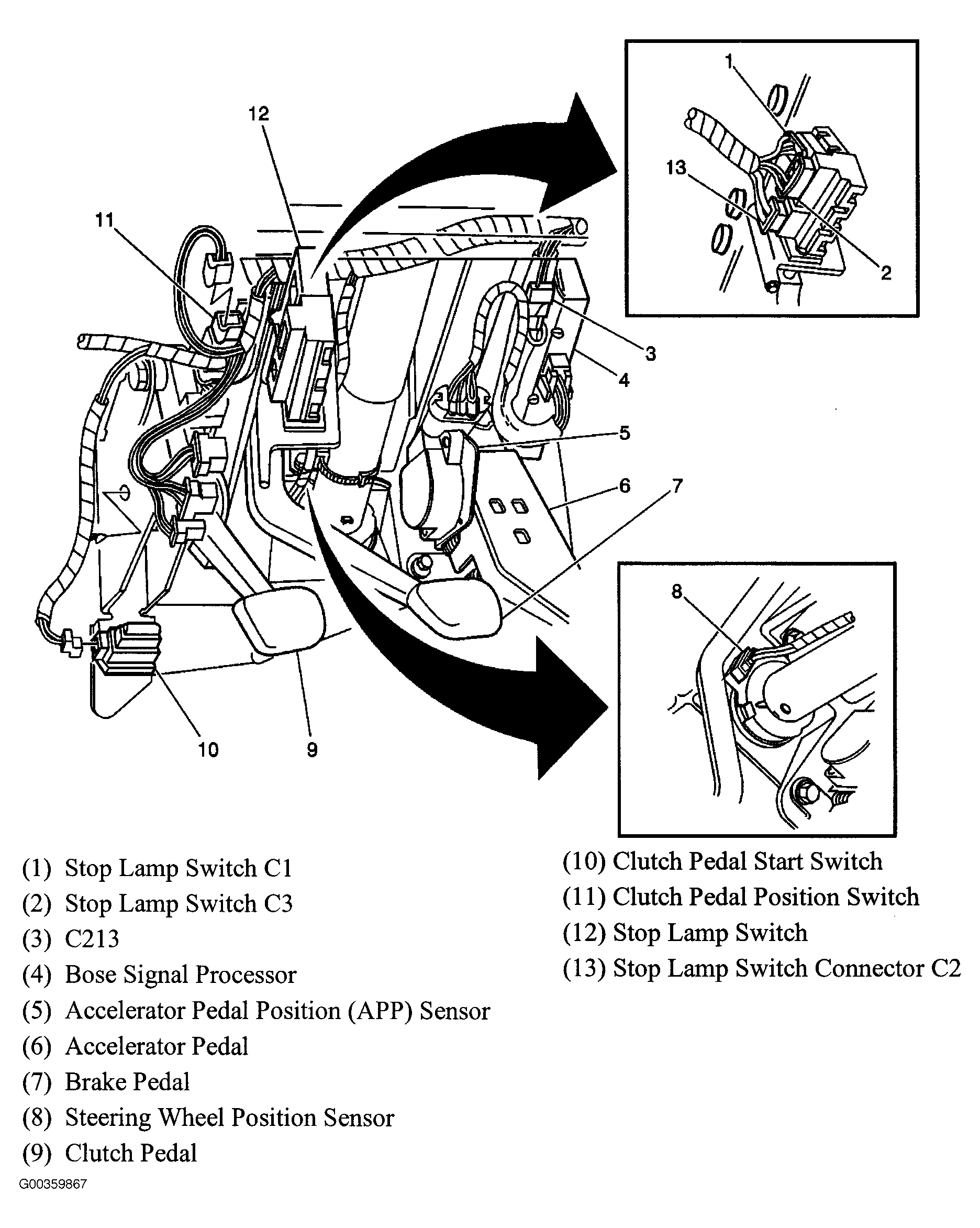

| Stop Lamp Switch | On top of brake pedal support. See Figure. |

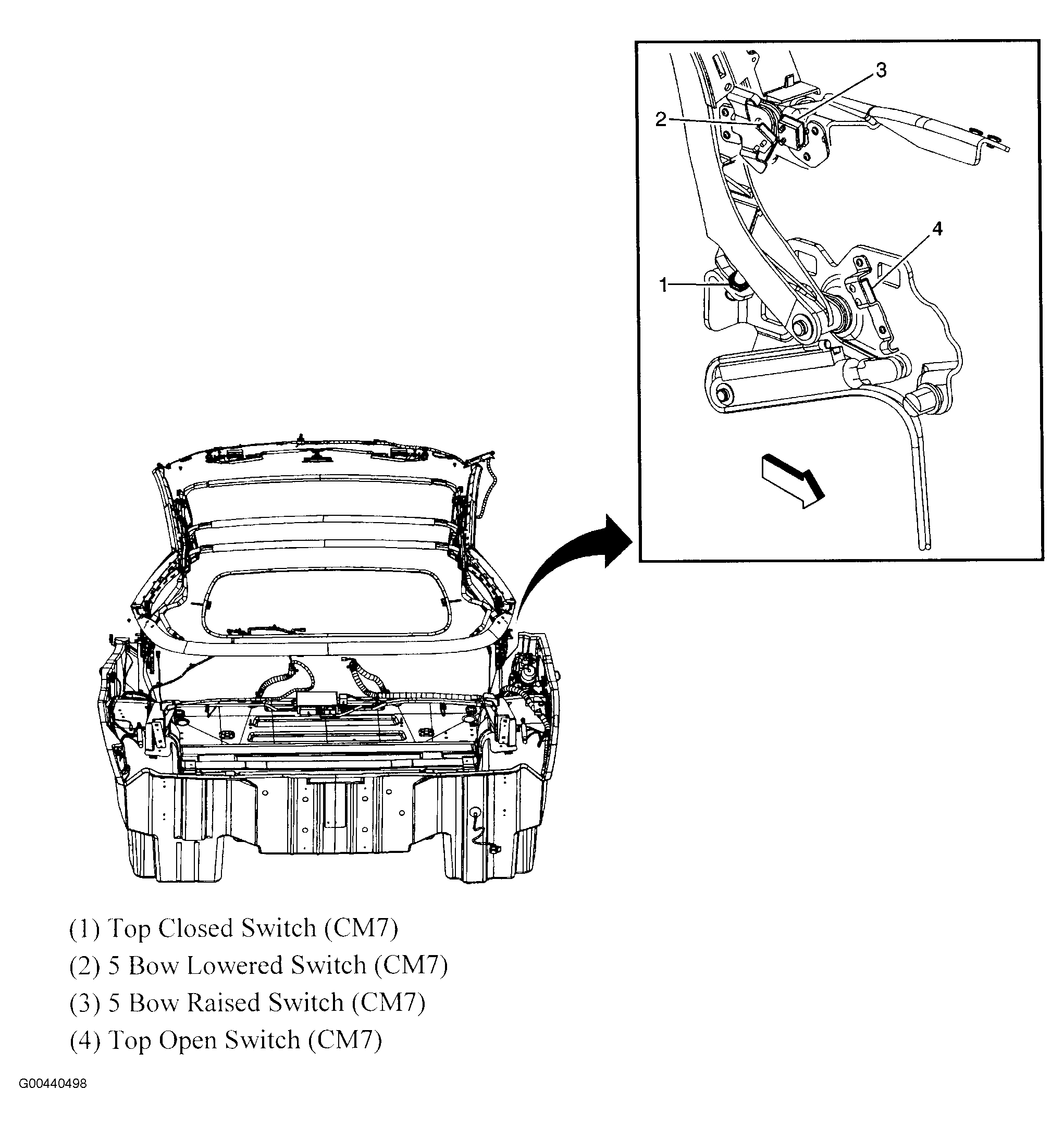

| Top Closed Switch | Upper right of passenger seat back. See Figure. |
| Top Open Switch | Upper right of passenger seat back. See Figure. |
| Windshield Washer Fluid Level Switch | At bottom of washer fluid reservoir. See Figure. |
| 5 Bow Lowered Switch | Under headliner, neat top hydraulic pump. See Figure. |
| 5 Bow Raised Switch | Under headliner, near top hydraulic pump. See Figure. |
