Removal Procedure

  1. Remove the drive belt. Refer to Drive Belt Replacement - Accessory .
    2. CAUTION: Refer to Battery Disconnect Caution .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (6.0L)  or Battery Negative Cable Disconnection and Connection (7.0L) .

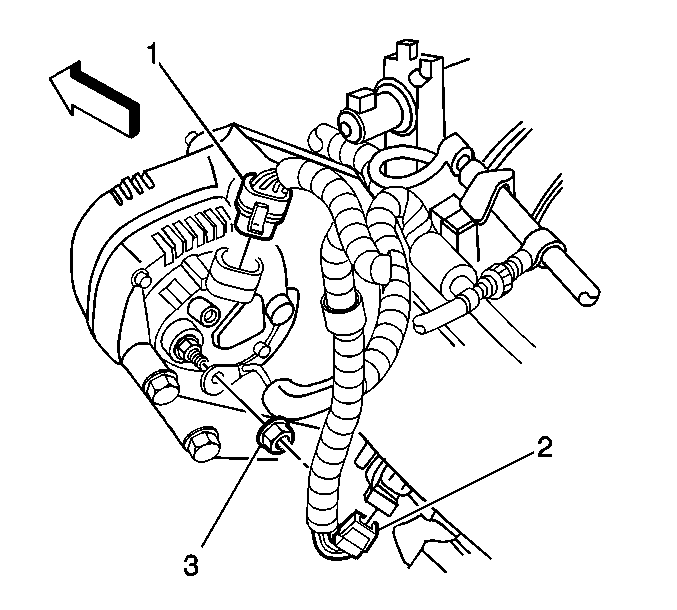

    3. Fig 1: Engine Wiring Harness Generator Lead Nut & Generator Electrical Connector
    GM651874Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the generator electrical connector (1 and 2).
  4. Remove the battery feed terminal nut (3) from the generator.
  5. Remove the battery feed cable.
    6. Fig 2: View Of Generator & Bolts
    GM74067Courtesy of GENERAL MOTORS CORP.
  6. Remove the generator mounting bolts.
  7. Remove the generator.
