Ground Distribution Schematics

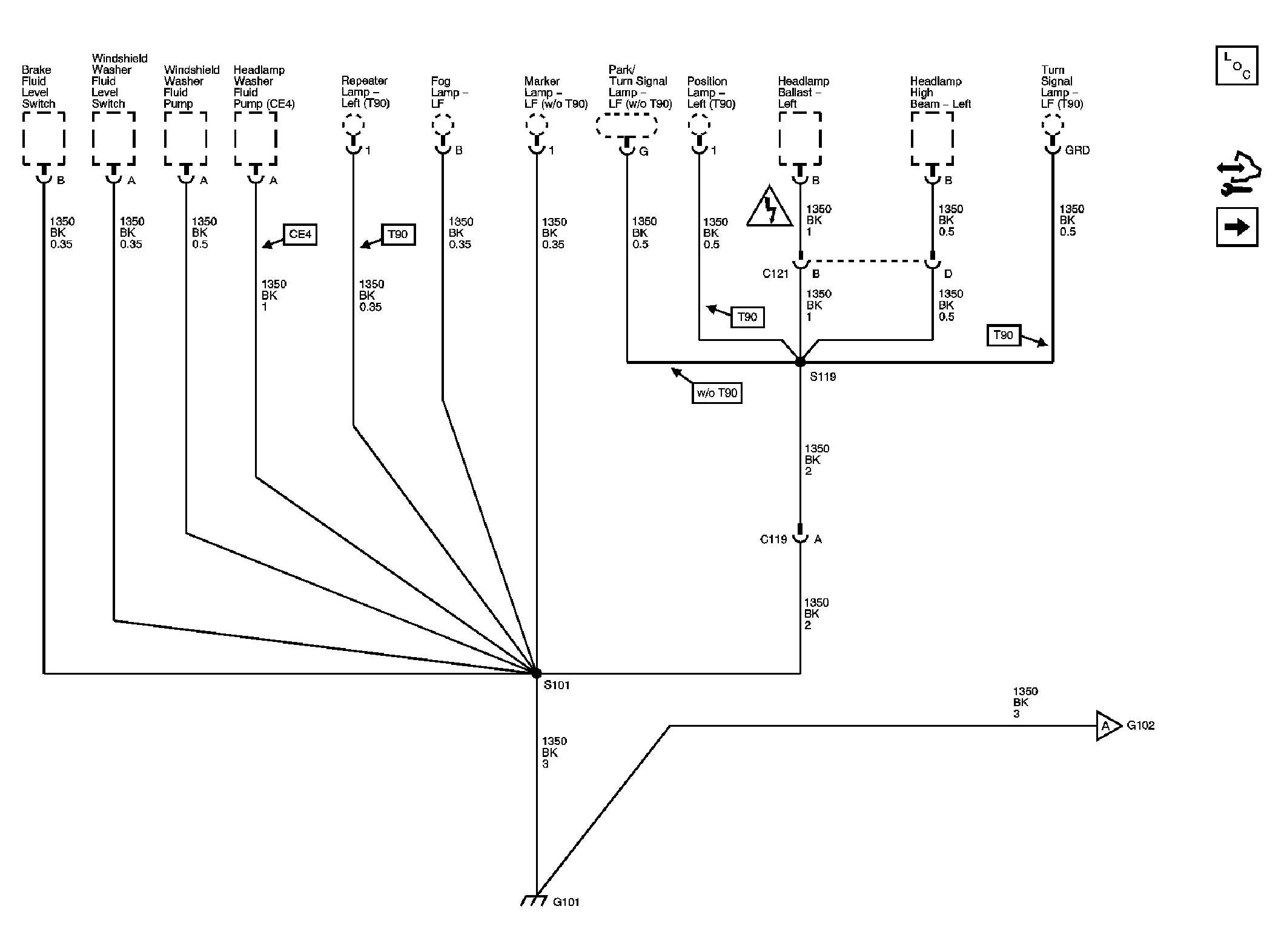

Fig 1: G101 Schematic

GM1892550

Courtesy of GENERAL MOTORS CORP.

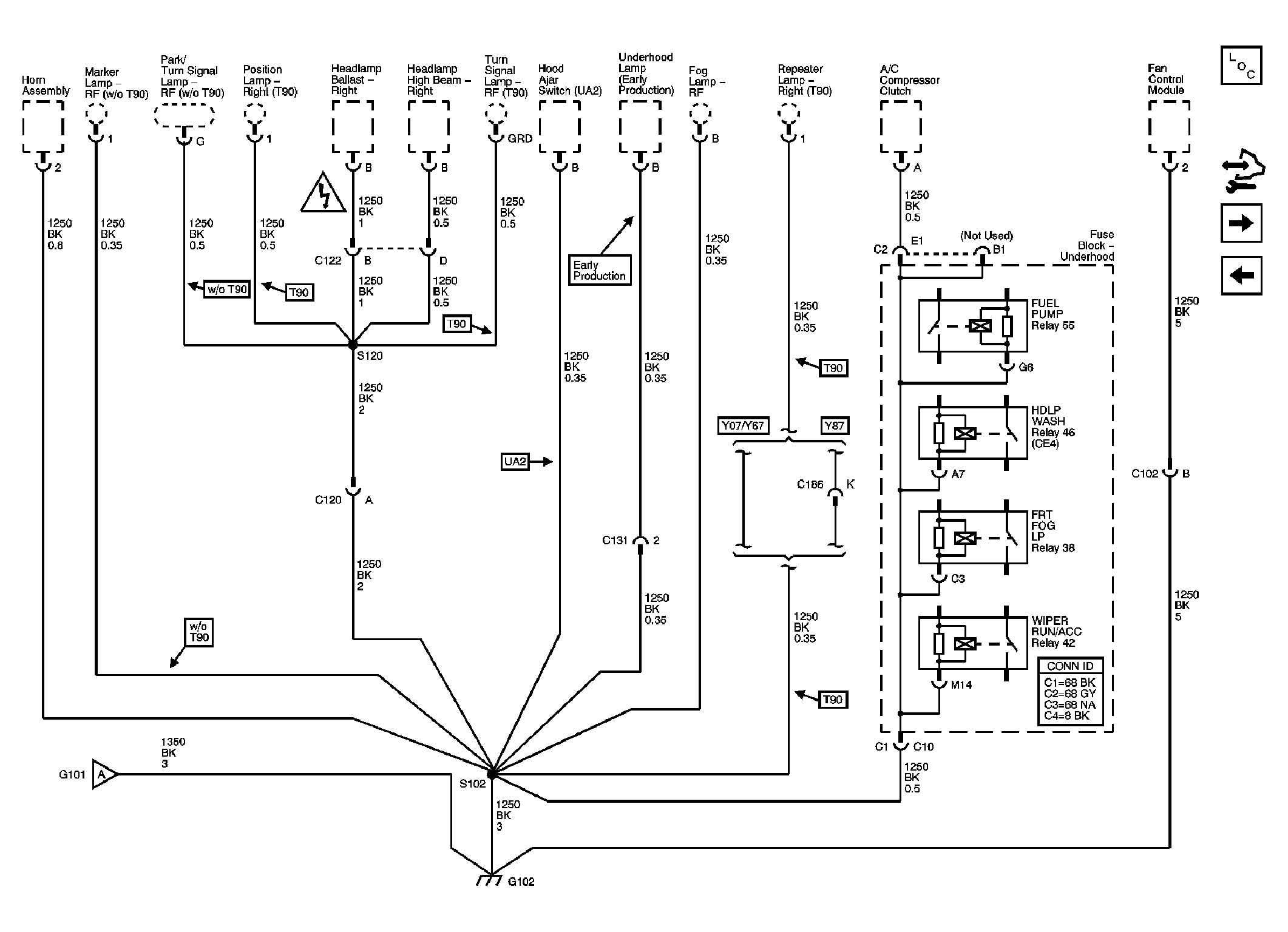

Fig 2: G102 Schematic

GM1892552

Courtesy of GENERAL MOTORS CORP.

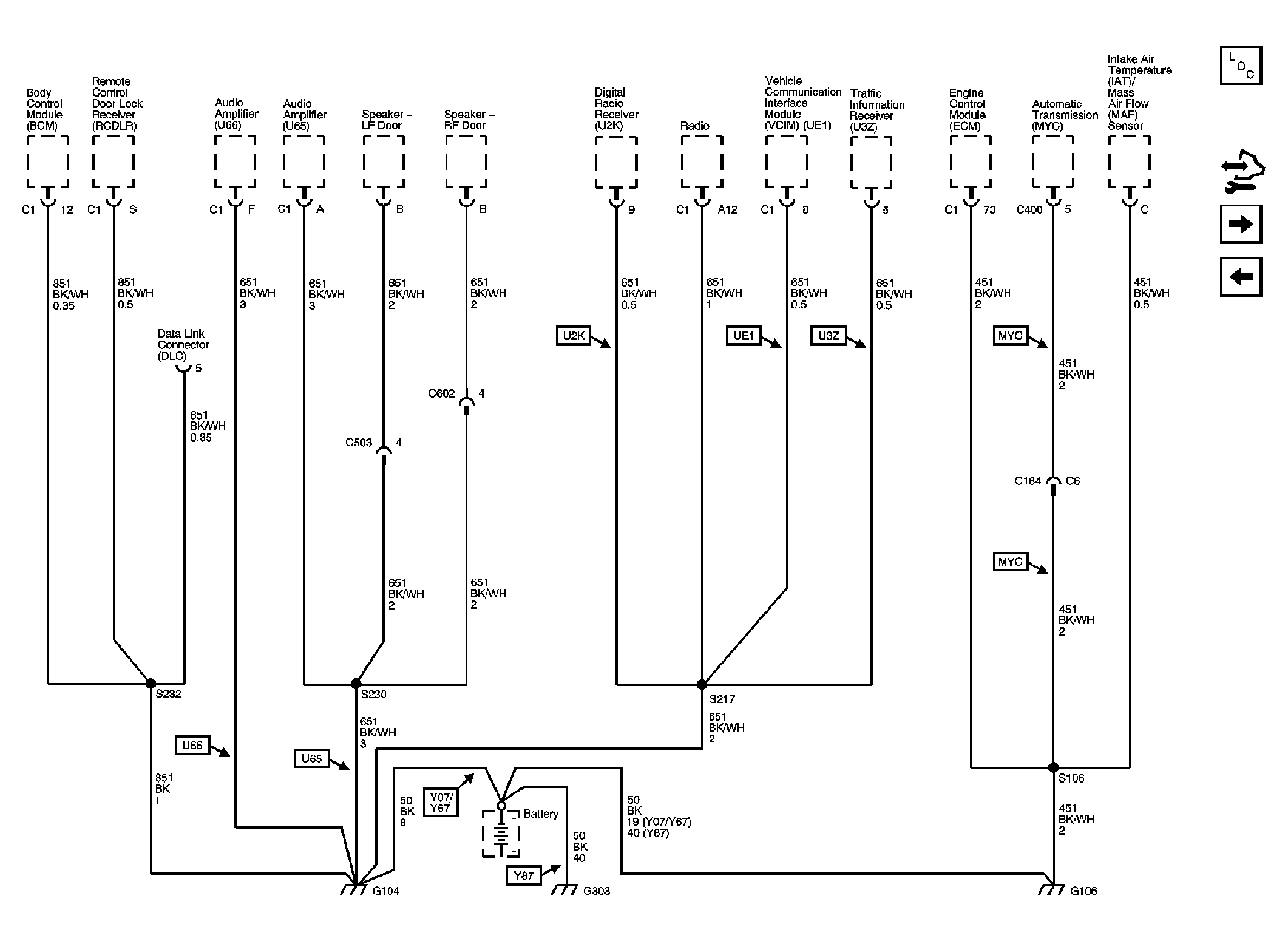

Fig 3: G104, G106, and G303 Schematic

GM1892555

Courtesy of GENERAL MOTORS CORP.

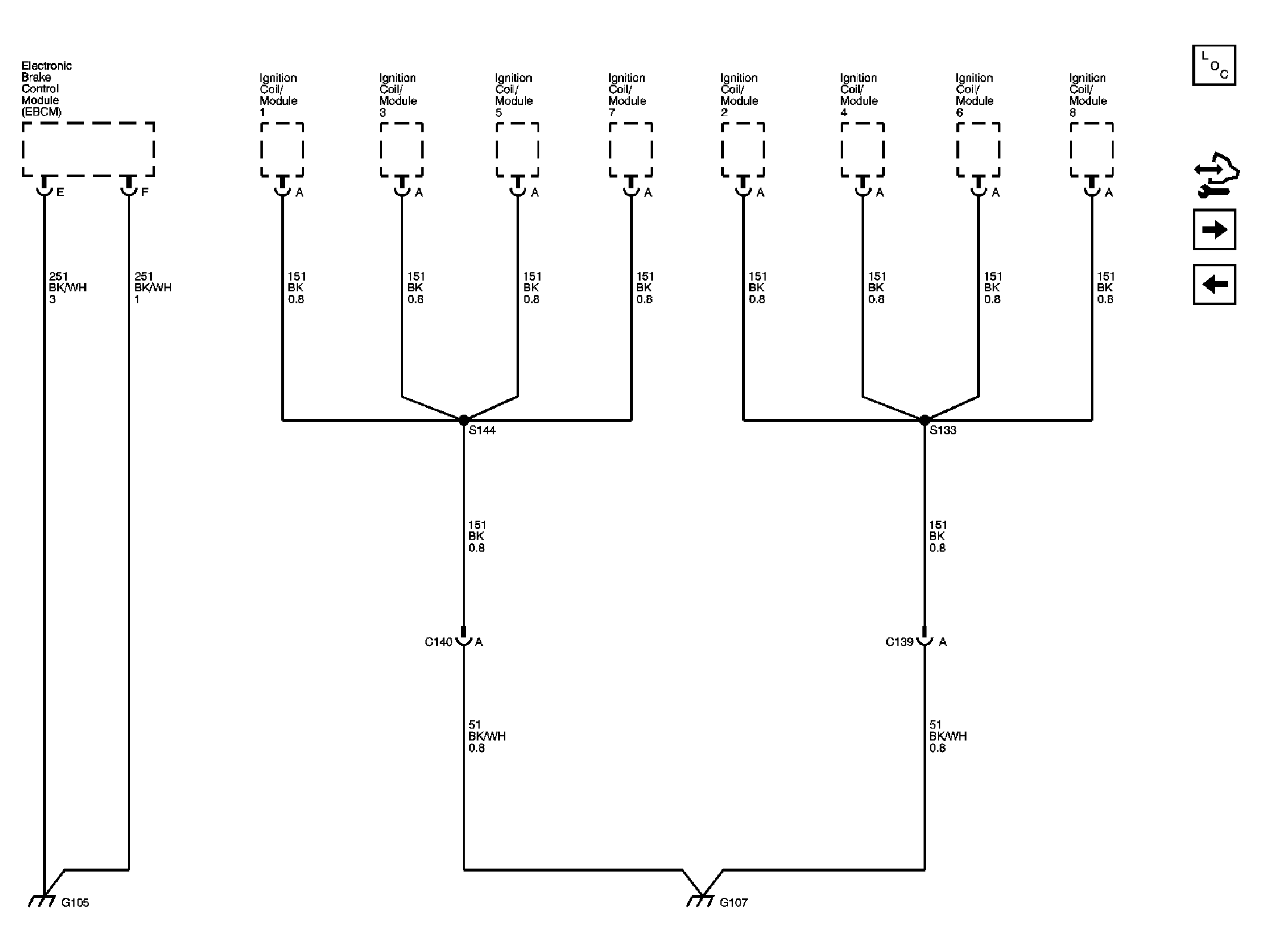

Fig 4: G105 and G107 Schematic

GM1892557

Courtesy of GENERAL MOTORS CORP.

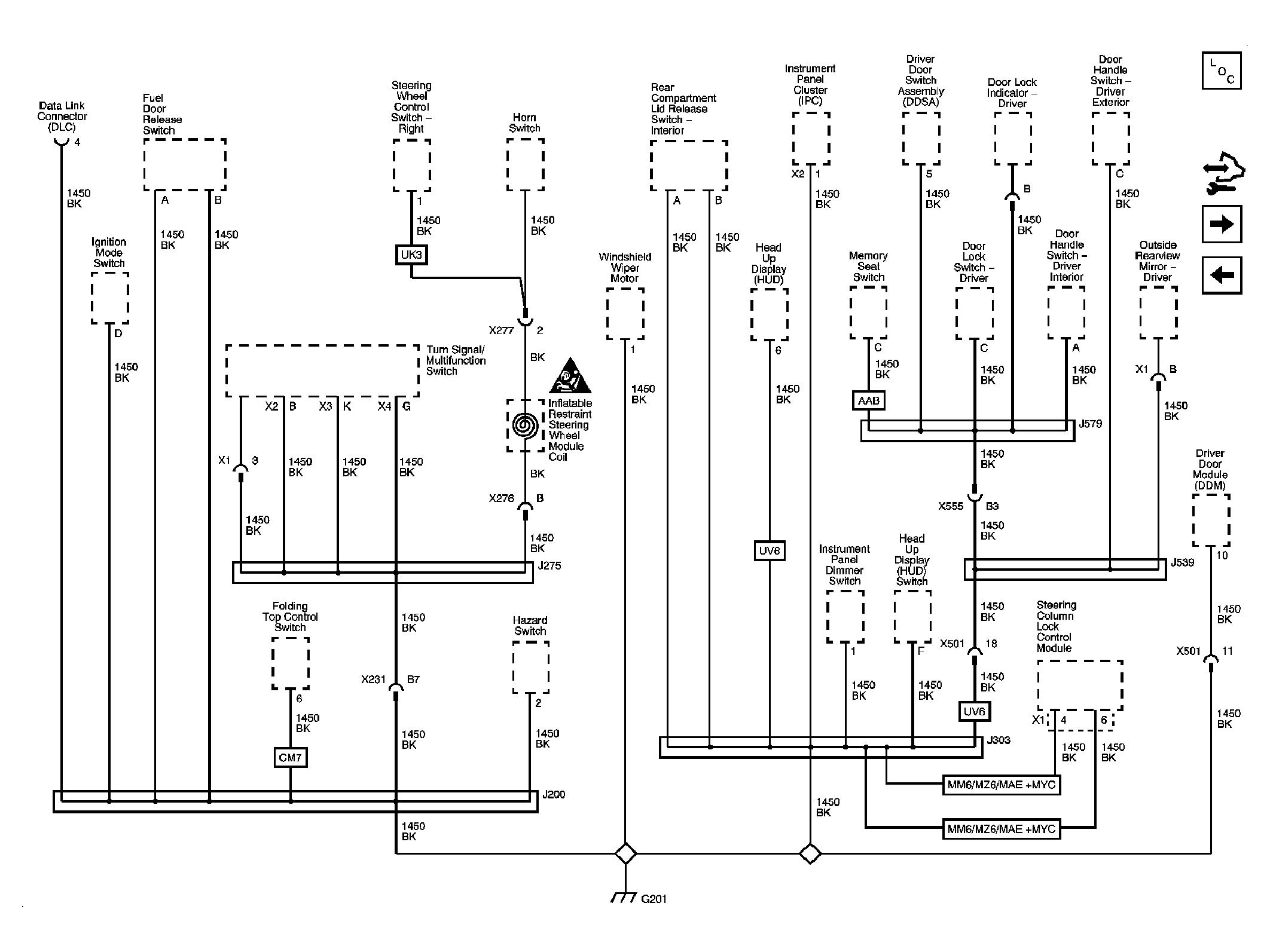

Fig 5: G201 Schematic

GM1892558

Courtesy of GENERAL MOTORS CORP.

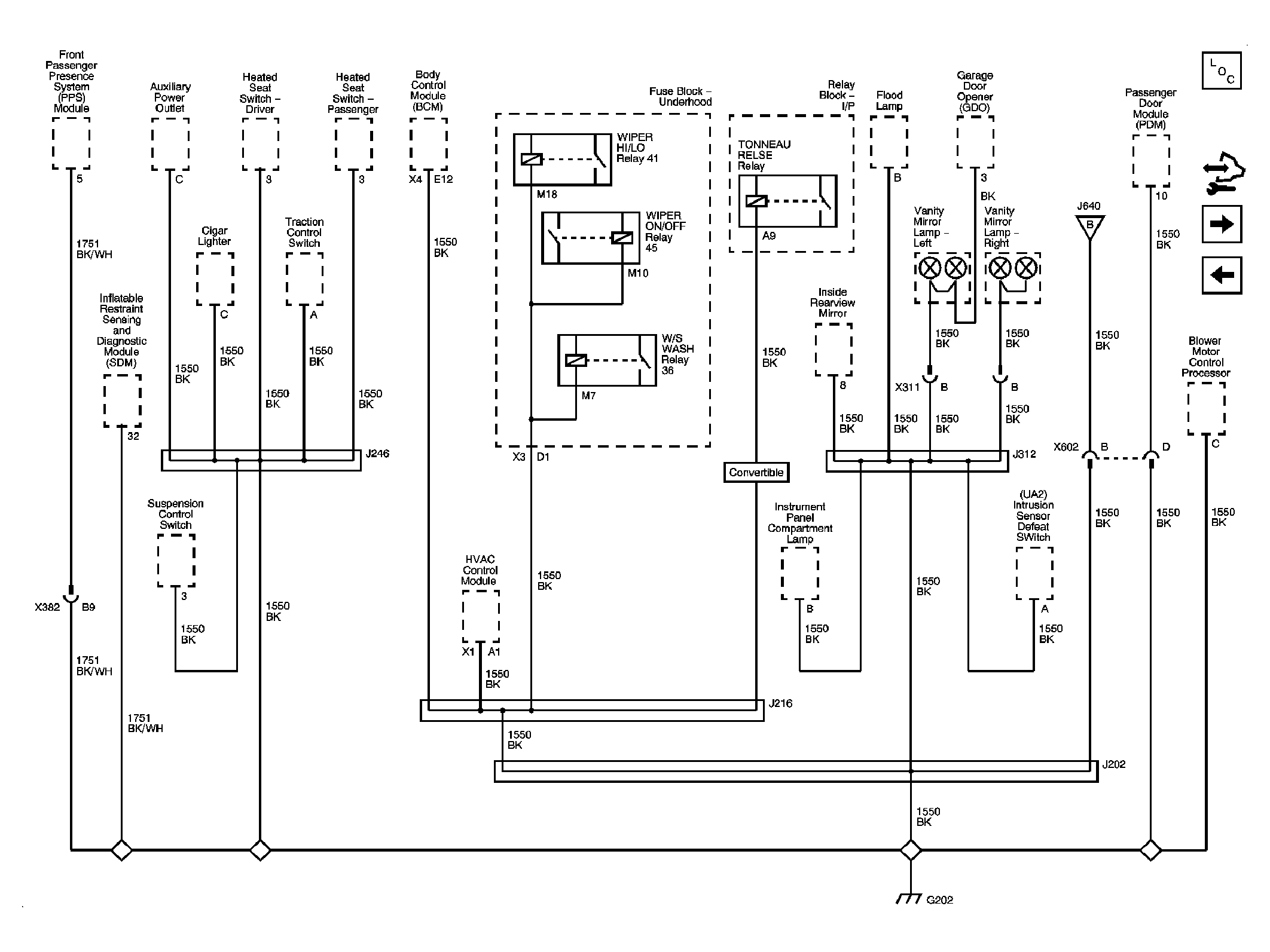

Fig 6: G202 Schematic (1 of 2)

GM1892560

Courtesy of GENERAL MOTORS CORP.

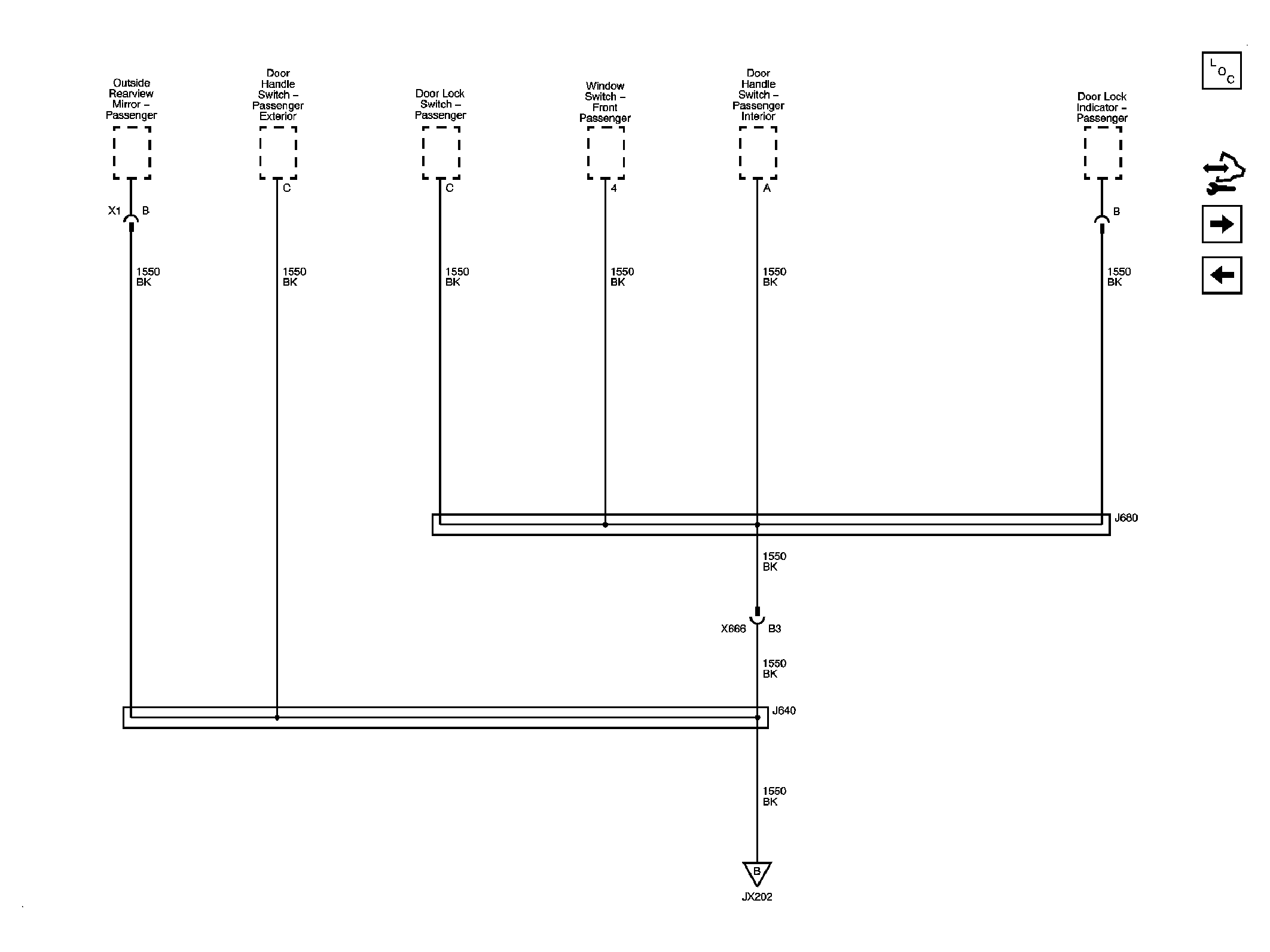

Fig 7: G202 Schematic (2 of 2)

GM1892561

Courtesy of GENERAL MOTORS CORP.

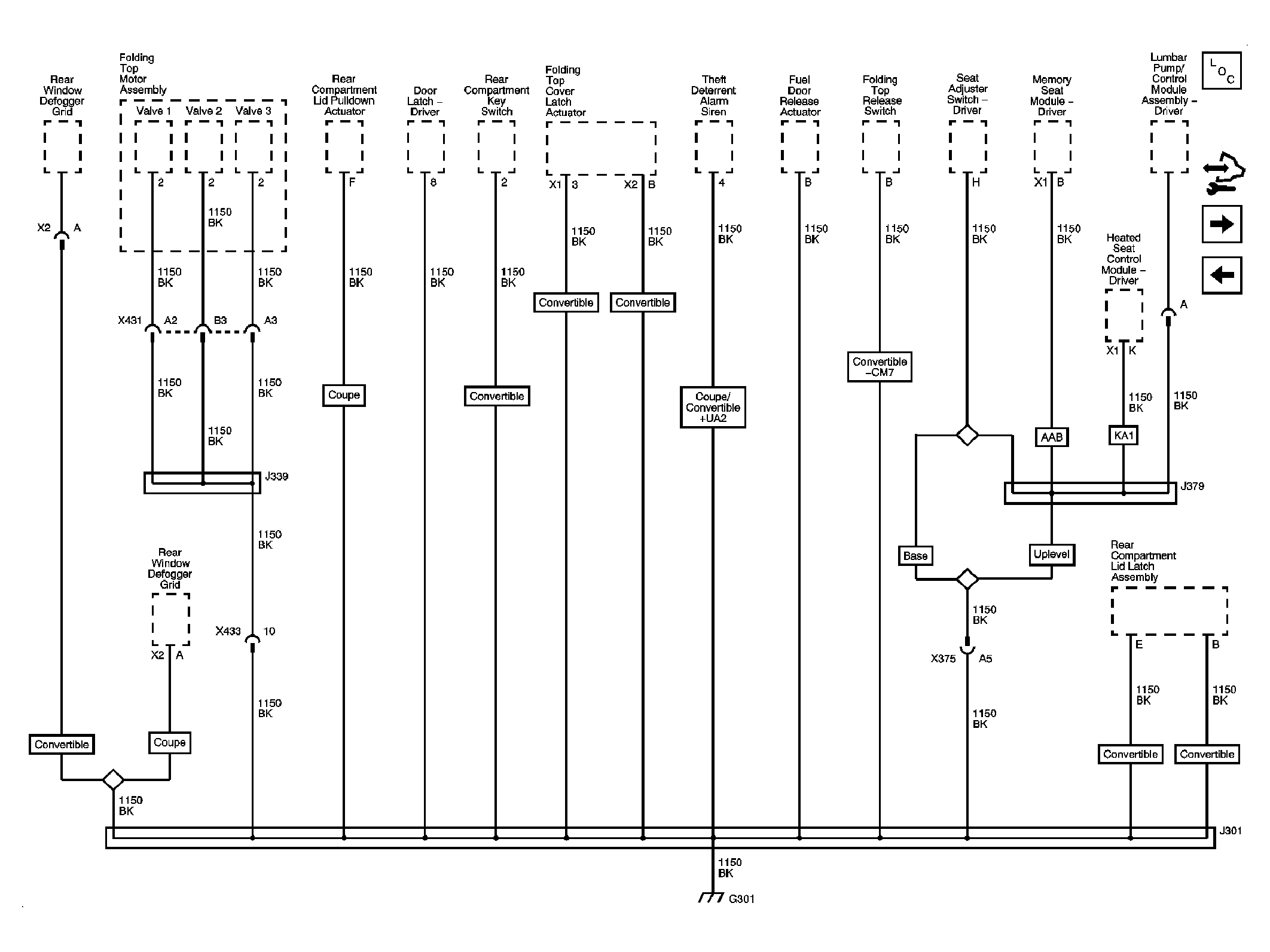

Fig 8: G301 Schematic

GM1892563

Courtesy of GENERAL MOTORS CORP.

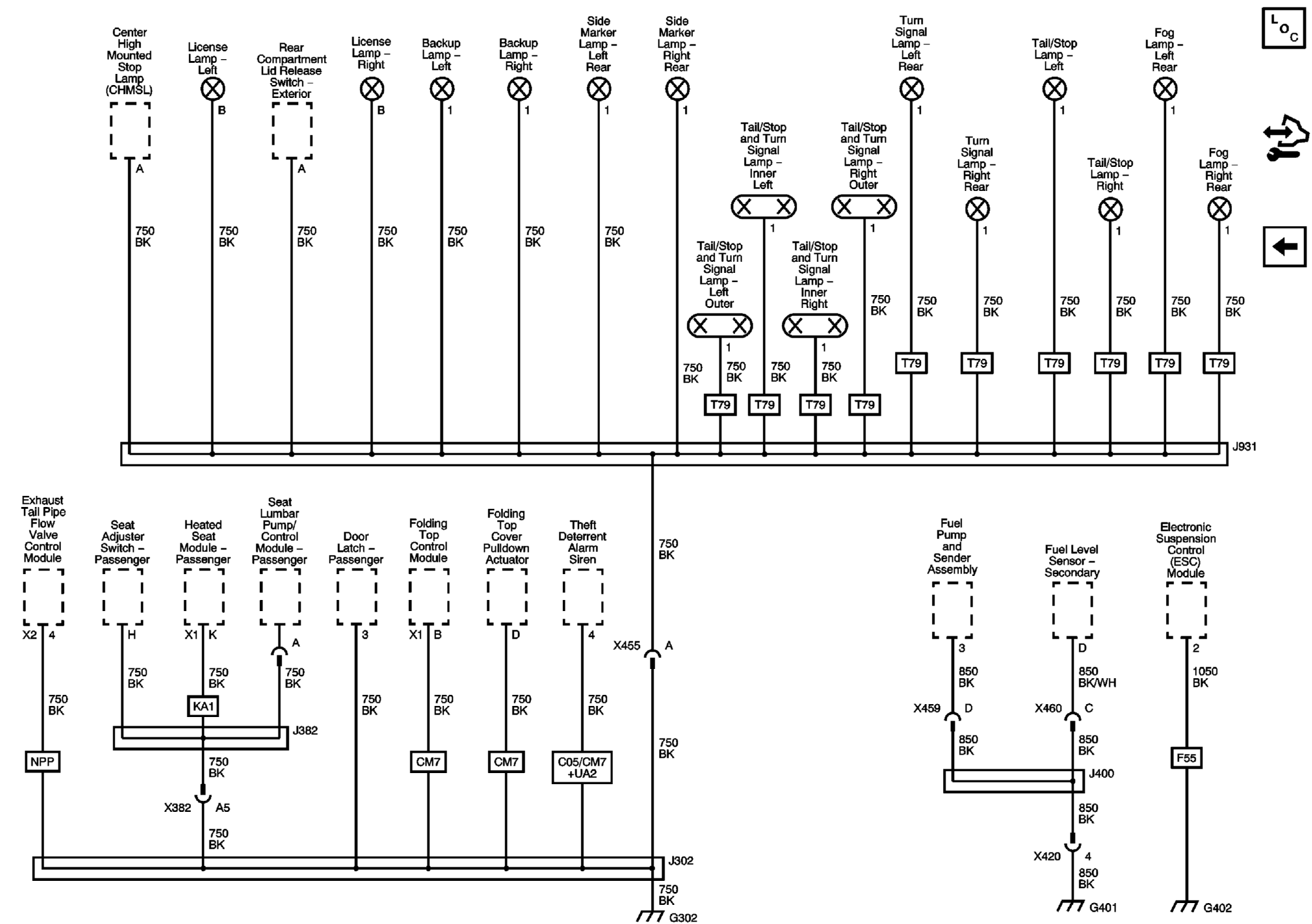

Fig 9: G302, G401, and G402 Schematic

GM1892564

Courtesy of GENERAL MOTORS CORP.
