Data Communication Schematics

WARNING: This page is about a different car, the 2008 Saturn Sky and 2008 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

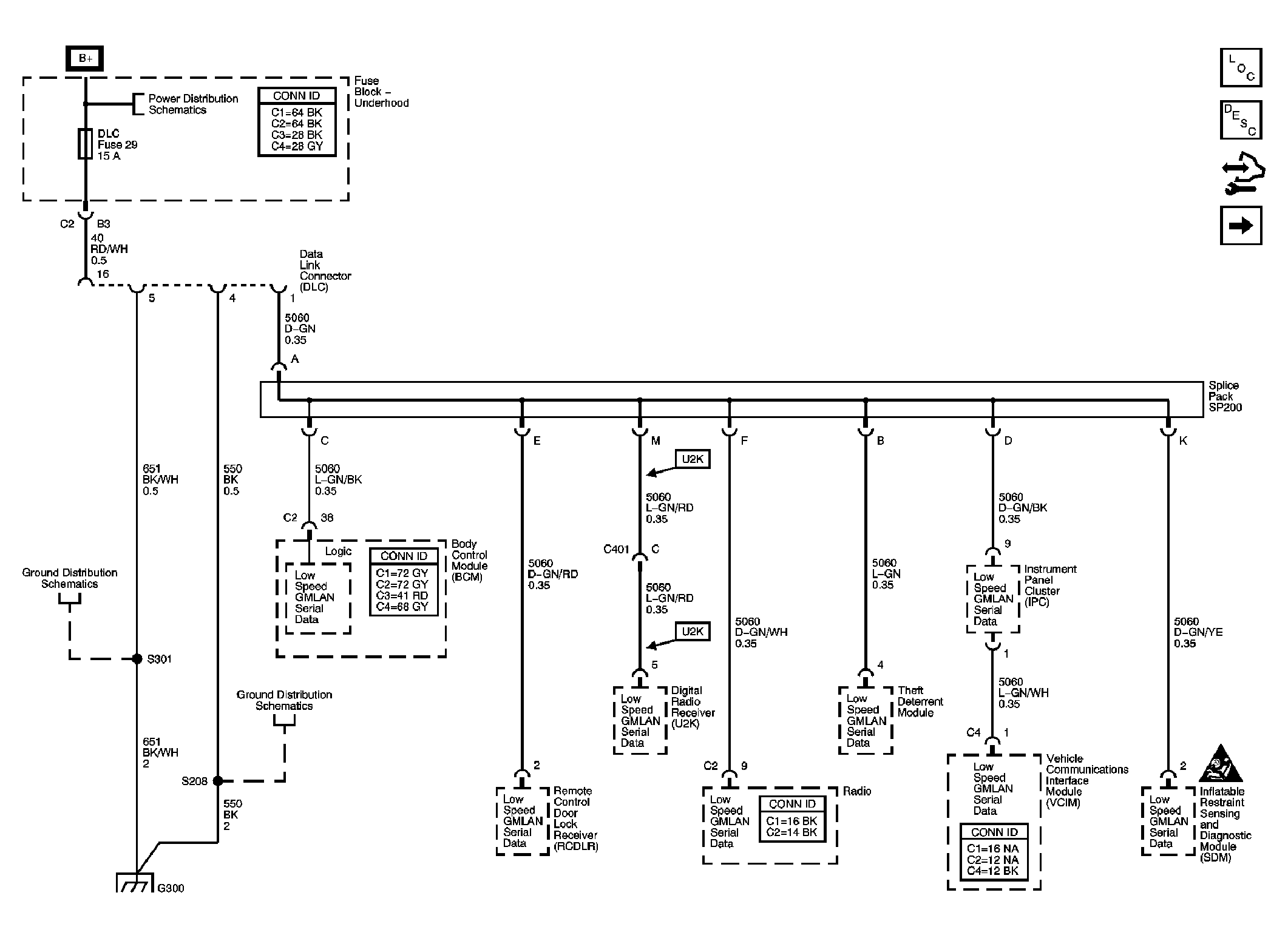

Fig 1: Low Speed LAN Schematic
GM1914233Courtesy of GENERAL MOTORS CORP.

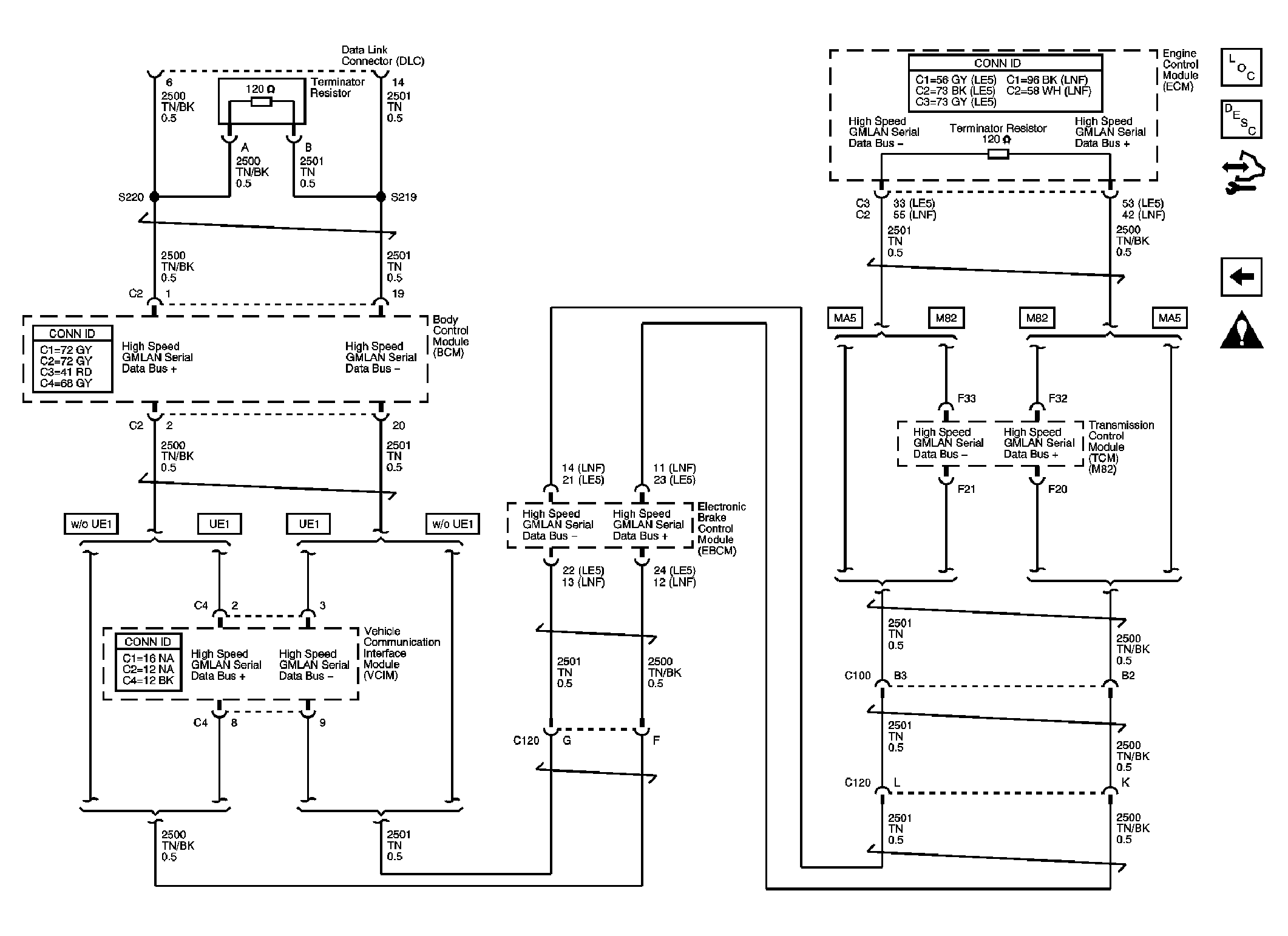

Fig 2: High Speed LAN Schematic
GM1914241Courtesy of GENERAL MOTORS CORP.
