Fuse Block - Body X2

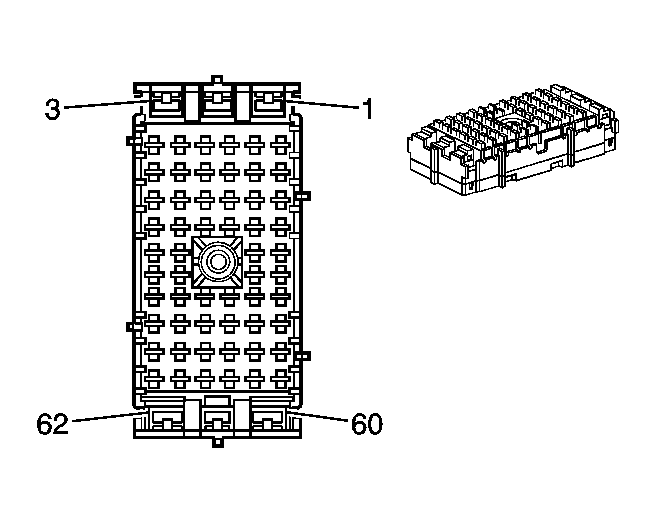

Fig 1: Fuse Block - Body X2 Connector End View
GM1884160Courtesy of GENERAL MOTORS CORP.
Fuse Block - Body X2

Pin Wire Circuit Function
1 - - Not Used
2 5 PU 293 Rear Defog Element Control (C49)
3 5 PU 293 Rear Defog Element Control (C49)
4 0.5 BN 2609 Right Rear Park Lamps Control (05/06)
5 3 RD/WH 3540 Battery Positive Voltage (AG1)
6 0.5 BN 2209 Rear Park Lamps Control (YF2/YF7)
7 0.8 D-BU/WH 149 Courtesy Lamp Control (-YF2/YF7)
8 1 TN 294 Door Lock Actuator Unlock Control (AU3+05/06))
9 - - Not Used
10 0.5 RD/WH 3440 Battery Positive Voltage
11 3 RD/WH 3540 Battery Positive Voltage (AG2)
12 3 D-GN 1001 RAP 12-Volt Fuse Control (A31)
13 3 D-GN 1001 RAP 12-Volt Fuse Control (A31)
14 0.8 OG 2267 Mirror Heating Element Control (DE5/DE7)
15 0.8 OG 2267 Mirror Heating Element Control (DE5/DE7)
16 0.5 RD/WH 3440 Battery Positive Voltage (ASF)
17 - - Not Used
18 0.5 D-BU/WH 149 Courtesy Lamp Control
19-21 - - Not Used
22 0.5 RD/WH 3440 Battery Positive Voltage (LD-C99-YF7)
23 - - Not Used
24 1 YE 618 Left Rear Turn Signal Lamp Control (05/06)
25 0.35 BN 441 Ignition Voltage
26 0.35 BN 341 Ignition Voltage (C69/C36/ENC)
27 0.5 D-BU/WH 1315 Right Front Turn Signal Lamp Control (DE5/DE7)
28 - - Not Used
29 0.5 BN 2509 Left Rear Park Lamps Control (05/06)
30 0.35 BN 341 Ignition Voltage (C49/DE5/DE7/C60)
31 1 D-GN 619 Right Rear Turn Signal Lamp Control (05/06)
32 0.8 TN 294 Door Lock Actuator Unlock Control (AU3+E24/YA2)
0.8 TN 294 Door Lock Actuator Unlock Control (AU3+E24)
33 0.8 TN 694 Driver Door Lock Actuator Unlock Control (AU3)
34 0.35 BK/WH 351 Ground
35-40 - - Not Used
41 0.5 L-BU/WH 1314 Left Front Turn Signal Lamp Control (DE5/DE7)
42 1 GY 295 Door Lock Actuator Lock Control (AU3)
1 GY 295 Door Lock Actuator Lock Control (AU3)
43 1 GY 295 Door Lock Actuator Lock Control (AU3+E26)
1 GY 295 Door Lock Actuator Lock Control (AU3+E26/YA2)
44 1 TN/BK 1095 Right Rear Door Lock Actuator Unlock Control (AU3+05/06)
45-46 - - Not Used
47 0.5 RD/WH 4340 Battery Positive Voltage (DE5/DE7)
48 0.8 TN 294 Door Lock Actuator Unlock Control (AU3)
49 1 GY 295 Door Lock Actuator Lock Control (AU3+05/06)
50 1 TN 294 Door Lock Actuator Unlock Control (AU3+05/06)
51 0.35 BN 341 Ignition Voltage (C69)
52 0.35 BN/WH 230 Instrument Panel Lamps Dimming Control
53 0.8 L-GN 24 Backup Lamp Control (05/06)
0.8 L-GN 24 Backup Lamp Control (05/06)
54-59 - - Not Used
60 5 RD/WH 1740 Battery Positive Voltage (C69/C36/ENC)
61 5 RD/BK 1042 Battery Positive Voltage (YF1/YF2/YF7)
62 5 BN 541 Ignition Voltage (YF1/YF2/YF7)
Connector Part Information
  • OEM: 13578273
  • Service: See Catalog
  • Description: 62-Way F 2.8, 6.3 Series (GY)
Terminal Part Information
  • Pins: 2, 3, 60-62
  • Terminal/Tray: 7116-4122-02/10
  • Core/Insulation Crimp: D/G
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
  • Pins: 4, 6, 10, 16, 18, 22, 25-27, 29, 30, 34, 41, 47, 51, 52
  • Terminal/Tray: 8100-4443/22
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-35 (VT)
  • Pins: 7, 8, 14, 15, 24, 31-33, 43, 44, 48-50
  • Terminal/Tray: 8100-4444/22
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-35 (VT)
  • Pins: 5, 11-13, 7, 32, 42, 43, 53
  • Terminal/Tray: 8100-4445/22
  • Core/Insulation Crimp: Pins 5, 11, 12, 13 - F/D
  • Core/Insulation Crimp: Pins 7, 32, 42, 43, 53 - See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-35 (VT)
