Installation Procedure

  1. Position the positive extension cable and connect the wiring harness clips.

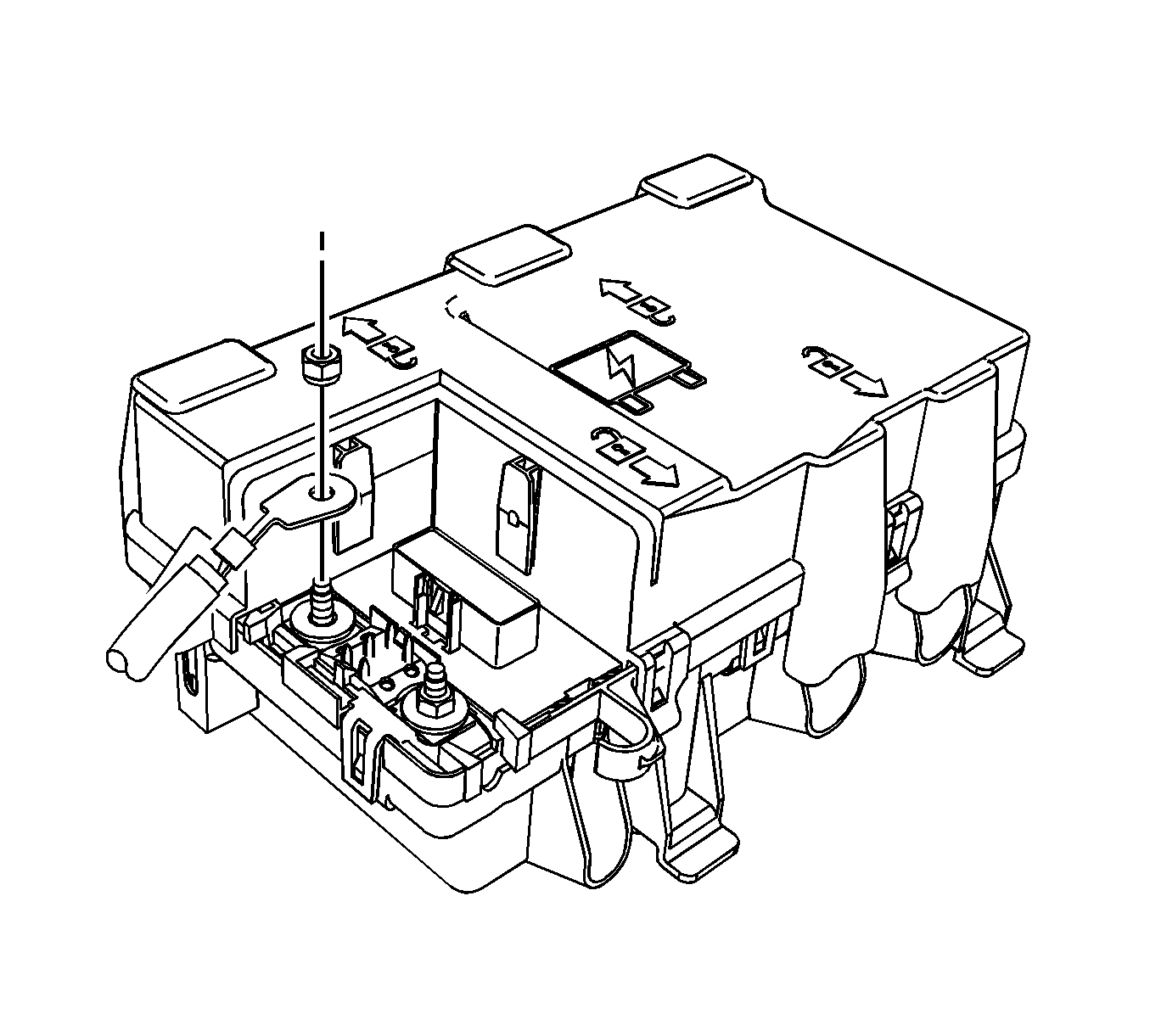

    2. Fig 1: View Of UBEC Terminal Stud & Positive Extension Cable Nut
    GM1724782Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Position the positive extension cable to the UBEC terminal stud and install the nut.

    Tighten:  Tighten the positive extension cable to UBEC terminal stud to 9 N.m (80 lb in).

  3. Install the battery positive cover to the UBEC.

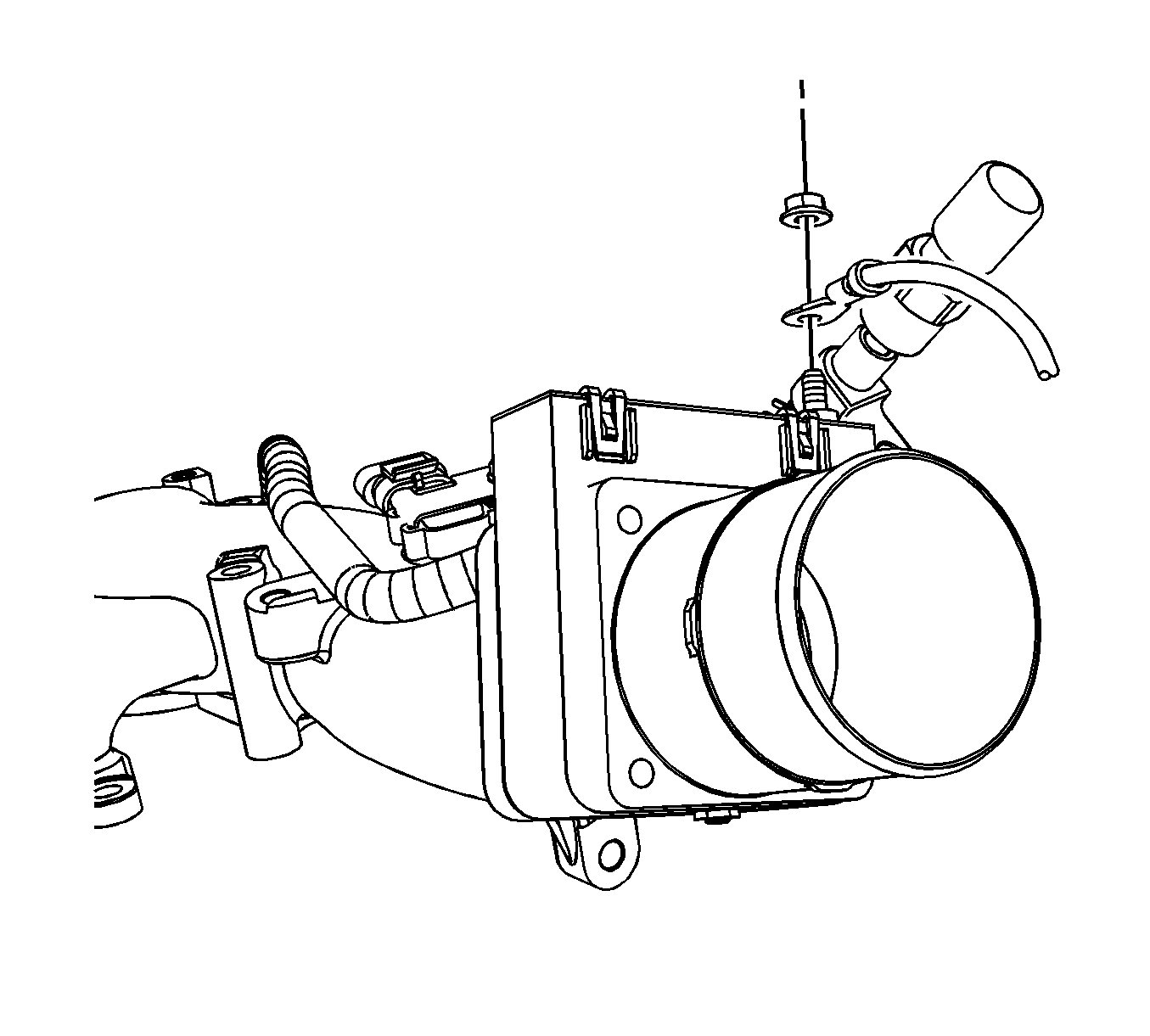

    4. Fig 2: Identifying Positive Cable From IAH
    GM1724827Courtesy of GENERAL MOTORS CORP.
  4. Position the positive extension cable to the intake air heater and install the nut.

    Tighten:  Tighten the positive extension cable to intake air heater nut to 4 N.m (34 lb in).

  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
    7. Fig 3: View Of Positive Extension Cable
    GM1665180Courtesy of GENERAL MOTORS CORP.
  7. Position the positive extension cable to the junction block and install the cable nut.

    Tighten:  Tighten the positive extension cable to junction block nut to 8 N.m (71 lb in).

  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
