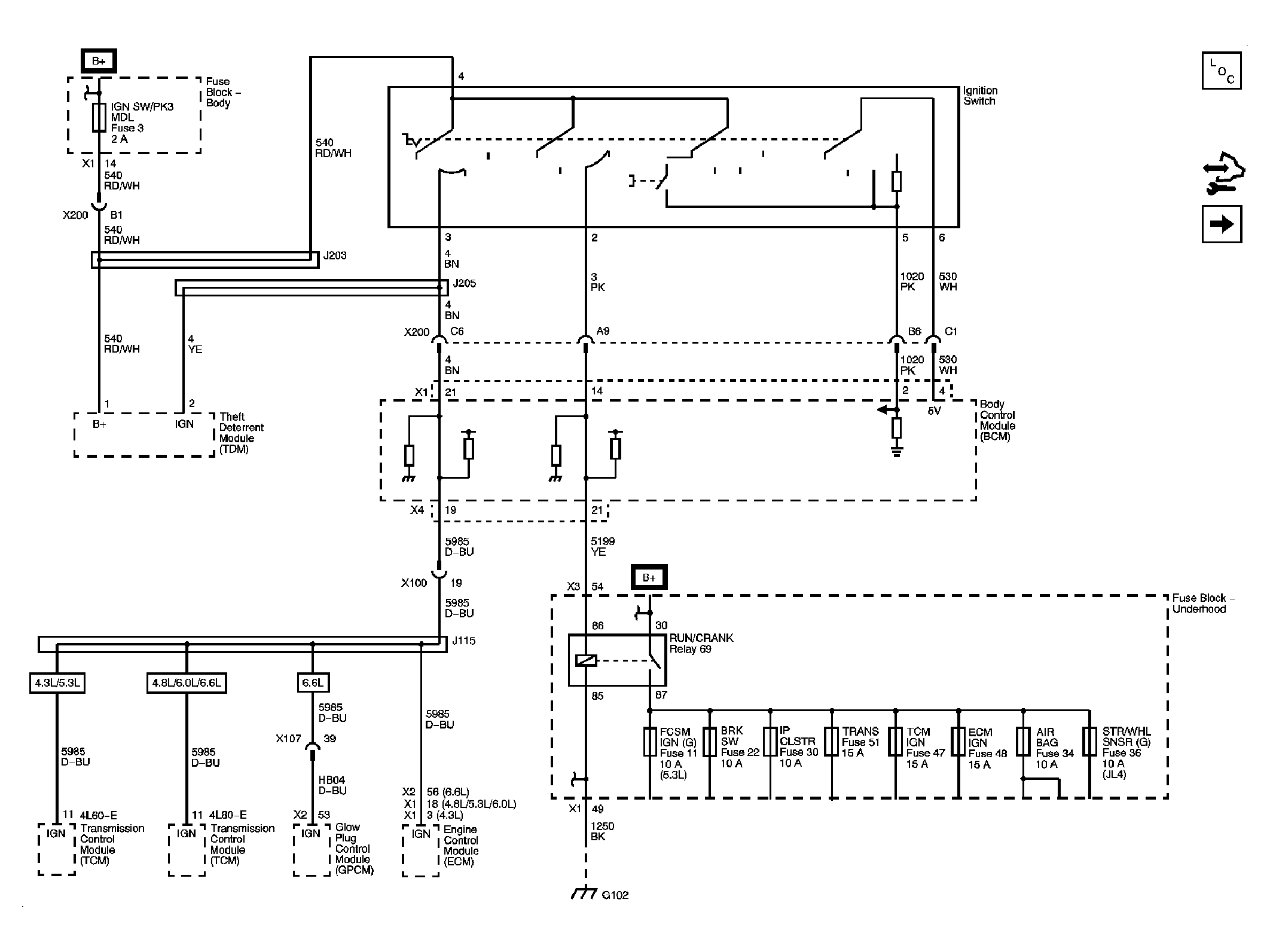

Home >> Chevrolet >> 2008 >> Chevy Express G2500, Van Passenger >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Power Moding Schematics
