Radio/Navigation System Schematics

Fig 1: Power, Ground, Serial Data, Antenna, and Front Speaker Outputs Schematic
GM1884033Courtesy of GENERAL MOTORS CORP.

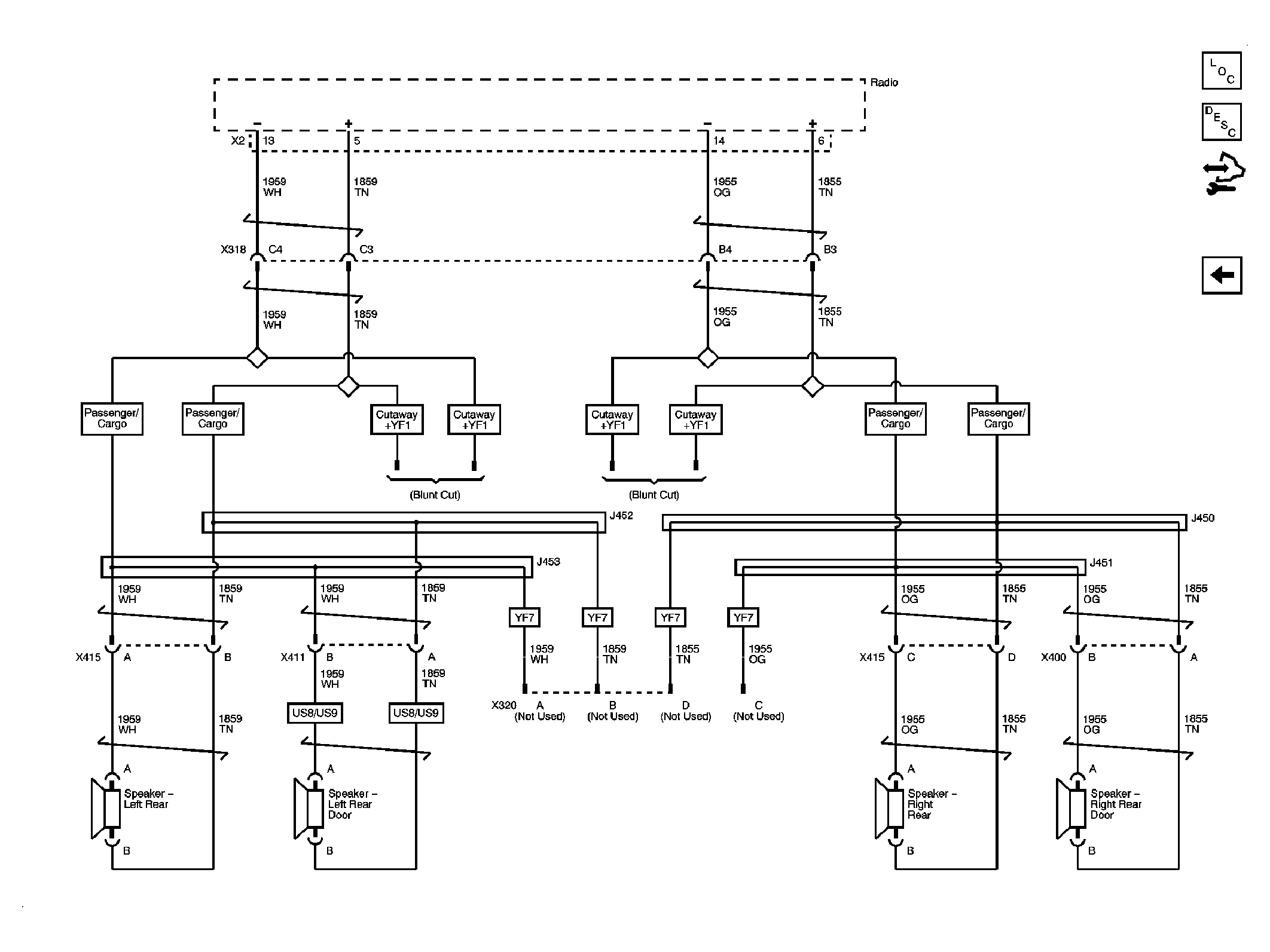

Fig 2: Rear Speaker Outputs Schematic
GM1884037Courtesy of GENERAL MOTORS CORP.
