Assembly Procedure

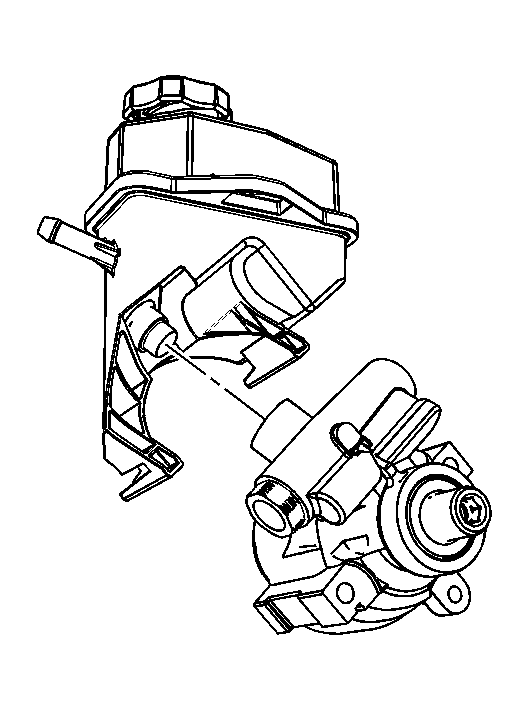

    Fig 1: View Of Power Steering Pump Reservoir And Power Steering Pump Housing
    GM1774462Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the NEW O-ring seal with power steering fluid and install it onto the neck of the power steering pump reservoir.
  2. Install the reservoir to the power steering pump.

    Press the reservoir into the pump until the neck is completely engaged onto the power steering pump assembly.

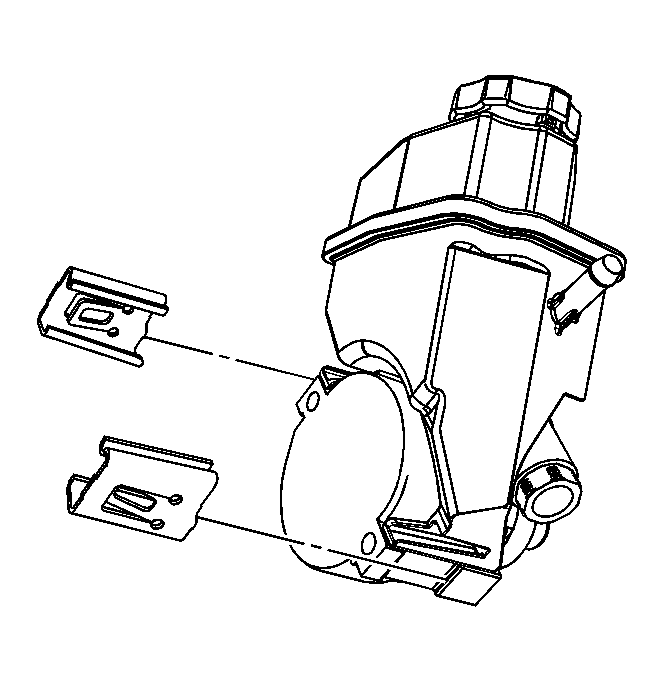

    3. Fig 2: View Of Power Steering Pump Reservoir Retaining Tabs
    GM1774463Courtesy of GENERAL MOTORS CORP.
  3. Align the feet of the reservoir with the sides of the hydraulic pump housing.
  4. Install the 2 power steering reservoir retaining clips. Ensure the retaining clip tabs fully engage with the power steering pump housing.
