Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake pedal and bushings.
    Fig 1: Exploded View Of Brake Pedal Nut & Bolt
    GM630032Courtesy of GENERAL MOTORS CORP.
  2. Install the brake pedal nut and bolt.

    Tighten:  Tighten the brake pedal nut and bolt to 40 N.m (30 lb ft).

    NOTE: Refer to Fastener Notice .
  3. Install the brake pedal washer and pushrod to the brake pedal.

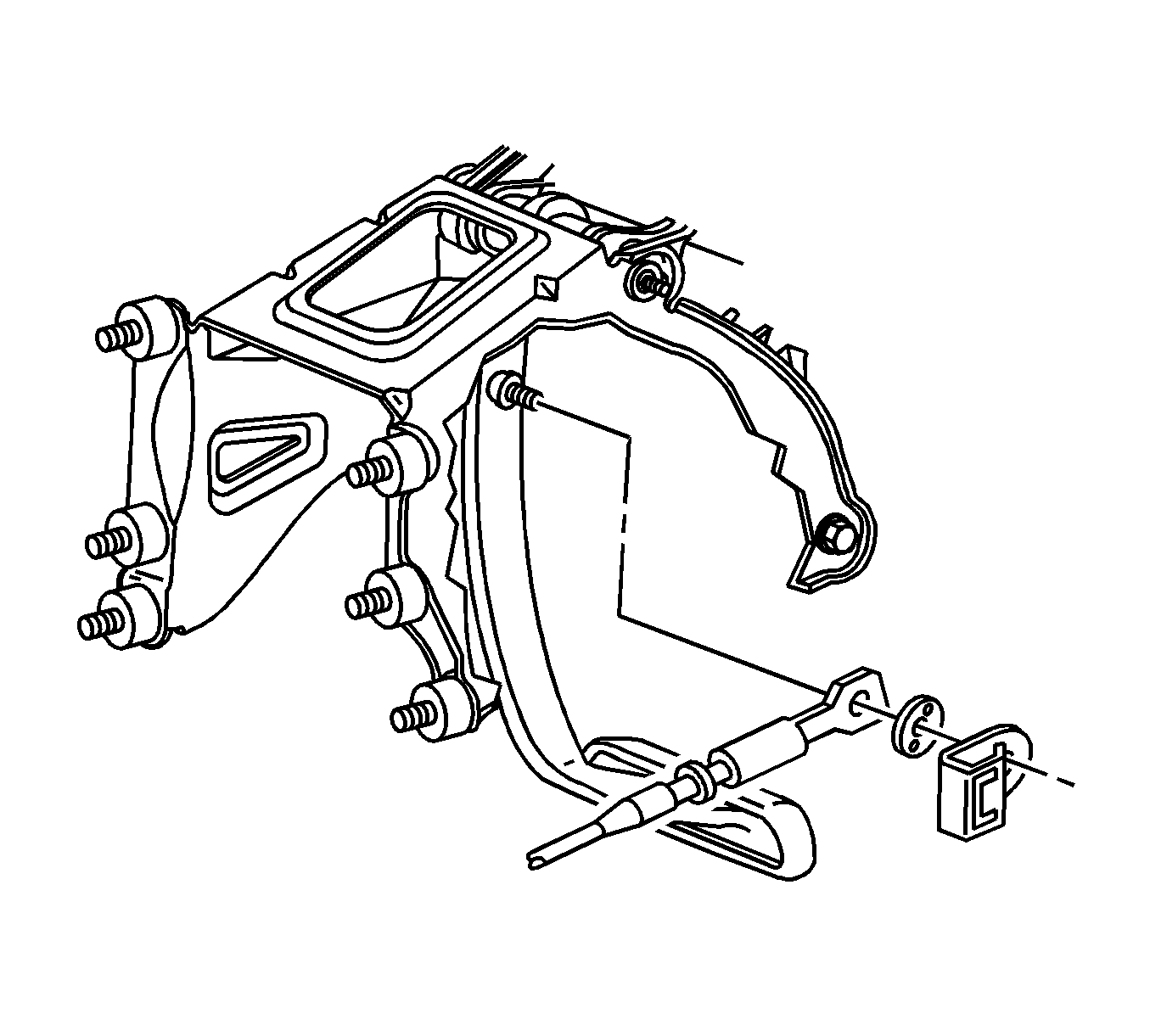

    Fig 2: View Of Brake Pedal Pushrod Assembly
    GM1676413Courtesy of GENERAL MOTORS CORP.
  4. Install the brake pedal pushrod retaining clip to the brake pedal.
  5. Secure the wiring harness clips to the bracket.
  6. Connect the brake pedal position sensor electrical connector.
  7. Insert the top of the BCM up into the mounting bracket, then engage the bottom of the BCM into the mounting bracket slot.
  8. Install the left closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
