Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

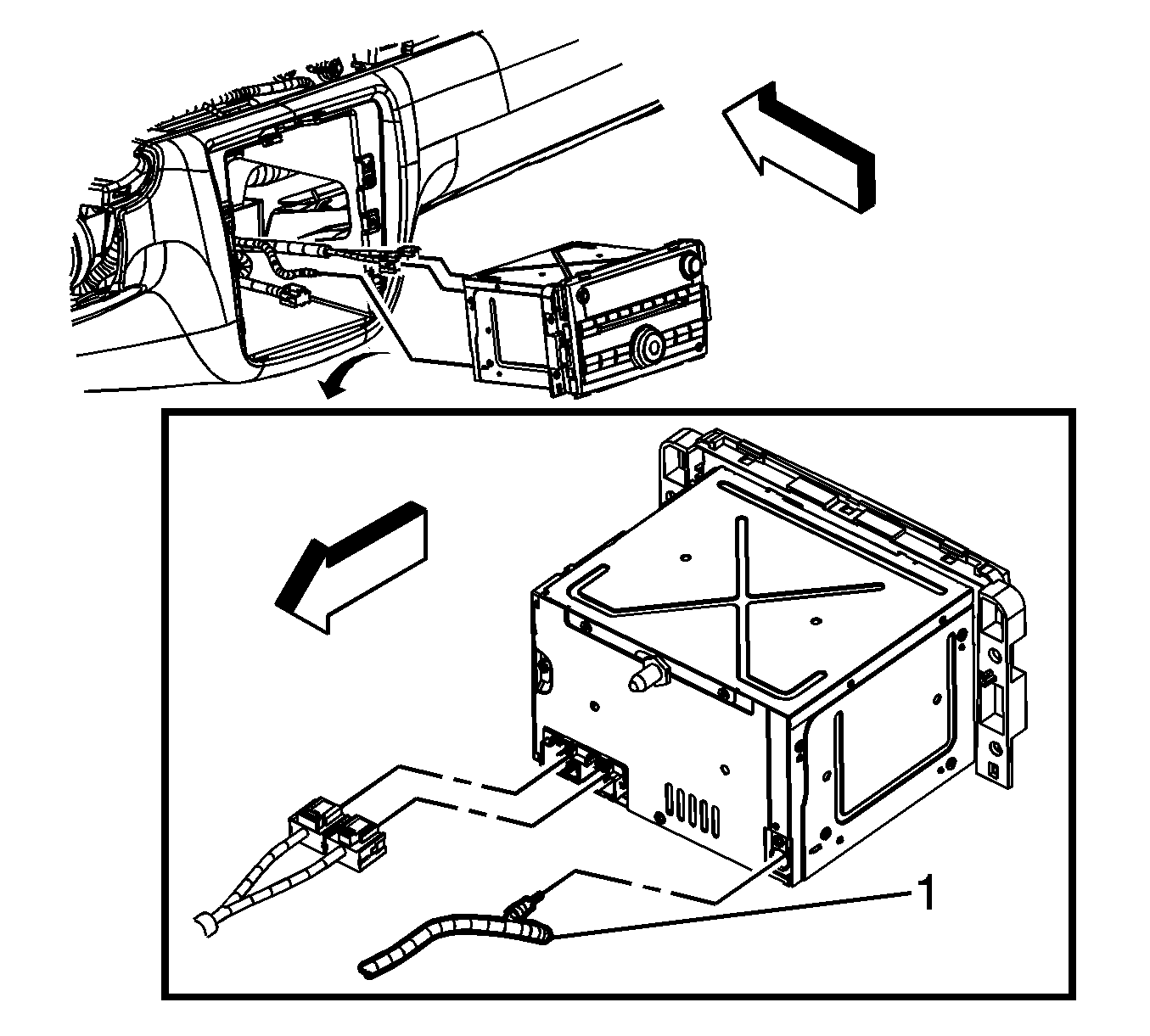

    Fig 1: Exploded View Of Antenna Extension Cable & Radio
    GM1778657Courtesy of GENERAL MOTORS CORP.
  1. Route the antenna extension cable. Secure the cable.
  2. Connect the antenna extension cable (1) to the radio. Install the radio. Refer to Radio Replacement .
    3. Fig 2: Identifying Antenna Cable & Antenna Extension Cable
    GM1778655Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The antenna cable uses a sliding snap-lock. Holding the sliding lock feature will prevent installation.
  3. Connect the antenna extension cable (2) from the radio to the antenna cable (1) near the kick panel:
    1. Position the antenna extension cable behind the sliding lock feature.
    2. Install the antenna extension cable to the sliding lock feature.
  4. Install the right instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  5. Install the carpet.
  6. Install the right carpet retainer. Refer to Front Carpet Retainer Replacement (Impala) or Front Carpet Retainer Replacement (Monte Carlo) .
