Radio Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

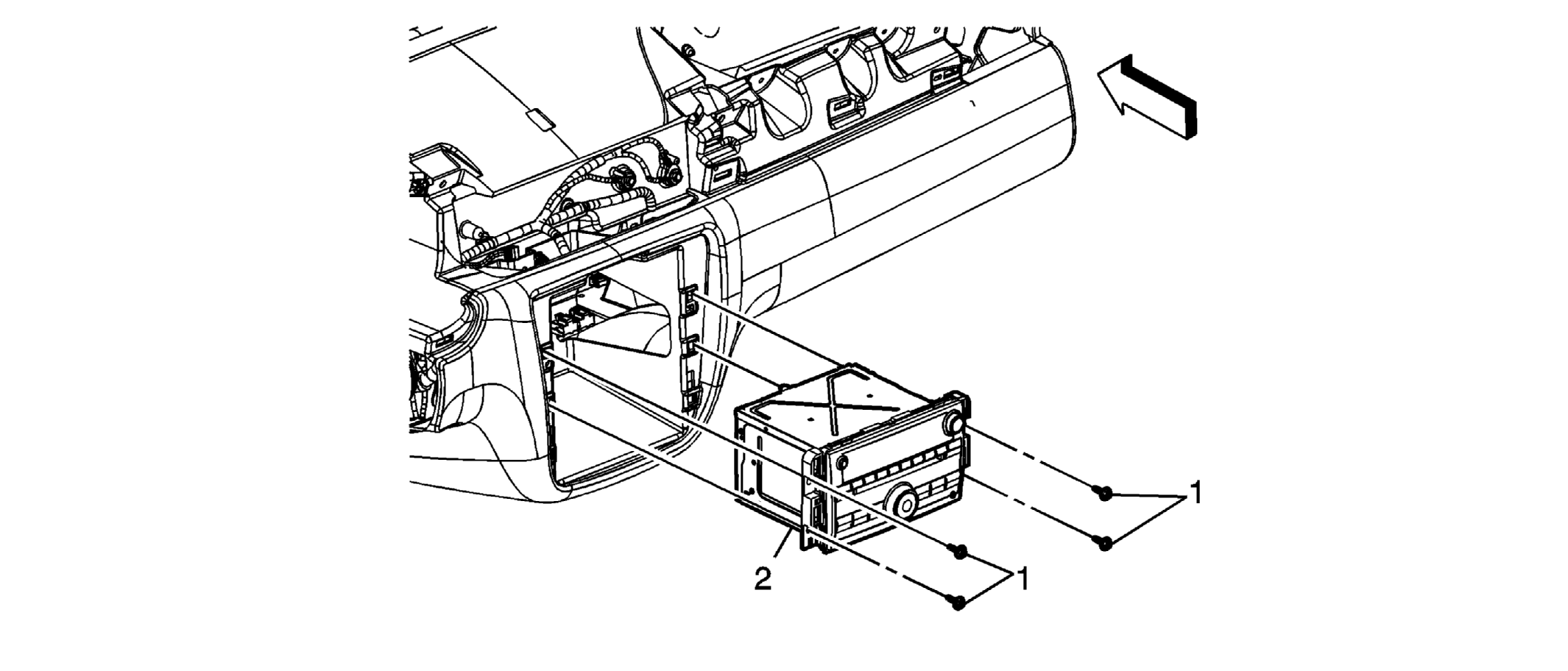

Fig 1: Replacing Radio

Courtesy of GENERAL MOTORS CORP.

Radio Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Tightening Specifications: Refer to Fastener Tightening Specifications Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Impala) or Instrument Panel Accessory Trim Plate Replacement (Monte Carlo) Remove the heating and air conditioning control module. Refer to HVAC Control Assembly Replacement Slightly push the antenna lead toward the radio to relieve tension on the internal fingers. Pull back on the spring-loaded locking ring and remove the connector from the radio. To install the antenna lead, plug the antenna lead into the socket until it clicks. Program the radio after replacement. Refer to Control Module References
1	Radio Bolt/Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
2	AM/FM Stereo Radio

Callout

Component Name

NOTE: Refer to Fastener Notice

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications

Preliminary Procedure

Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Impala) or Instrument Panel Accessory Trim Plate Replacement (Monte Carlo)
Remove the heating and air conditioning control module. Refer to HVAC Control Assembly Replacement
Slightly push the antenna lead toward the radio to relieve tension on the internal fingers. Pull back on the spring-loaded locking ring and remove the connector from the radio.
To install the antenna lead, plug the antenna lead into the socket until it clicks.
Program the radio after replacement. Refer to Control Module References

Radio Bolt/Screw (Qty: 4)

Tighten: 2 N.m (18 lb in)

AM/FM Stereo Radio
