Digital Radio Receiver Replacement
WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Digital Radio Receiver Replacement

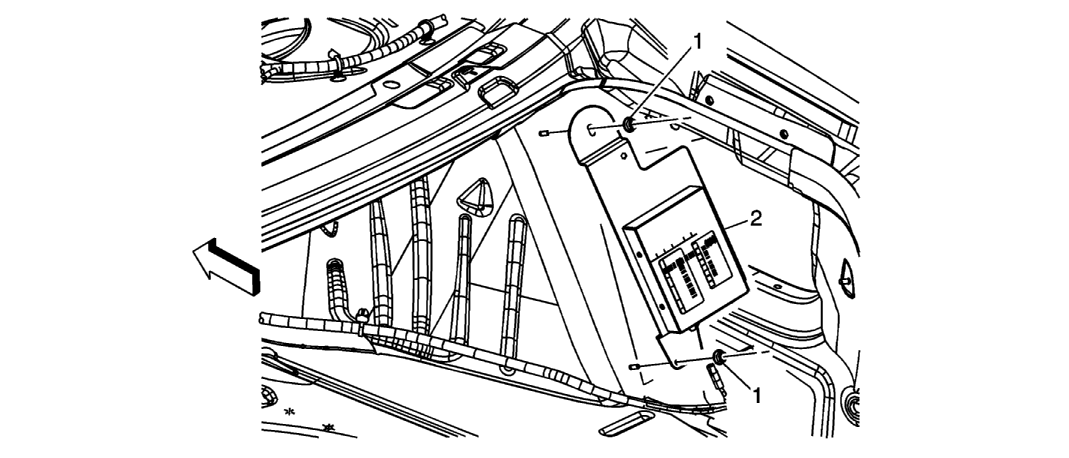

| Callout | Component Name |
|---|---|
|
IMPORTANT:
Do not swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock. "XM Theftlock" will be displayed. Preliminary Procedure: Remove the right rear compartment trim. Refer to Rear Compartment Side Trim Replacement - Right Side
. |
|
| 1 | Digital Radio Receiver Bracket Nuts (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 3.5 N.m (31 lb in) Tip: Disconnect the antenna and electrical connectors from the module. |
| 2 | Digital Radio Receiver Assembly Tighten: 5 N.m (44 lb in) Tip: Remove the nuts that retain the receiver to the bracket. |
