Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna cable to the vehicle. Use electrical tape in order to secure the antenna extension cable to the top of the wiring harness. Secure the cable to the harness at least every 150 mm (6 in).

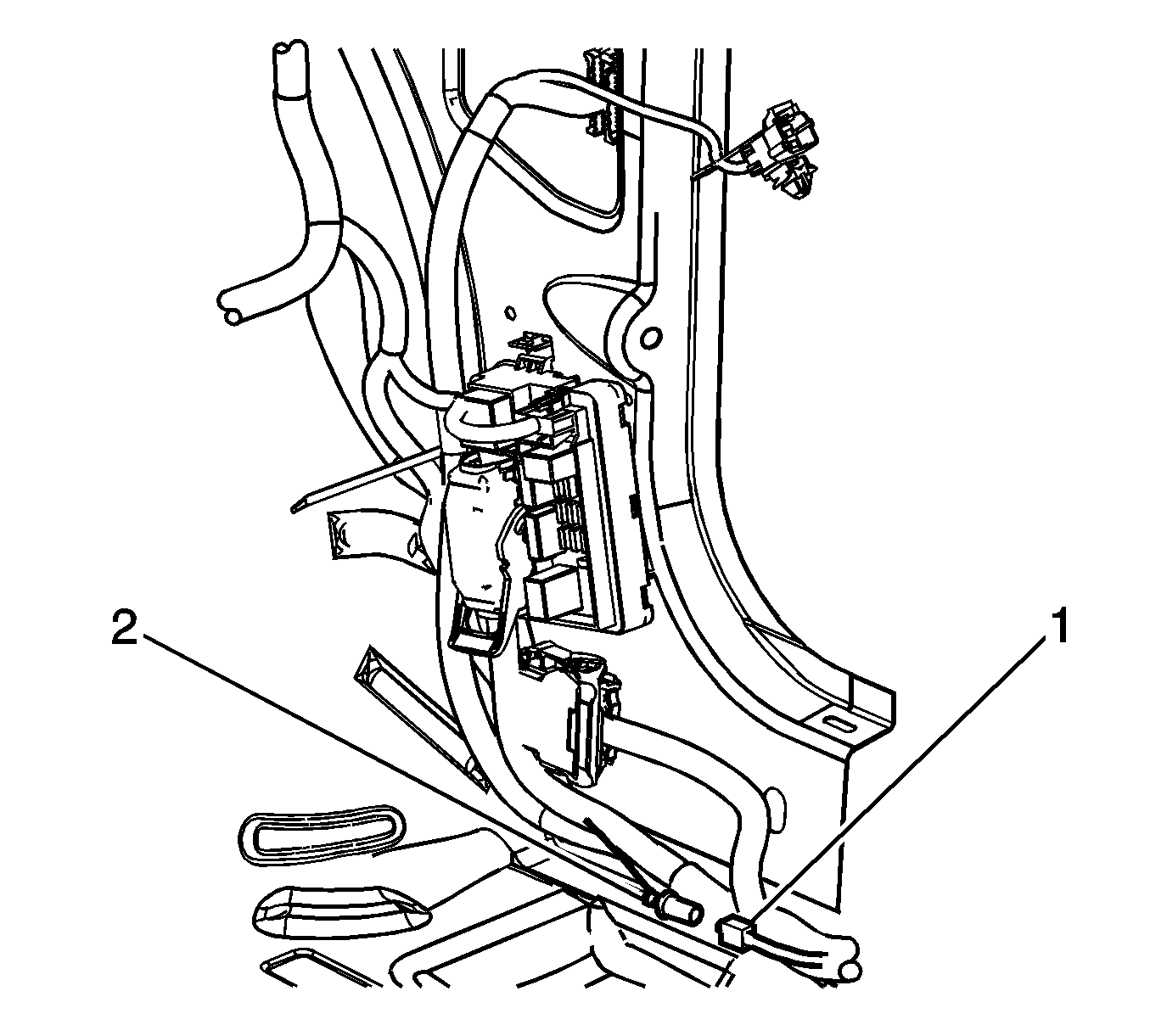

    2. Fig 1: Identifying Antenna Cable & Antenna Extension Cable
    GM1778655Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The antenna cable uses a sliding snap-lock. Holding the sliding lock feature will prevent installation.
  2. Connect the antenna extension cable (2) from the radio to the antenna cable (1) near the kick panel:
    1. Position the antenna extension cable behind the sliding lock feature.
    2. Install the antenna extension cable to the sliding lock feature.
  3. Install the carpet.
  4. Install the right lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
  5. Install the right carpet retainers. Refer to Front Carpet Retainer Replacement (Impala) or Front Carpet Retainer Replacement (Monte Carlo) .

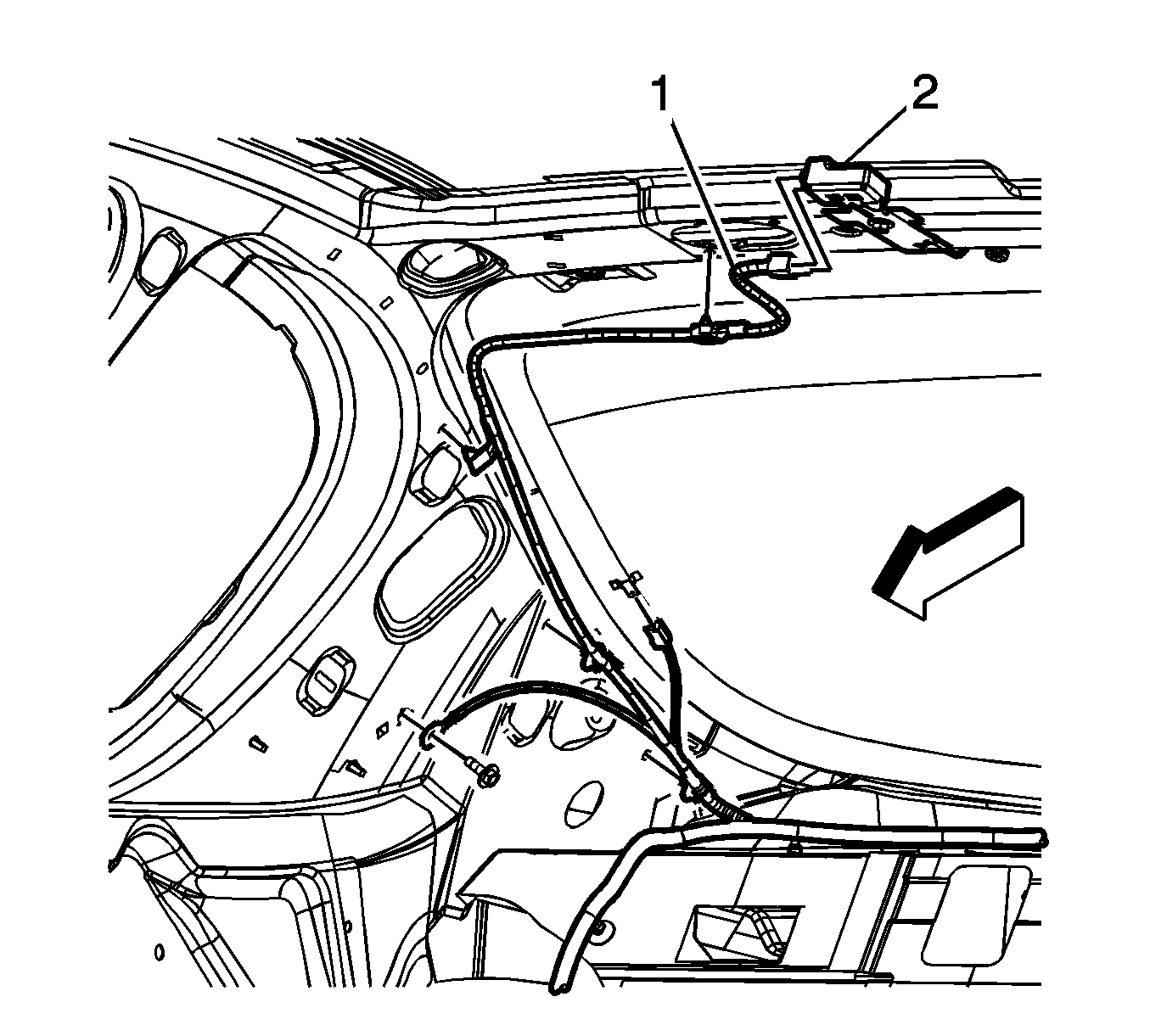

    6. Fig 2: Identifying Antenna Cable & Radio Antenna Module
    GM1778658Courtesy of GENERAL MOTORS CORP.
  6. Install the rear seat back. Refer to Seat Back Replacement - Rear (Impala) or Seat Back Replacement - Rear (Monte Carlo) .
  7. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Impala) or Rear Seat Cushion Replacement (Monte Carlo) .
    8. IMPORTANT: The antenna cable uses a sliding snap-lock. Holding the sliding lock feature will prevent installation.
  8. Connect the antenna cable (1) to the radio antenna module (2):
    1. Position the antenna cable behind the sliding lock feature.
    2. Install the antenna cable to the sliding lock feature.
  9. Install the rear upper quarter trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Impala) or Rear Quarter Upper Trim Panel Replacement (Monte Carlo) .
