Installation Procedure

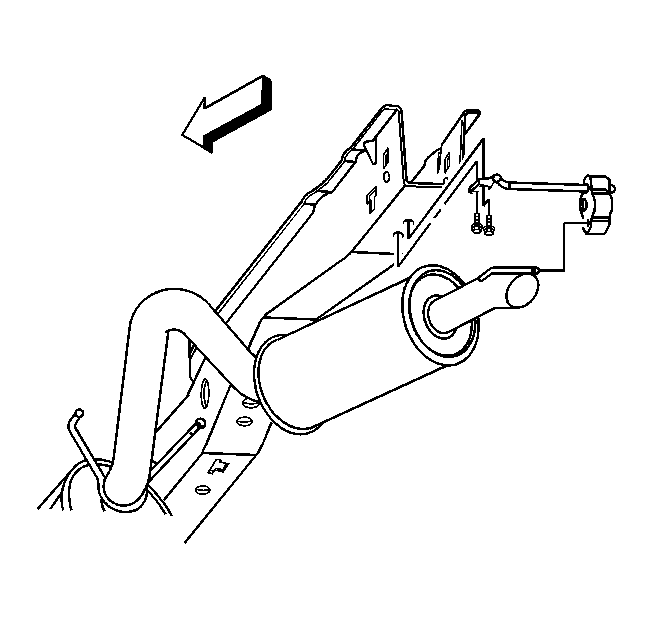

Fig 1: Removing/Installing Tail Pipe Hanger

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the tail pipe hanger and bolts, if required.
Tighten: Tighten the bolts to 35 N.m (26 lb ft).

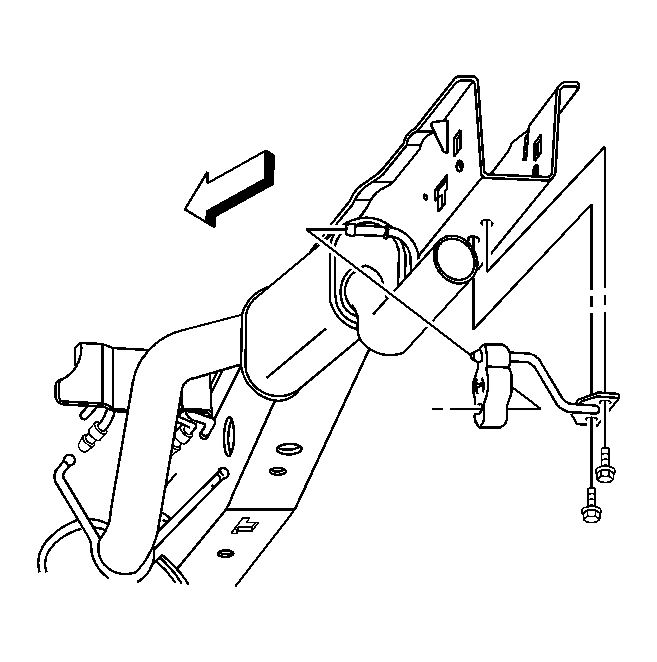

Fig 2: Removing/Installing Tail Pipe Hanger

Courtesy of GENERAL MOTORS CORP.

Install the tail pipe hanger and bolts, if required.
Tighten: Tighten the bolts to 35 N.m (26 lb ft).

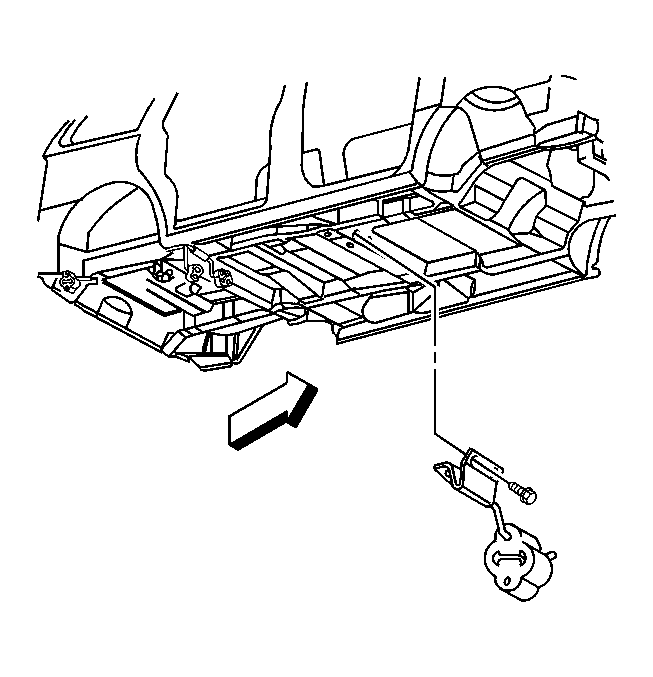

Fig 3: Removing/Installing Catalytic Converter Hanger

Courtesy of GENERAL MOTORS CORP.

Install the catalytic converter hanger and bolts, if required.
Tighten: Tighten the bolts to 35 N.m (26 lb ft).

Fig 4: Removing/Installing Exhaust Hanger

Courtesy of GENERAL MOTORS CORP.

Install the exhaust system hanger (1) and bolts (2), if required.
Tighten: Tighten the bolts to 35 N.m (26 lb ft).

Fig 5: Locating Exhaust Hangers

Courtesy of GENERAL MOTORS CORP.

Install the exhaust insulators (1) to the exhaust system (2) and the hanger bracket(s) as required.
Lower the vehicle.
