Installation Procedure

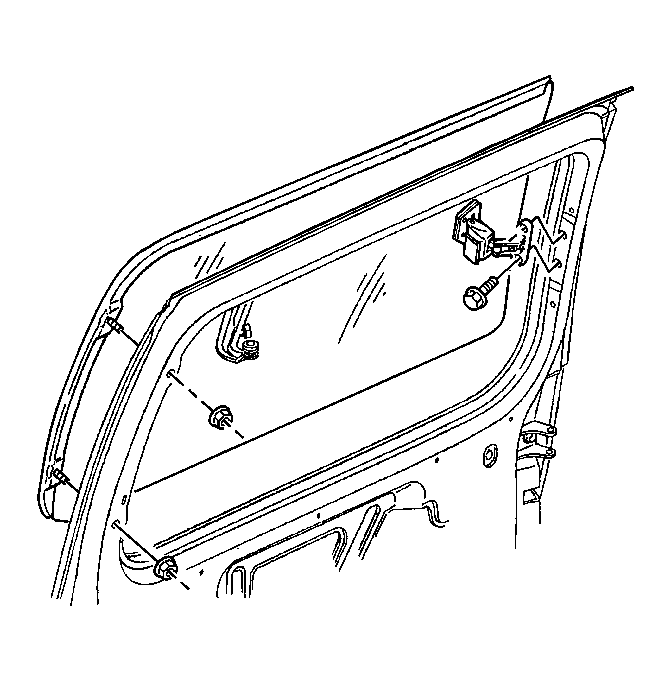

Fig 1: View Of Swing-Out Window

Courtesy of GENERAL MOTORS CORP.

Install the swing-out window to the sliding door.

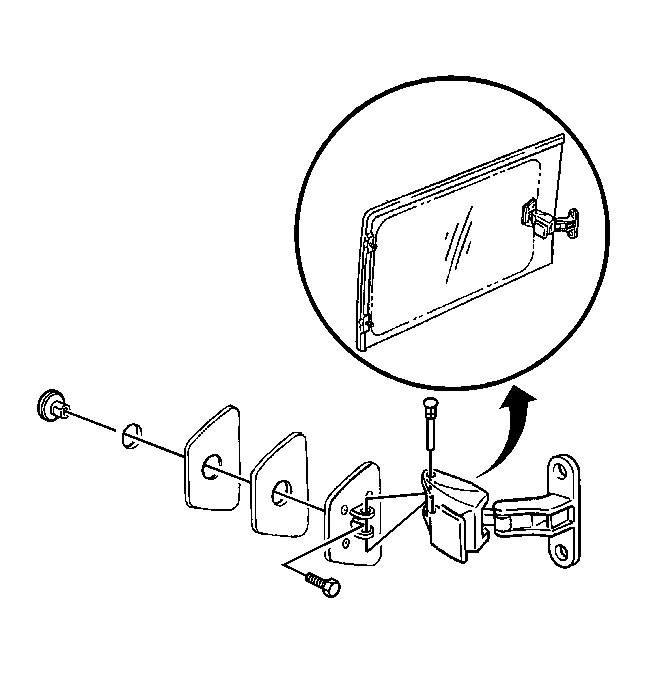

Fig 2: Locating Swing-Out Window Latch Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the studs nuts to the swing-out window hinge.
Tighten: Tighten the nuts to 10 N.m (89 lb in).
Install the swing-out window latch screws.
Tighten: Tighten the screws to 10 N.m (89 lb in).

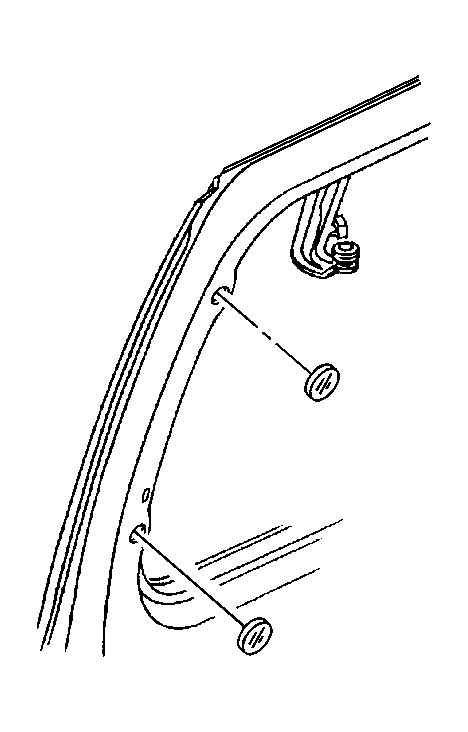

Fig 3: Locating Plugs For Swing-Out Window Access Hole

Courtesy of GENERAL MOTORS CORP.

Press the plugs into the swing-out window access hole on the sliding door until fully seated.
Install the sliding door garnish molding. Refer to Rear Side Door Garnish Molding Replacement .

IMPORTANT: By installing the 15A fuse, the low current logic power will be restored to both the LH and RH PSDMs and the PSDs will be operational. However, both PSDMs will have to learn the full open and full closed positions of the PSD. Refer to Rear Side Door Actuator Control Module Programming and Setup .

If equipped with a power sliding door, enable the PSD system by installing the PSD 15A fuse into the I/P fuse block.
