Installation Procedure

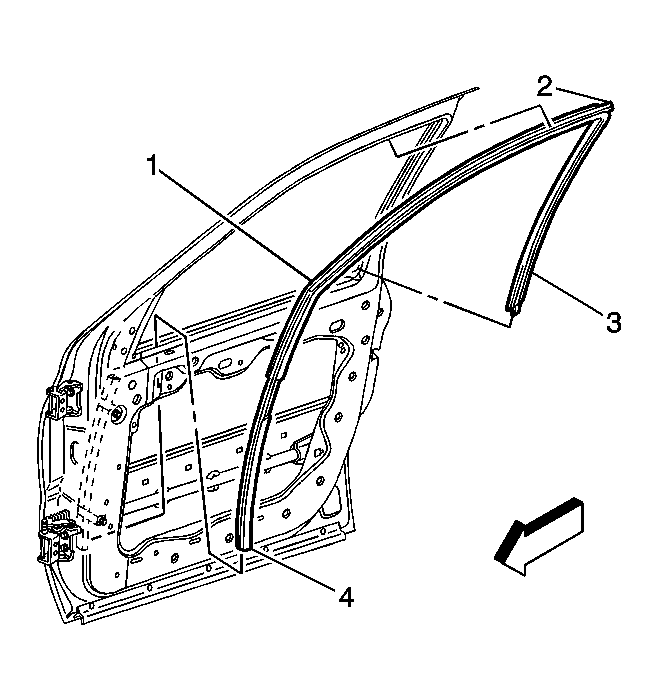

    Fig 1: Identifying Front Door Weatherstrip
    GM1502968Courtesy of GENERAL MOTORS CORP.
  1. Position the front weatherstrip edge (4) to the door frame channel.
  2. Secure the weatherstrip beginning at (4) and working around the inside of the window frame back to (3).
  3. Ensure the weatherstrip at (1, 2) is secured to the corners of the upper window frame.
  4. Install the front door window. Refer to Front Side Door Window Replacement .
  5. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  6. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
