Radio/Navigation System Schematics (Base)

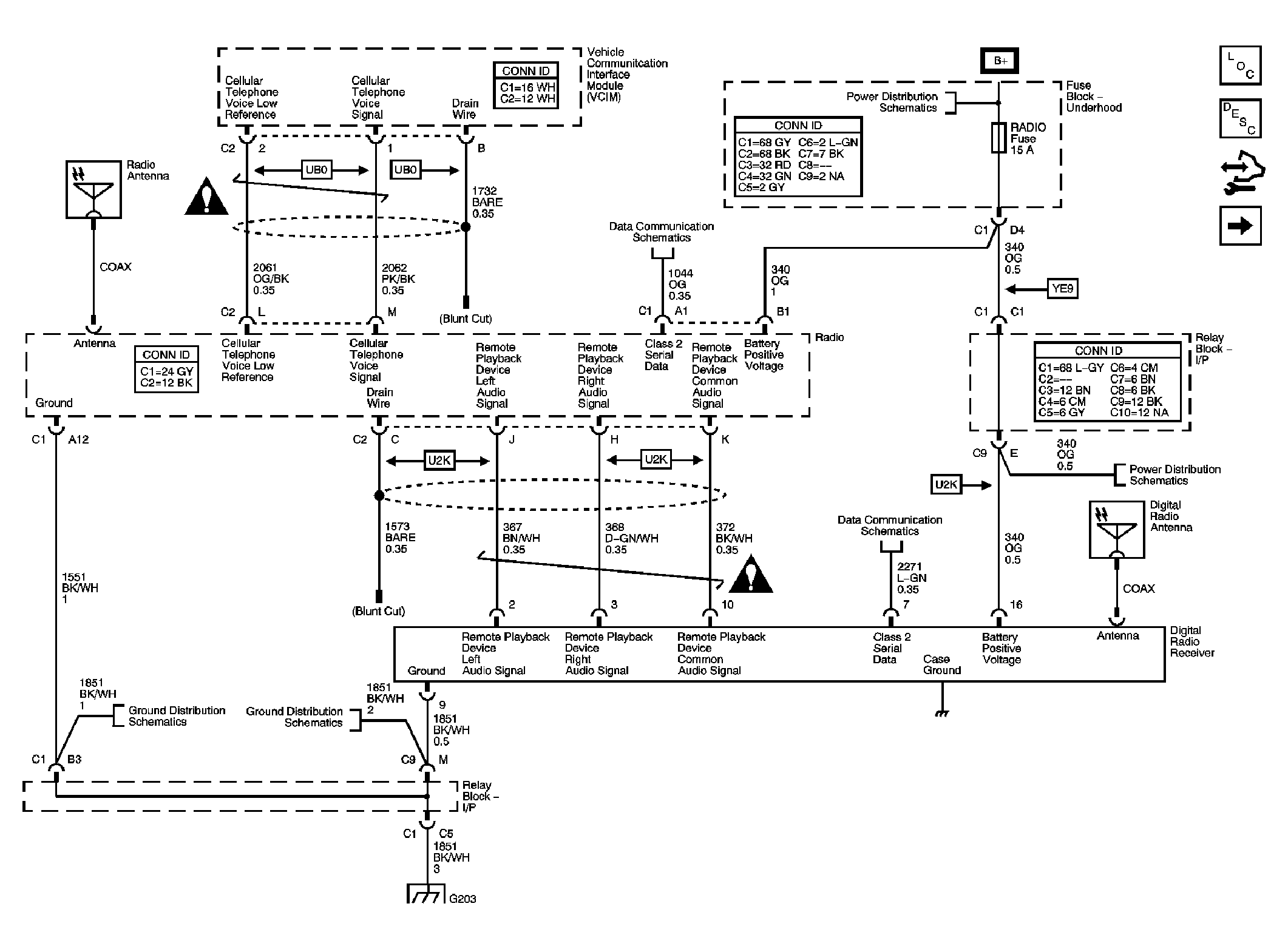

Fig 1: Power, Ground, Serial Data, and Digital Radio

GM1779100

Courtesy of GENERAL MOTORS CORP.

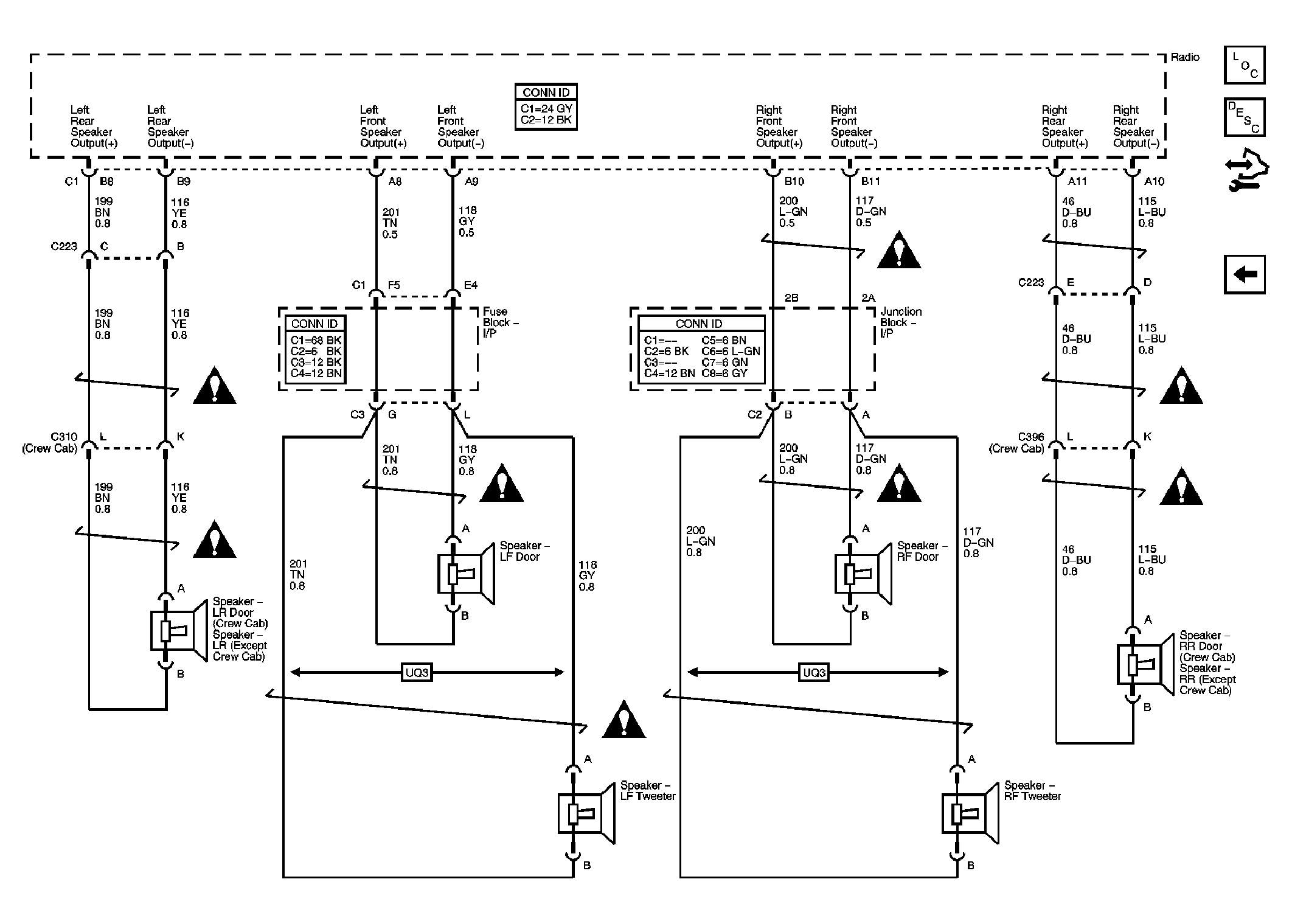

Fig 2: Speakers

GM1779110

Courtesy of GENERAL MOTORS CORP.
