Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| J100 | In forward lamp harness. See Figure. |
| J101 | In forward lamp harness. See Figure. |

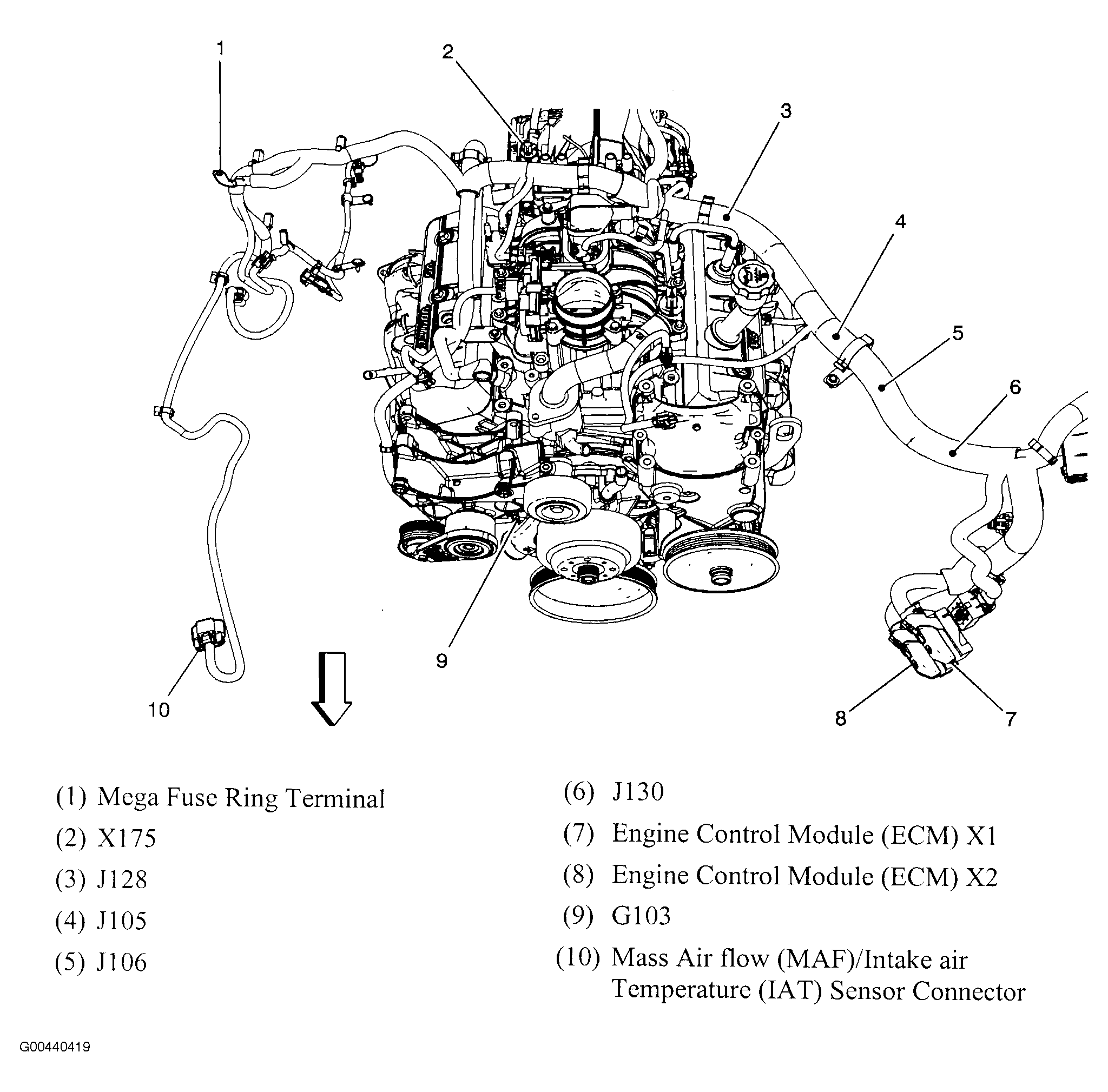

| J105 (4.3L) | In engine harness, 12 cm (4.72 in) from ECT sensor breakout. See Figure. |
| J105 (4.8L, 5.3L, 6.0L & 6.2L | In engine harness, 12 cm (4.72 in) from ECT sensor breakout. |
| J106 (4.3L) | In engine harness, 23 cm (9.02 in) from MAP sensor breakout. See Figure. |
| J106 (4.8L, 5.3L, 6.0L & 6.2L) | In engine harness, 23 cm (9.02 in) from MAP sensor breakout. See Figure. |

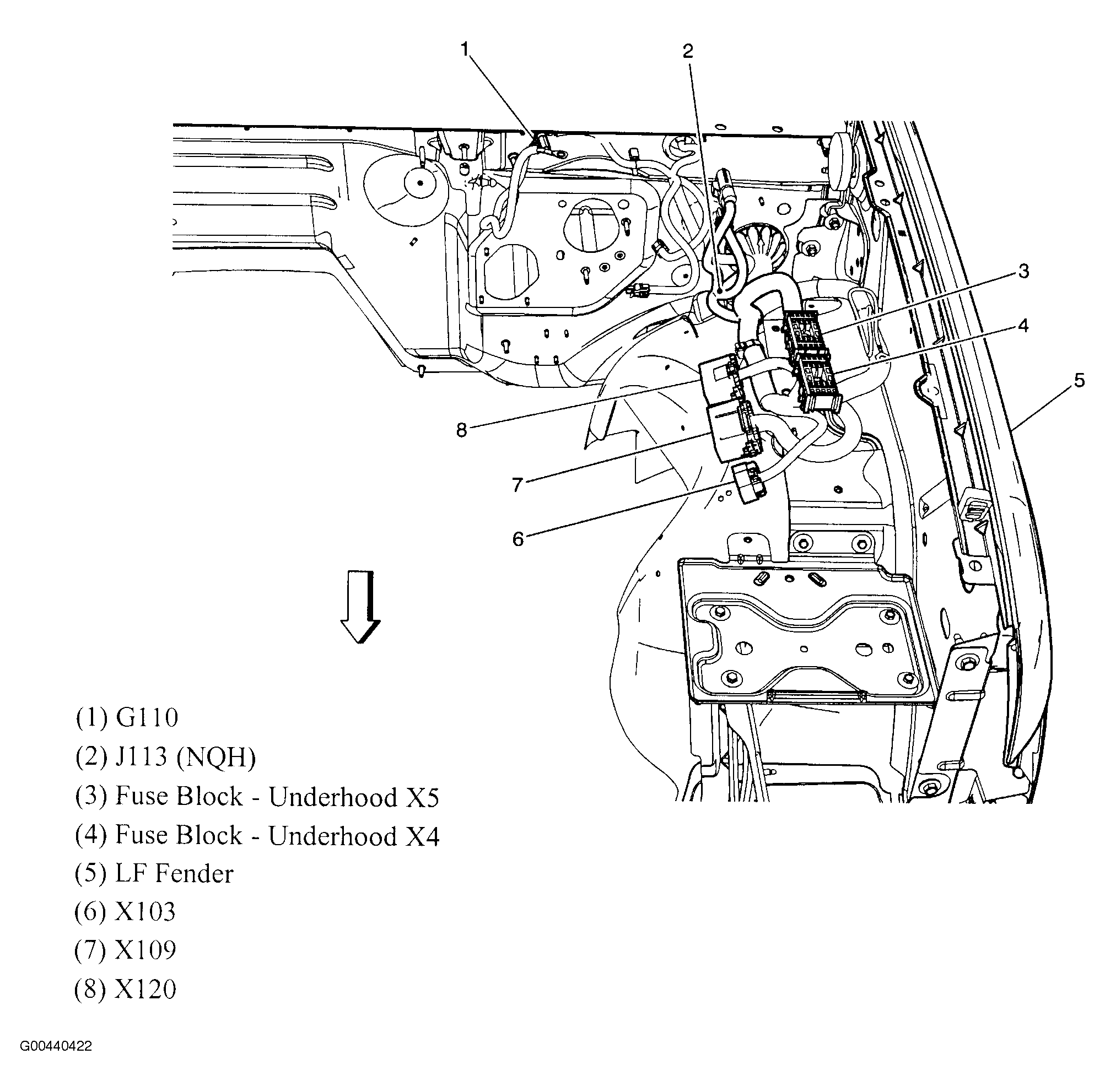

| J113 | In I/P harness, in C103 breakout 7 cm (2.76 in) from main harness assembly. See Figure. |
| J128 (4.3L) | In engine harness. See Figure. |
| J130 (4.3L) | In engine harness. See Figure. |
| J200 | In I/P harness, 14 cm (5.51 in) from left I/P junction block breakout. See Figure. |
| J201 | In I/P harness, in headlamp & dimmer switch breakout. See Figure. |
| J203 | In I/P harness, 13 cm (5.12 in) from radio connector (or DIC) breakout. See Figure. |
| J206 | In I/P harness, 14 cm (5.51 in) from C207 breakout. See Figure. |
| J207 | In I/P harness, 9 cm (3.54 in) from main harness assembly breakout. See Figure. |

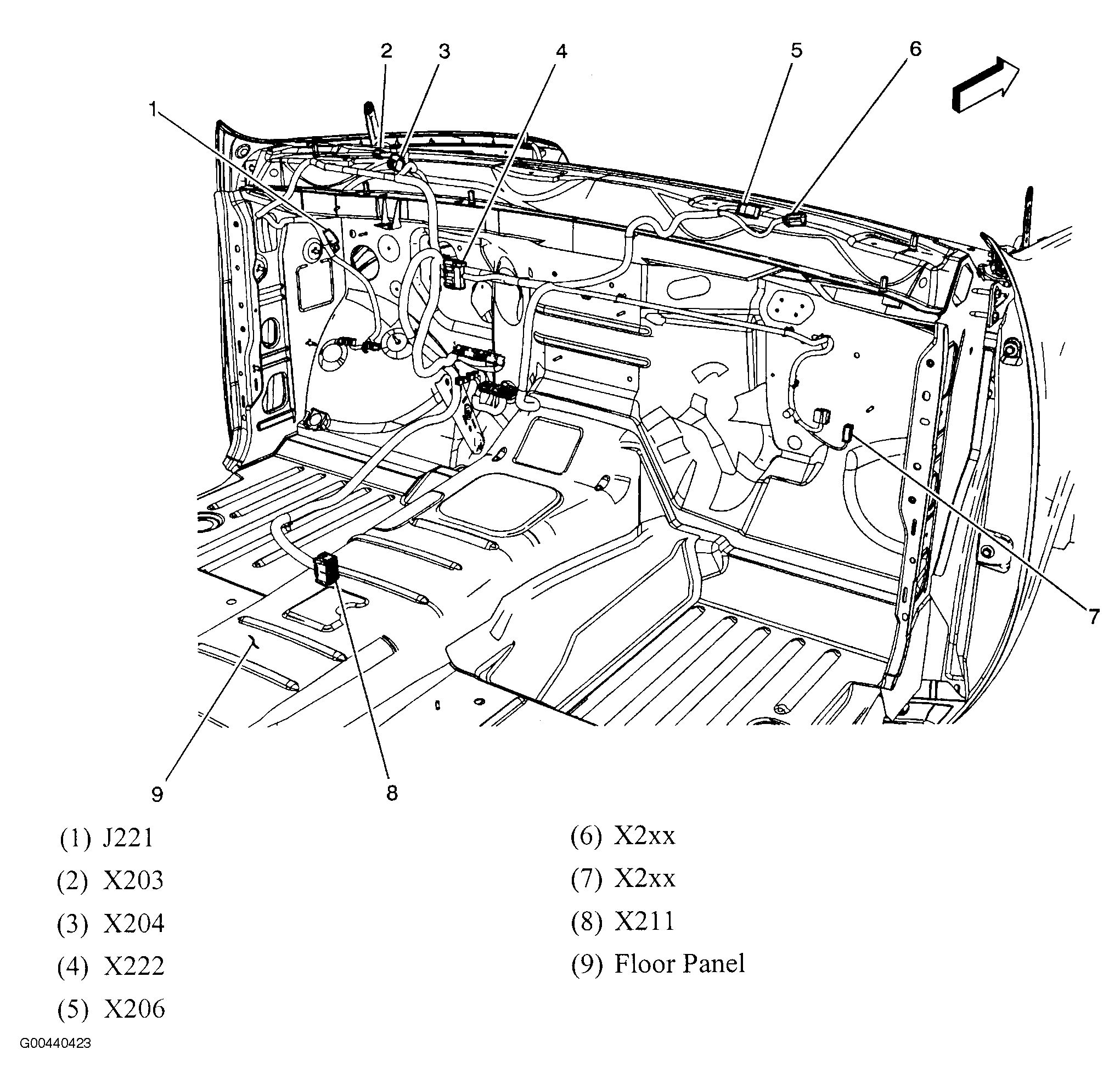

| J221 | In I/P harness. See Figure. |
| J300 | In chassis harness, 15 cm (5.91 in ) from G300 breakout. See Figure. |
| J301 | In body harness. See Figure. |
| J302 | In body harness, 22 cm (8.66 in) from G301 breakout. See Figure. |
| J303 | In body harness, 30 cm (11.8 in) from G301 breakout below center console. See Figure. |
| J304 | In body harness, 14 cm (5.51 in) from passenger seat in-line connector breakout. See Figure. |
| J327 | In headliner harness, 15 cm from front inside air temperature sensor breakout. See Figure. |
| J328 | In headliner harness, 5 cm from front inside air temperature sensor breakout. See Figure. |
| J331 | In chassis harness. See Figure. |
| J335 | In auxiliary window harness. See Figure. |
| J336 | In auxiliary window harness. See Figure. |
| J338 (4.3L) | In chassis harness. See Figure. |
| J339 | Splice pack in body harness. See Figure. |
| J403 | License lamp harness, 28 cm from left rear object sensors. See Figure. |
| J404 | License lamp harness, 20 cm from right rear object sensors. See Figure. |
| J420 | In camper harness. See Figure. |
