Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Below Left Side Of Dash

G00440355

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Side Of Engine Compartment

G00440356

Courtesy of GENERAL MOTORS CORP.

Fig 3: Steering Column

G00440357

Courtesy of GENERAL MOTORS CORP.

Fig 4: Under Front Seats

G00440358

Courtesy of GENERAL MOTORS CORP.

Fig 5: Under Left Side Of Vehicle (E85)

G00440359

Courtesy of GENERAL MOTORS CORP.

Fig 6: Front Wheel Speed Sensors

G00440360

Courtesy of GENERAL MOTORS CORP.

Fig 7: Rear Wheel Speed Sensors

G00440361

Courtesy of GENERAL MOTORS CORP.

Fig 8: Automatic Transmission (4L60-E)

G00440362

Courtesy of GENERAL MOTORS CORP.

Fig 9: Transmission (4L60-E)

G00440363

Courtesy of GENERAL MOTORS CORP.

Fig 10: Transfer Case

G00440364

Courtesy of GENERAL MOTORS CORP.

Fig 11: Transmission Control Module (Allison)

G00440365

Courtesy of GENERAL MOTORS CORP.

Fig 12: Front Headliner

G00440366

Courtesy of GENERAL MOTORS CORP.

Fig 13: Driver Door

G00440367

Courtesy of GENERAL MOTORS CORP.

Fig 14: Passenger Door

G00440368

Courtesy of GENERAL MOTORS CORP.

Fig 15: Left Rear Door (Crew Cab)

G00440369

Courtesy of GENERAL MOTORS CORP.

Fig 16: Right Rear Door (Crew Cab)

G00440370

Courtesy of GENERAL MOTORS CORP.

Fig 17: Lower Left Side Of Dash

G00440371

Courtesy of GENERAL MOTORS CORP.

Fig 18: Lower Left Side Of Dash

G00440372

Courtesy of GENERAL MOTORS CORP.

Fig 19: Left Rear Of Vehicle

G00440373

Courtesy of GENERAL MOTORS CORP.

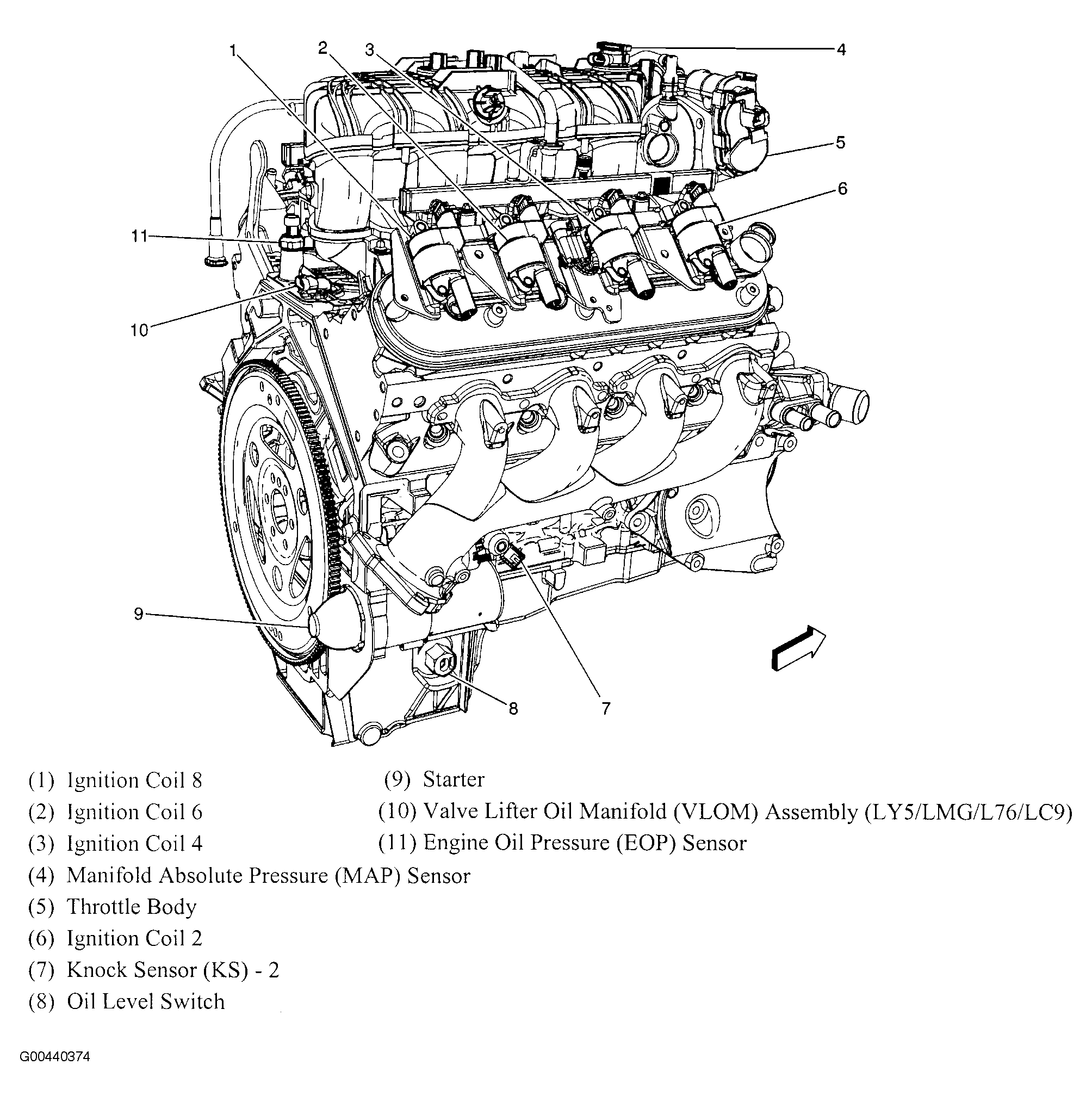

Fig 20: Right Side Of Engine (4.8L, 5.3L, 6.0L & 6.2L)

G00440374

Courtesy of GENERAL MOTORS CORP.

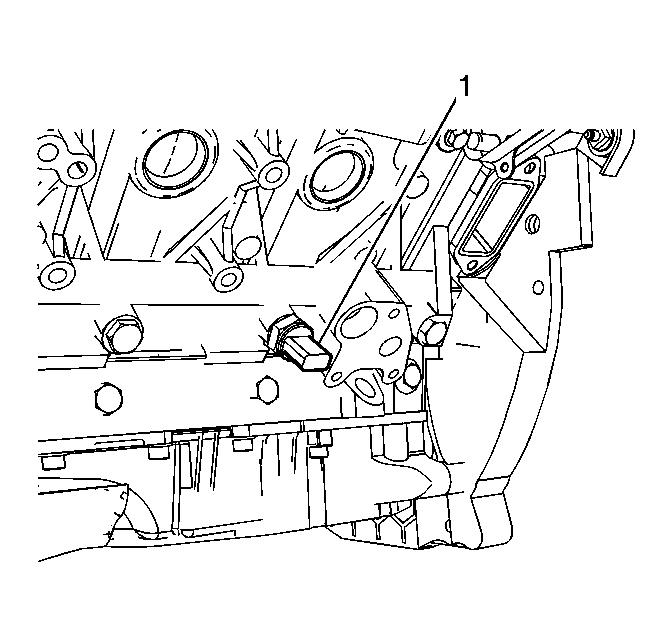

Fig 21: View Of Oil Pressure Sensor (6.6L)

GM1364822

Courtesy of GENERAL MOTORS CORP.

Fig 22: Top Of Engine (4.8L, 5.3L, 6.0L & 6.2L)

G00440375

Courtesy of GENERAL MOTORS CORP.

Fig 23: Front Of Engine (4.8L, 5.3L, 6.0L & 6.2L)

G00440376

Courtesy of GENERAL MOTORS CORP.

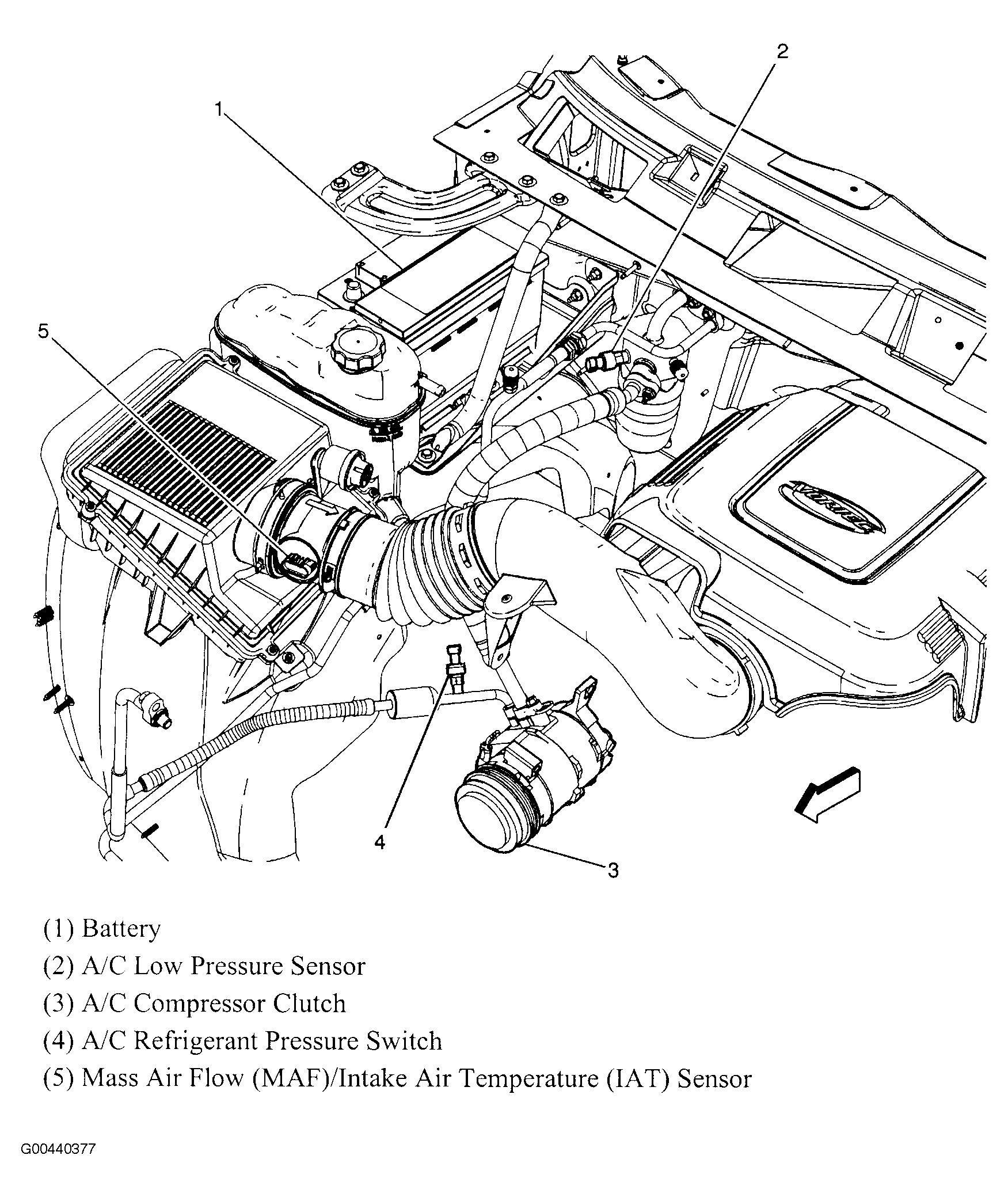

Fig 24: Engine Compartment (4.8L, 5.3L, 6.0L & 6.2L)

G00440377

Courtesy of GENERAL MOTORS CORP.

Fig 25: Crankshaft Position Sensor, Knock Sensor & Oil Level Sensor Locations (4.8L, 5.3L, 6.0L & 6.2L)

GM1698087

Courtesy of GENERAL MOTORS CORP.

Fig 26: Under Rear Of Vehicle

G00440378

Courtesy of GENERAL MOTORS CORP.

Fig 27: Under Rear Of Vehicle (Short Wheel Base)

G00440379

Courtesy of GENERAL MOTORS CORP.

Fig 28: Engine Cooling Fans (10 Series)

G00440380

Courtesy of GENERAL MOTORS CORP.

Fig 29: Left Rear Door (Extended Cab)

G00440381

Courtesy of GENERAL MOTORS CORP.

Fig 30: Right Rear Door (Extended Cab)

G00440382

Courtesy of GENERAL MOTORS CORP.

Fig 31: Right Rear Of Passenger Compartment

G00440383

Courtesy of GENERAL MOTORS CORP.

Fig 32: Roof Rail Air Bags (Extended Cab & Crew Cab)

G00440384

Courtesy of GENERAL MOTORS CORP.

Fig 33: HVAC Module (CJ2)

G00440385

Courtesy of GENERAL MOTORS CORP.

Fig 34: HVAC Module (C67)

G00440386

Courtesy of GENERAL MOTORS CORP.

Fig 35: Horns

G00440387

Courtesy of GENERAL MOTORS CORP.

Fig 36: Park Brake Assembly

G00440388

Courtesy of GENERAL MOTORS CORP.

Fig 37: Front Of Vehicle

G00440389

Courtesy of GENERAL MOTORS CORP.

Fig 38: Rear Of Vehicle

G00440390

Courtesy of GENERAL MOTORS CORP.

Fig 39: Driver Seat

G00440391

Courtesy of GENERAL MOTORS CORP.

Fig 40: Passenger Seat

G00440392

Courtesy of GENERAL MOTORS CORP.

Fig 41: Left Rear Of Passenger Compartment

G00440393

Courtesy of GENERAL MOTORS CORP.

Fig 42: Driver's Seat

G00440394

Courtesy of GENERAL MOTORS CORP.

Fig 43: Passenger Seat

G00440395

Courtesy of GENERAL MOTORS CORP.

Fig 44: Front Of Vehicle

G00440396

Courtesy of GENERAL MOTORS CORP.

Fig 45: Roof Rail Air Bags (Regular Cab)

G00440397

Courtesy of GENERAL MOTORS CORP.

Fig 46: Rear Of Vehicle

G00440398

Courtesy of GENERAL MOTORS CORP.

Fig 47: Transfer Case (NQG)

G00440399

Courtesy of GENERAL MOTORS CORP.

Fig 48: Front Axle

G00440400

Courtesy of GENERAL MOTORS CORP.

Fig 49: Transfer Case (NQH)

G00440401

Courtesy of GENERAL MOTORS CORP.

Fig 50: Engine Compartment

G00440402

Courtesy of GENERAL MOTORS CORP.

Fig 51: Right Side Of Dash

G00440403

Courtesy of GENERAL MOTORS CORP.

Fig 52: Front Of Vehicle

G00440404

Courtesy of GENERAL MOTORS CORP.

Fig 53: Lower Front Of Engine

G00440405

Courtesy of GENERAL MOTORS CORP.

Fig 54: Front Of Engine

G00440406

Courtesy of GENERAL MOTORS CORP.

Fig 55: Left Rear Of Engine Compartment

G00440407

Courtesy of GENERAL MOTORS CORP.

Fig 56: Left Front Of Passenger Compartment

G00440408

Courtesy of GENERAL MOTORS CORP.

Fig 57: Under Left Side Of Vehicle

G00440409

Courtesy of GENERAL MOTORS CORP.

Fig 58: Passenger Compartment Floor

G00440410

Courtesy of GENERAL MOTORS CORP.

Fig 59: Front Of Engine Compartment (6.6L)

G00440412

Courtesy of GENERAL MOTORS CORP.

Fig 60: Top Of Engine (6.6L)

G00440413

Courtesy of GENERAL MOTORS CORP.

Fig 61: Engine Compartment (6.6L)

G00440414

Courtesy of GENERAL MOTORS CORP.

Fig 62: Right Side Of Engine (6.6L)

G00440415

Courtesy of GENERAL MOTORS CORP.

Fig 63: Left Side Of Engine (6.6L)

G00440416

Courtesy of GENERAL MOTORS CORP.

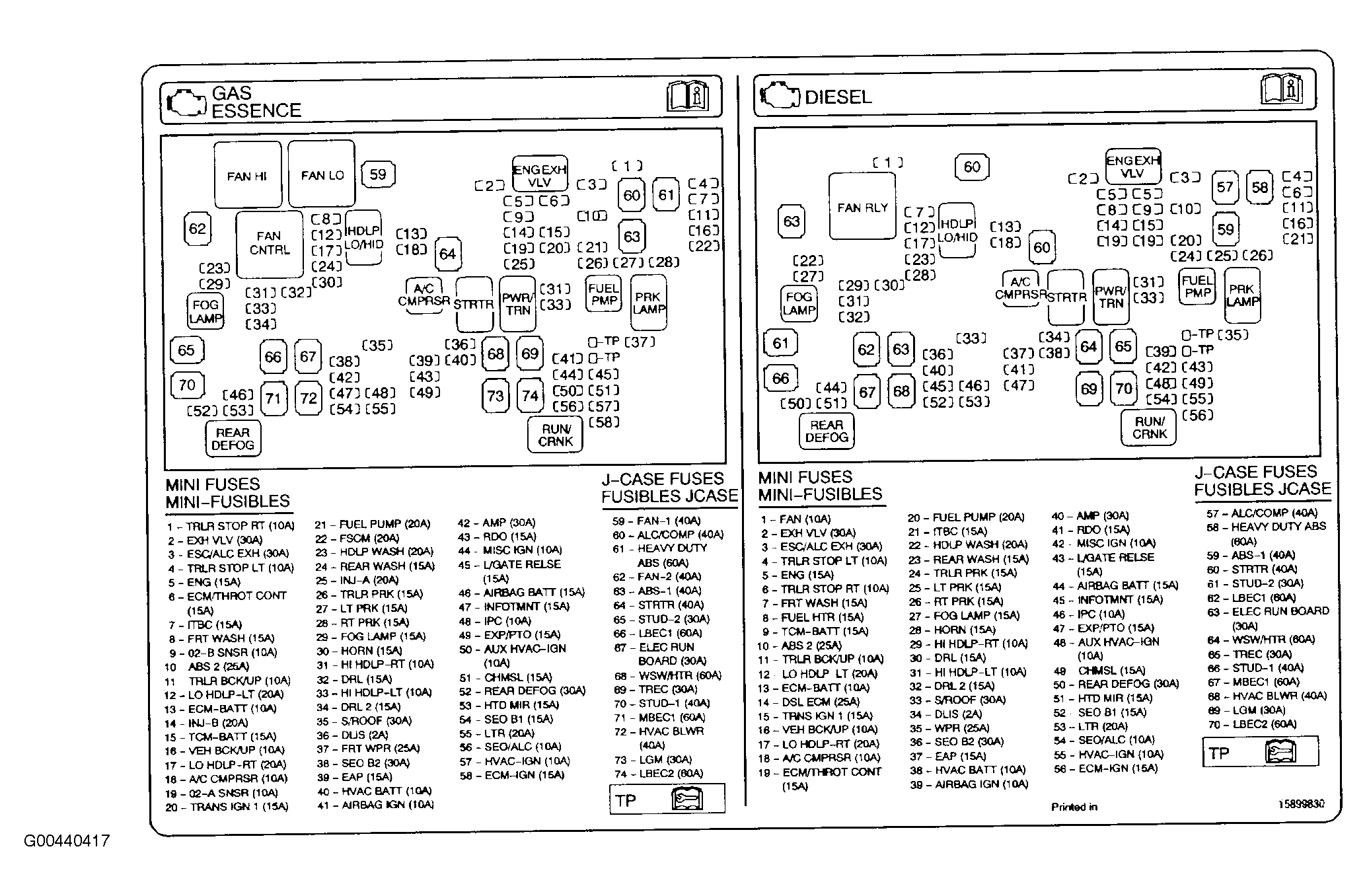

Fig 64: Underhood Fuse Block

G00440417

Courtesy of GENERAL MOTORS CORP.

Fig 65: Front Of Vehicle (Except 6.6L)

G00440418

Courtesy of GENERAL MOTORS CORP.

Fig 66: Top Of Engine (4.3L)

G00440419

Courtesy of GENERAL MOTORS CORP.

Fig 67: Left Side Of Engine (4.3L)

G00440420

Courtesy of GENERAL MOTORS CORP.

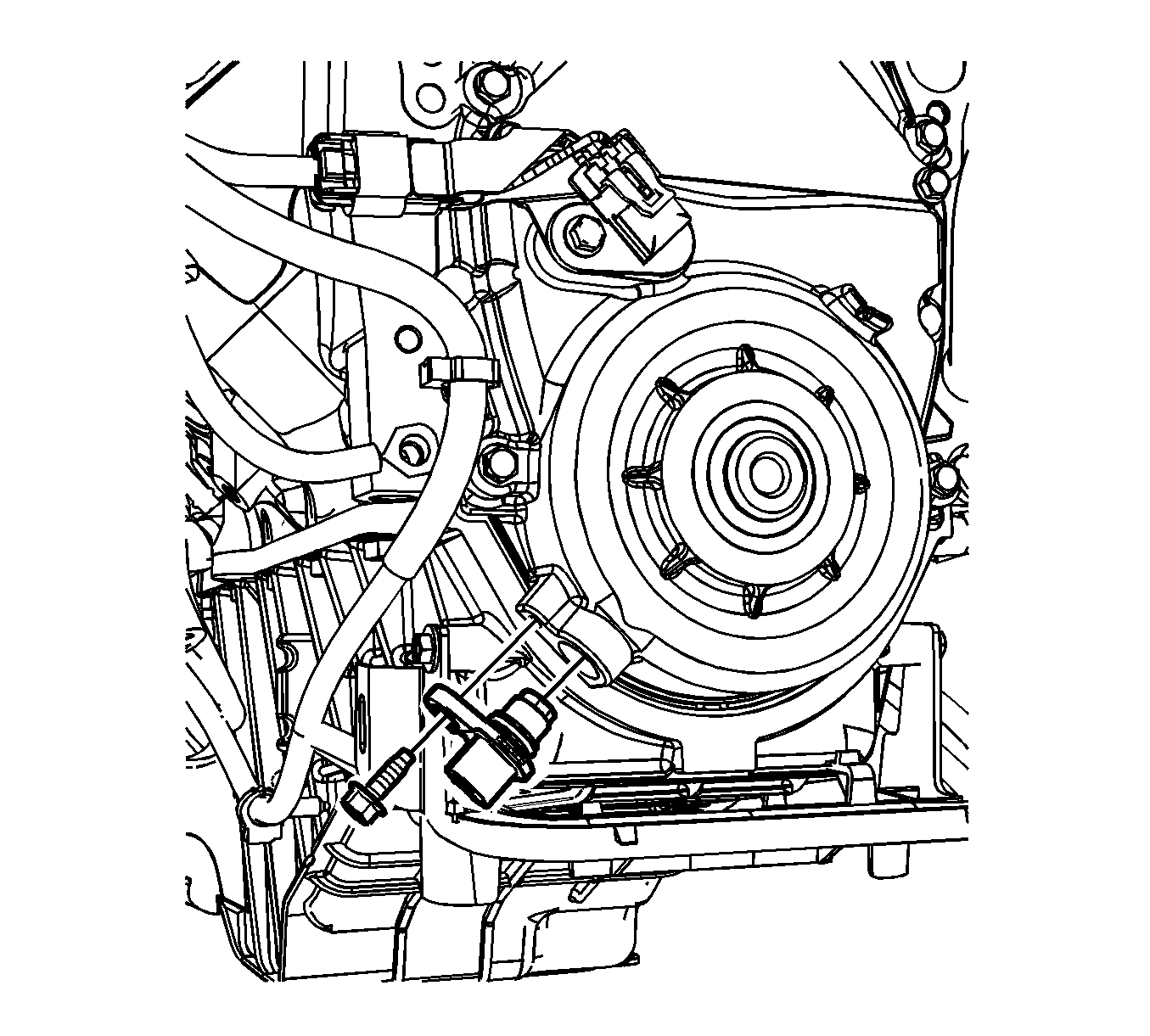

Fig 68: CKP Sensor Bolt And Sensor (4.3L)

GM1877536

Courtesy of GENERAL MOTORS CORP.

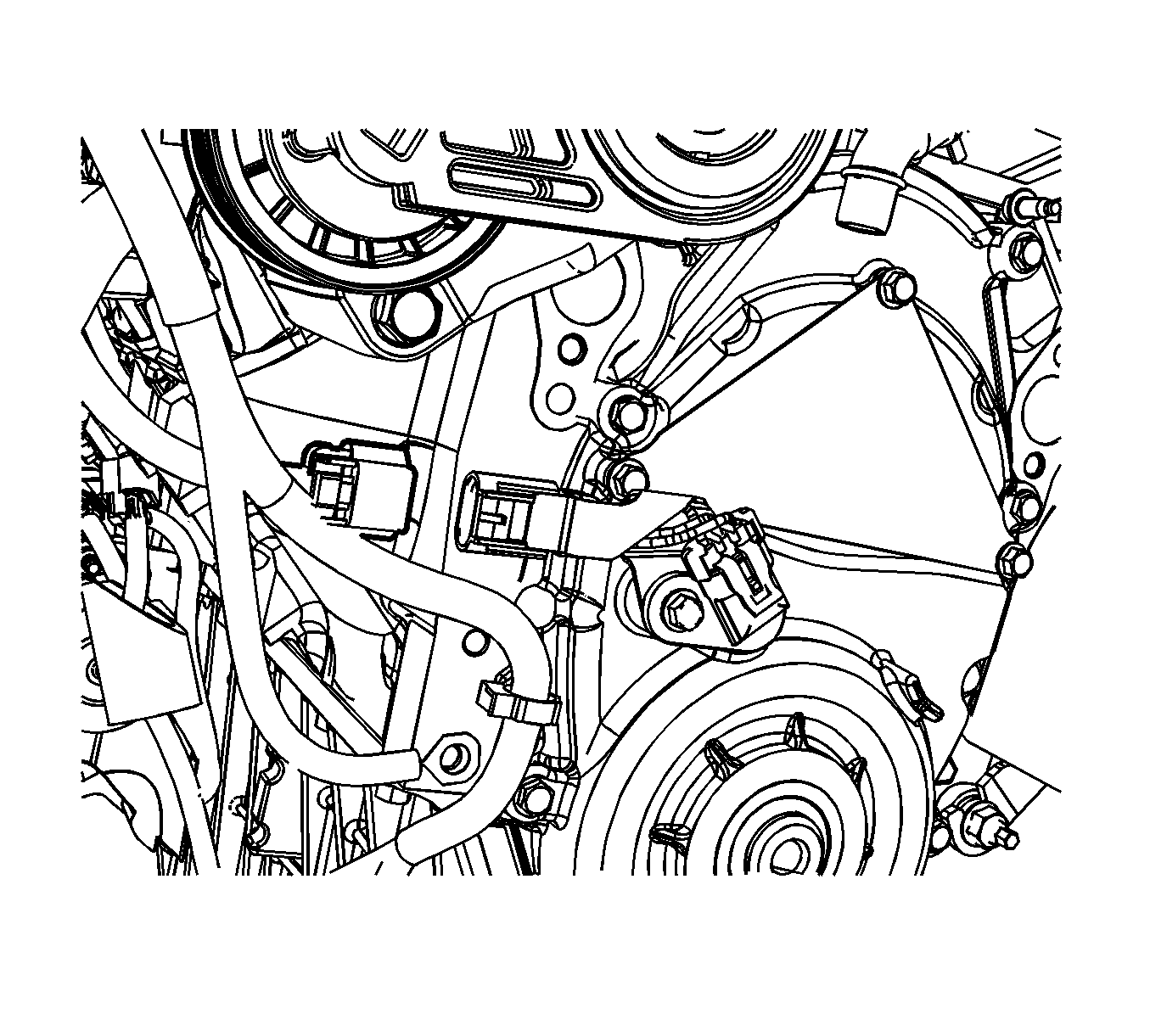

Fig 69: Camshaft Position (CMP) Sensor Wiring Harness Jumper (4.3L)

GM1877593

Courtesy of GENERAL MOTORS CORP.

Fig 70: View Of TP Sensor, IAC Motor, ECT Sensor (5), Control Port Injector Module & Engine Harness Clip Bolt (4.3L)

GM782174

Courtesy of GENERAL MOTORS CORP.

Fig 71: Knock Sensor & Retaining Bolt (4.3L)

GM679284

Courtesy of GENERAL MOTORS CORP.

Fig 72: Engine (4.8L, 5.3L, 6.0L & 6.2L)

G00440421

Courtesy of GENERAL MOTORS CORP.

Fig 73: Engine Compartment

G00440422

Courtesy of GENERAL MOTORS CORP.

Fig 74: Front Of Passenger Compartment

G00440423

Courtesy of GENERAL MOTORS CORP.

Fig 75: Front Of Passenger Compartment (Base)

G00440424

Courtesy of GENERAL MOTORS CORP.

Fig 76: Console

G00440425

Courtesy of GENERAL MOTORS CORP.

Fig 77: Passenger Compartment (Regular Cab)

G00440426

Courtesy of GENERAL MOTORS CORP.

Fig 78: Passenger Compartment (Extended Cab) (1 Of 2)

G00440427

Courtesy of GENERAL MOTORS CORP.

Fig 79: Passenger Compartment (Extended Cab) (2 Of 2)

G00440428

Courtesy of GENERAL MOTORS CORP.

Fig 80: Passenger Compartment (Crew Cab) (1 Of 2)

G00440429

Courtesy of GENERAL MOTORS CORP.

Fig 81: Passenger Compartment (Crew Cab) (2 Of 2)

G00440430

Courtesy of GENERAL MOTORS CORP.

Fig 82: Crew Cab Headliner (Extended Cab/Regular Cab Similar)

G00440431

Courtesy of GENERAL MOTORS CORP.

Fig 83: Chassis Harness (Crew Cab Shown, Regular & Extended Cab Similar)

G00440432

Courtesy of GENERAL MOTORS CORP.

Fig 84: Right Rear Of Passenger Compartment

G00440433

Courtesy of GENERAL MOTORS CORP.

Fig 85: Rear Bumper

G00440434

Courtesy of GENERAL MOTORS CORP.
