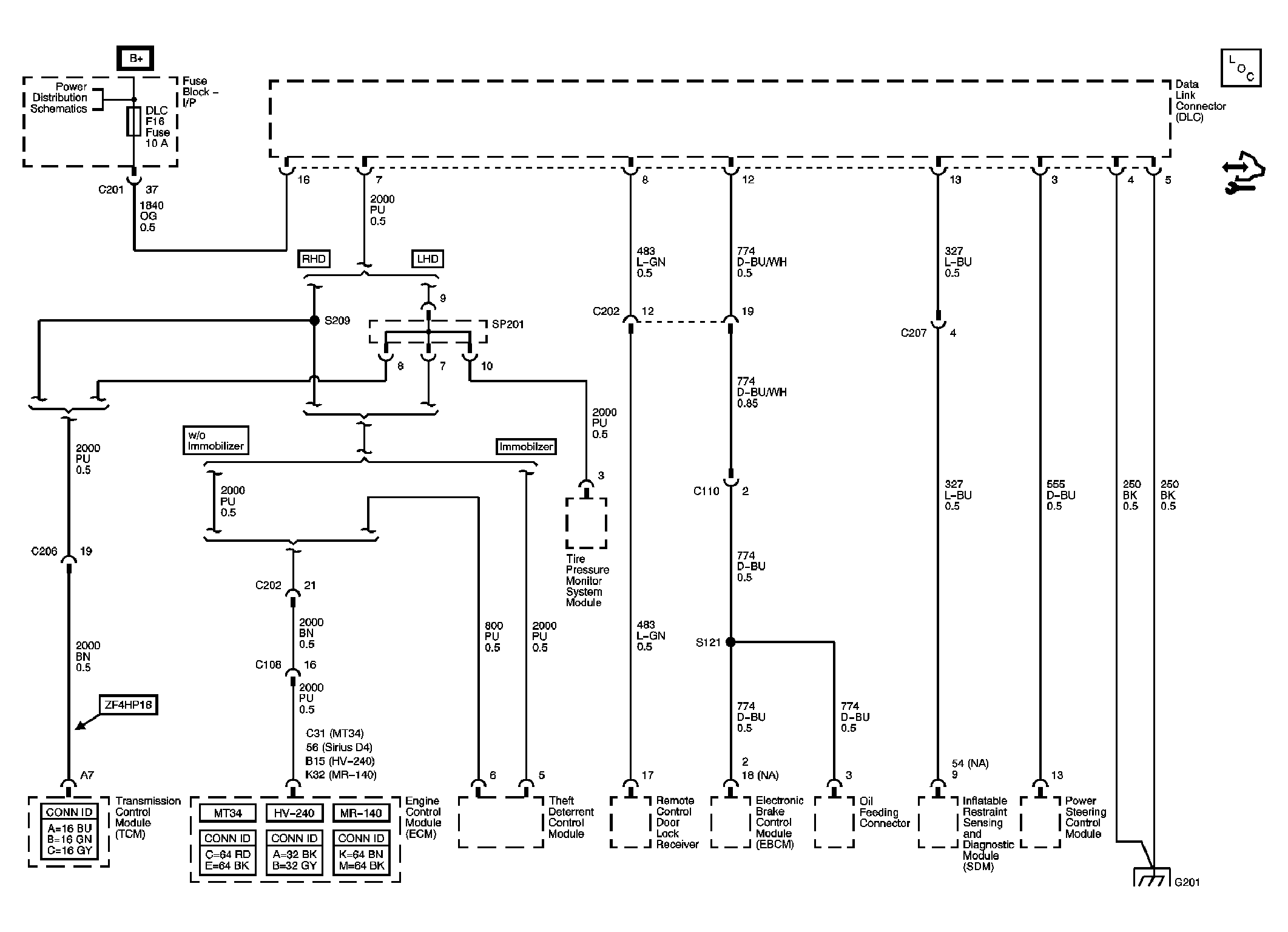

Home >> Chevrolet >> 2007 >> Optra5 LT, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Communications >> Schematic and Routing Diagrams >> Data Communication Schematics
