Removal Procedure

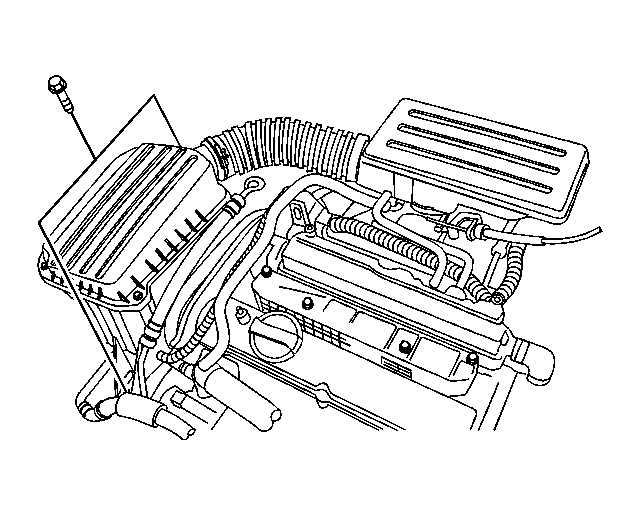

    Fig 1: View Of Air Cleaner Housing Bolts
    GM1701820Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine cover.
  2. Remove the air cleaner housing bolts.
  3. Loosen the clamps.
  4. Remove the breather tube from the camshaft cover.
  5. Remove the air cleaner housing.
