Antilock Brake System Schematics

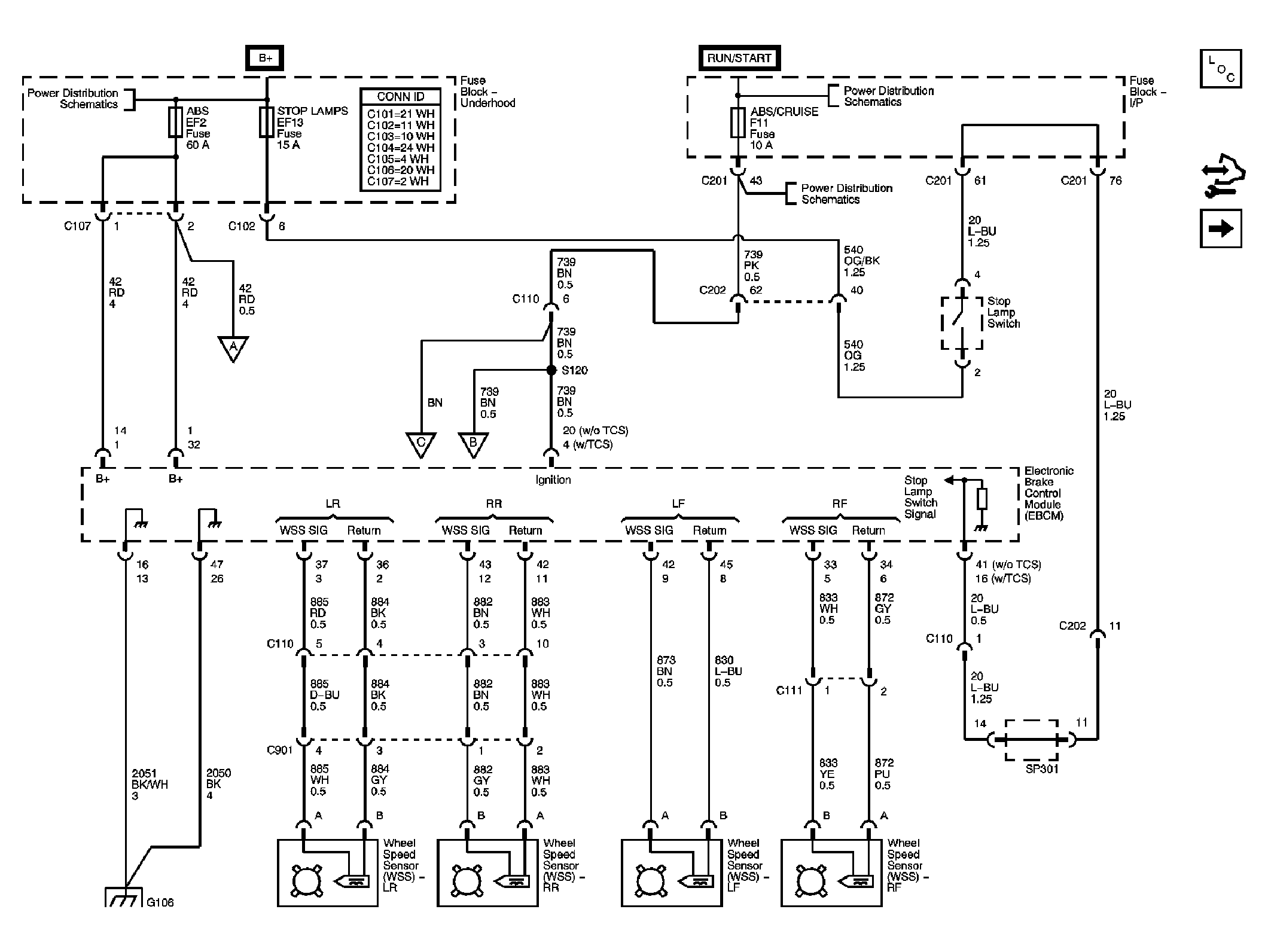

Fig 1: Power, Ground, Wheel Speed Sensors Schematic

GM1843497

Courtesy of GENERAL MOTORS CORP.

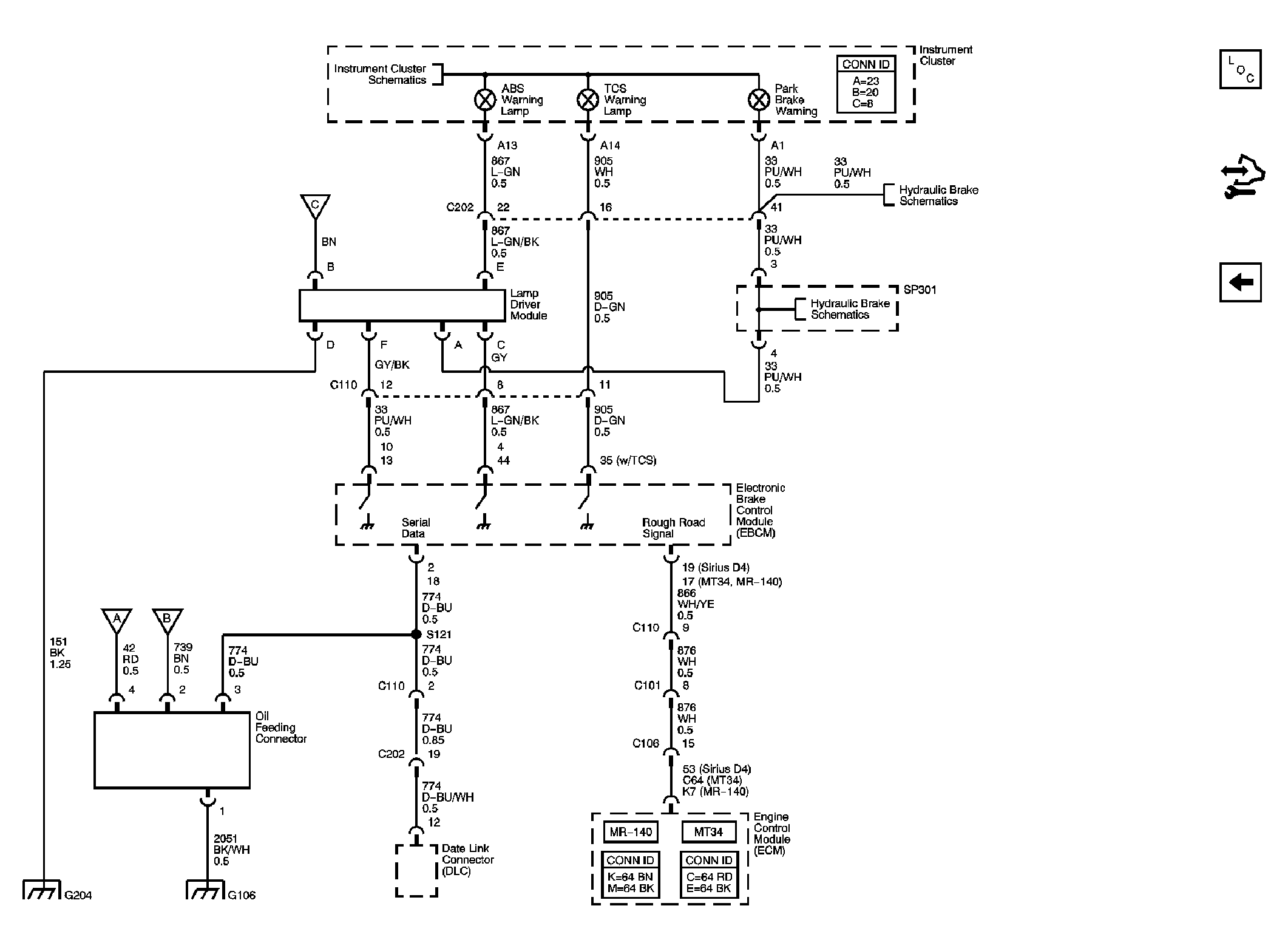

Fig 2: Warning Lamps, Serial Data Schematic

GM1843498

Courtesy of GENERAL MOTORS CORP.
