Moveable Window Schematics

Fig 1: Front/Rear Power Windows Schematic

GM1650864

Courtesy of GENERAL MOTORS CORP.

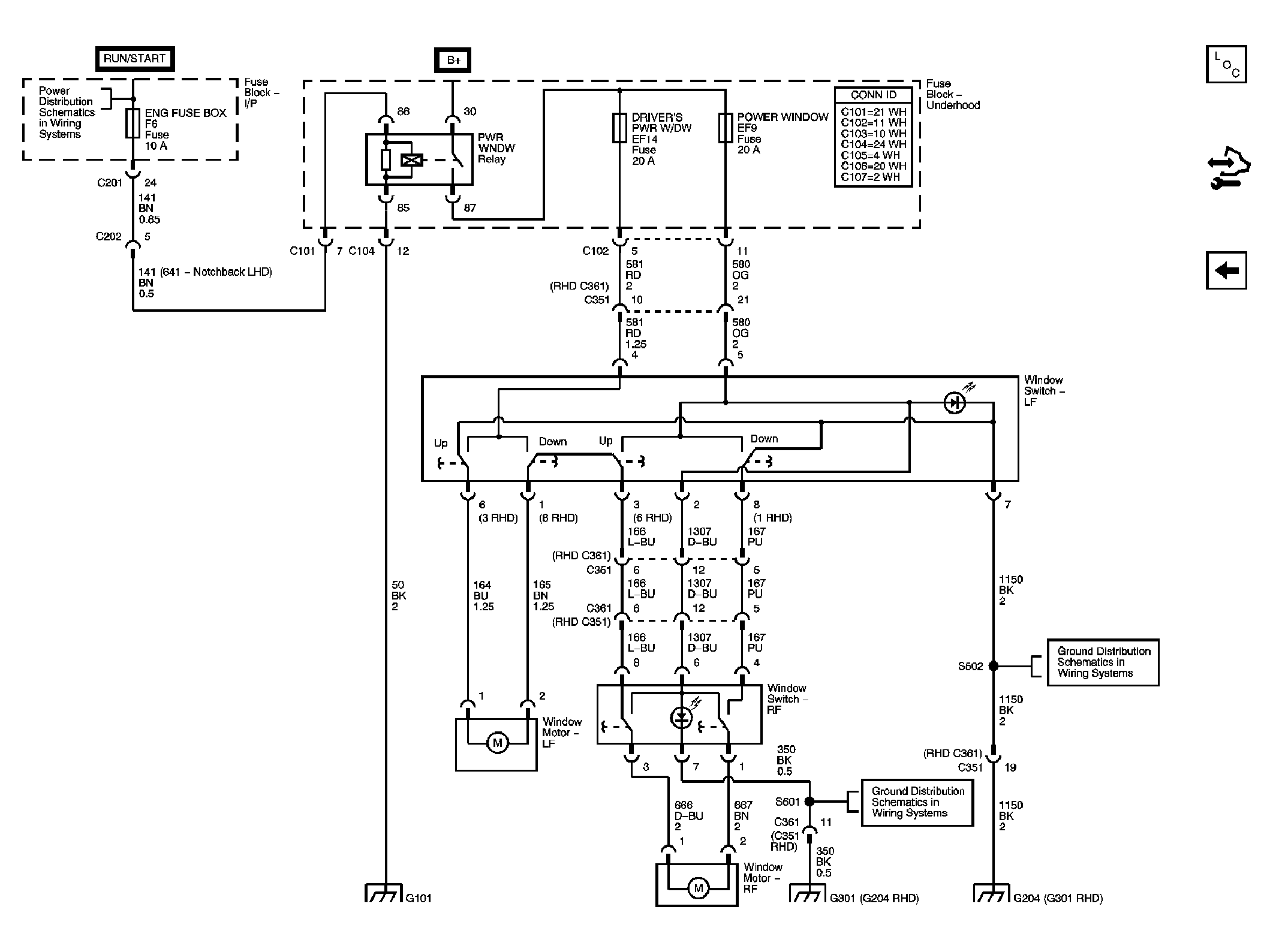

Fig 2: Front Power Windows Schematic

GM1709025

Courtesy of GENERAL MOTORS CORP.
