Installation Procedure

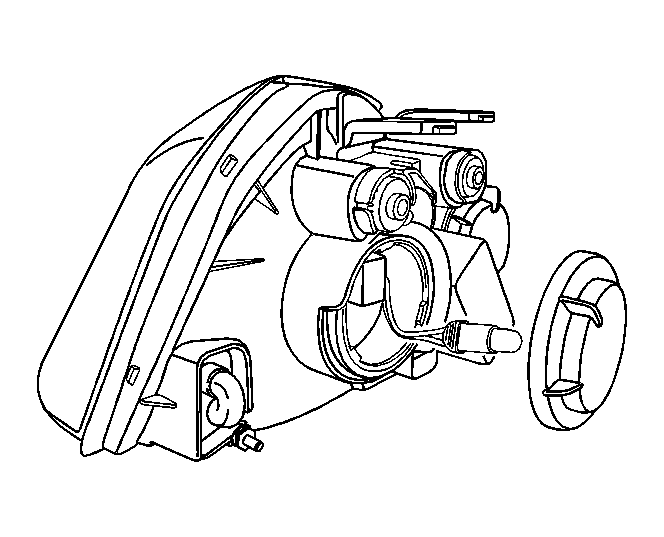

    Fig 1: Identifying Turn Signal Lamp
    GM1651525Courtesy of GENERAL MOTORS CORP.
  1. Install the turn signal lamp, if removed.

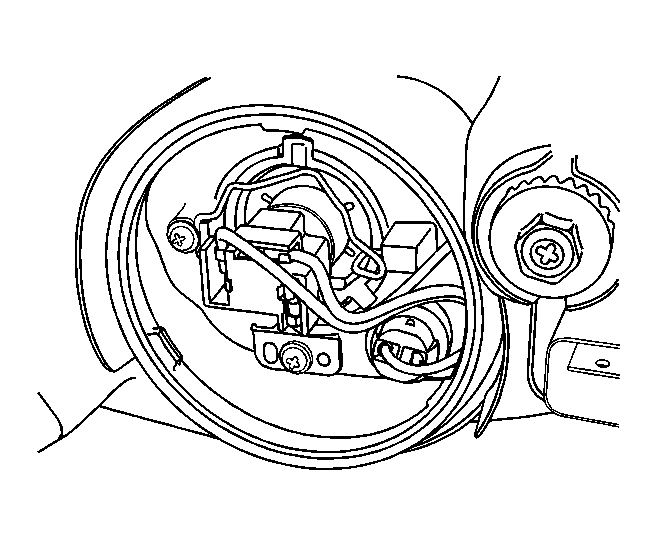

    2. Fig 2: View Of Park Lamp Connector
    GM1651523Courtesy of GENERAL MOTORS CORP.
  2. Install the park lamp, if removed.

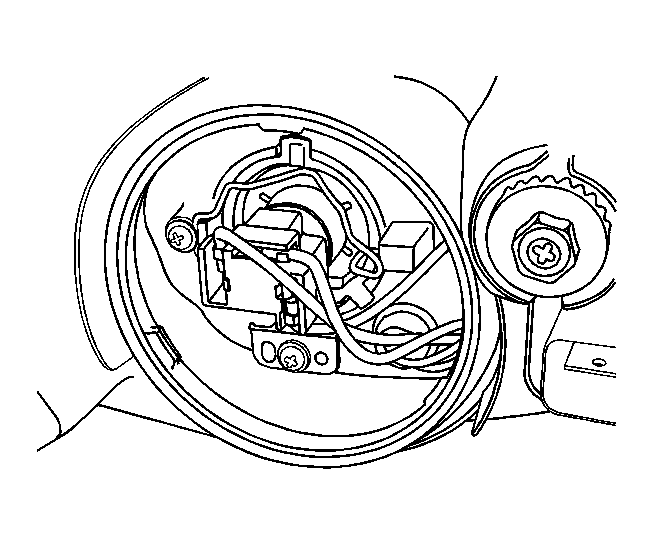

    3. Fig 3: View Of Headlamp Bulb Connector
    GM1541392Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp bulb, if removed.
  4. Install the headlamp bulb clip, if removed.
  5. Connect the headlamp bulb electrical connector, if removed.

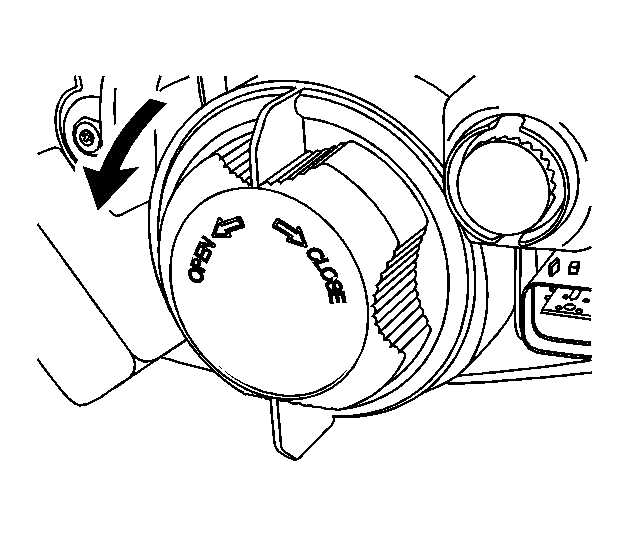

    6. Fig 4: View Of Headlamp Bulb Cap
    GM1541388Courtesy of GENERAL MOTORS CORP.
  6. Install the cap concealing the headlamp bulb, if removed.

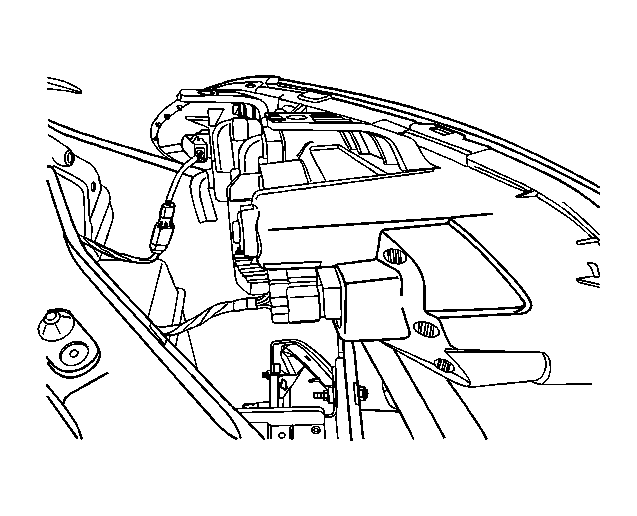

    7. Fig 5: Identifying Headlamp And Parklamp Electrical Connectors
    GM1541387Courtesy of GENERAL MOTORS CORP.
  7. Install the headlamp assembly.
  8. Connect the headlamp electrical connector.
  9. Connect the park lamp electrical connector.

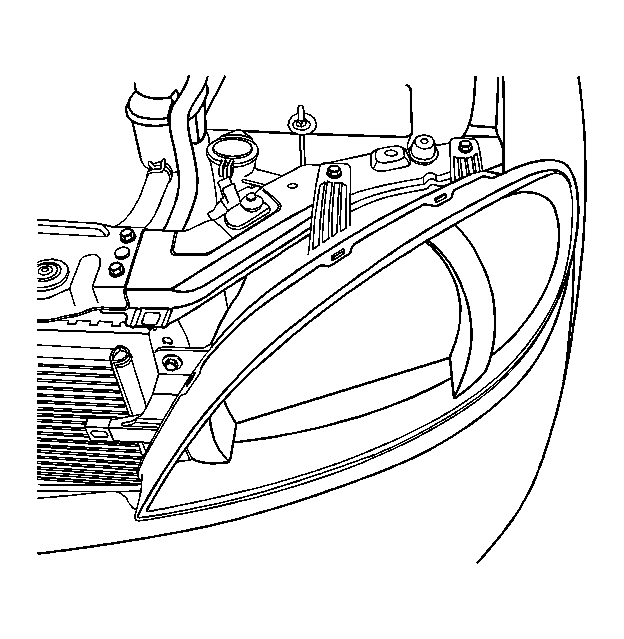

    10. Fig 6: View Of Headlamp And Mounting Bolts
    GM1541386Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  10. Install the headlamp mounting bolts.

    Tighten:  Tighten the headlamp mounting bolts to 4 N.m (35 lb in)  .

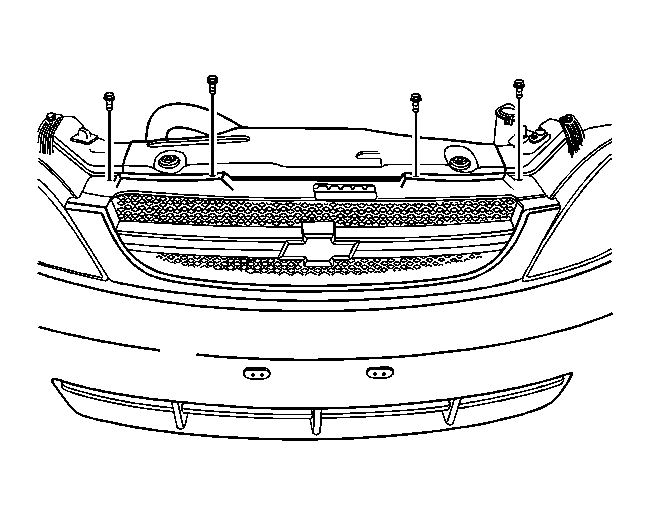

    11. Fig 7: Identifying Radiator Grill Screws
    GM1541384Courtesy of GENERAL MOTORS CORP.
  11. Install the radiator grille.
  12. Install the radiator grille screws.
  13. Connect the negative battery cable.
