Installation Procedure

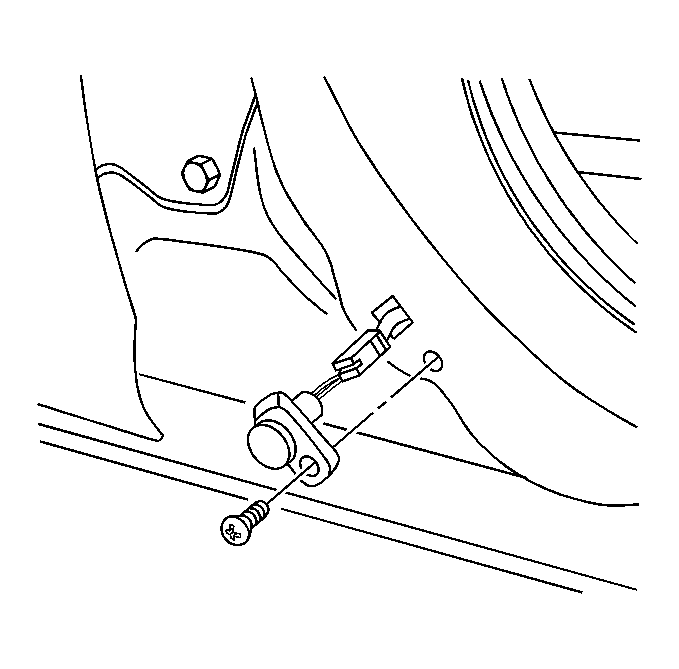

    Fig 1: Identifying Door Jamb Switch
    GM1308868Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice .
  2. Install the door jamb switch with the screw.

    Tighten:  Tighten the door jamb switch screw to 4 N.m (35 lb in)  .

  3. Connect the negative battery cable.
