Input Shaft Speed (ISS) Sensor

The ISS sensor (1) is located on the upper position of the transaxle and detects A/T input speed from the rotation number of the direct clutch drum. They transmit to TCM as a signal.

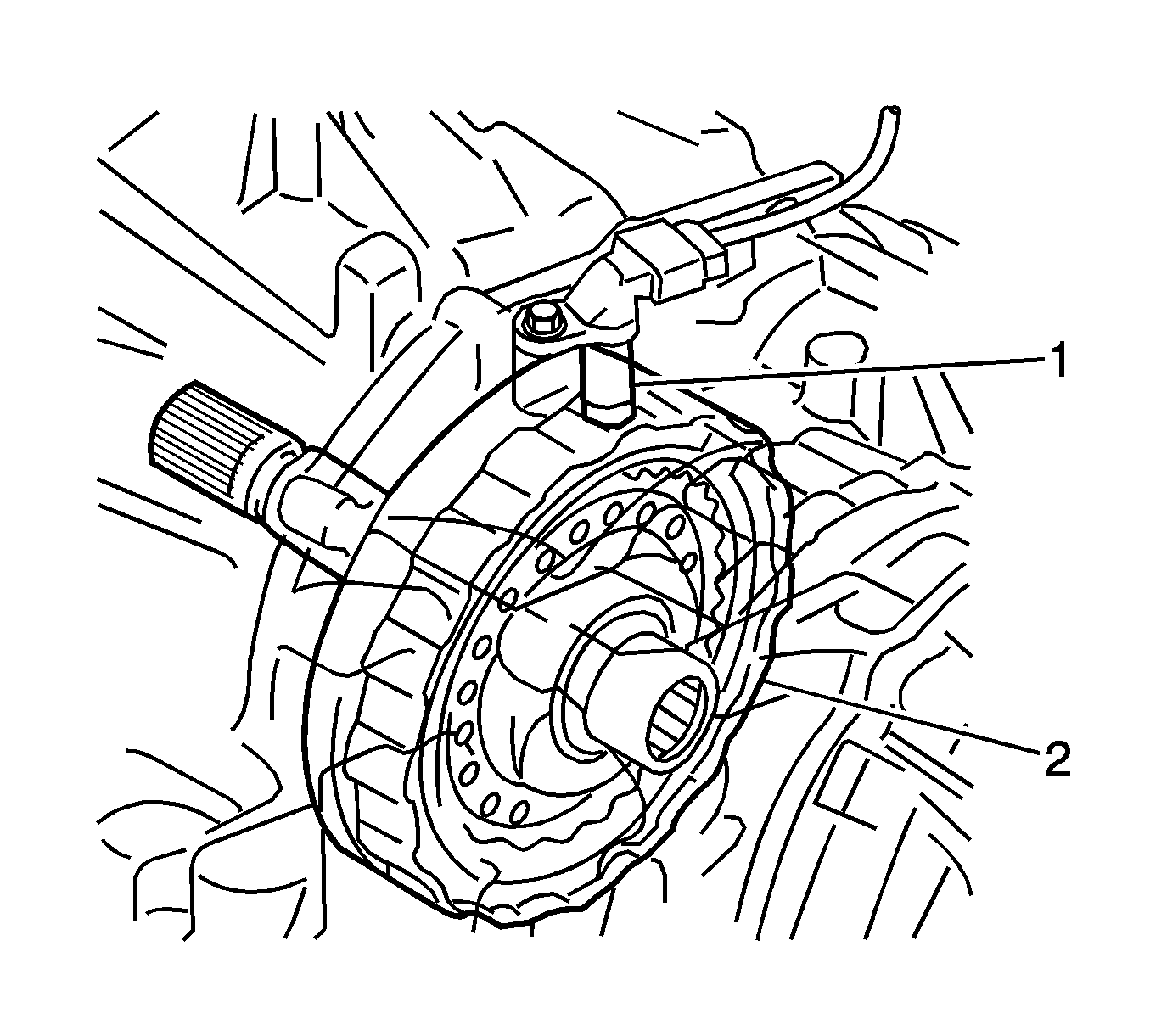

Fig 1: Identifying Input Shaft Speed (ISS) Sensor

Courtesy of GENERAL MOTORS CORP.
