Component Locator
>>
Tire Pressure Monitoring System Component Views
Tire Pressure Monitoring System Component Views

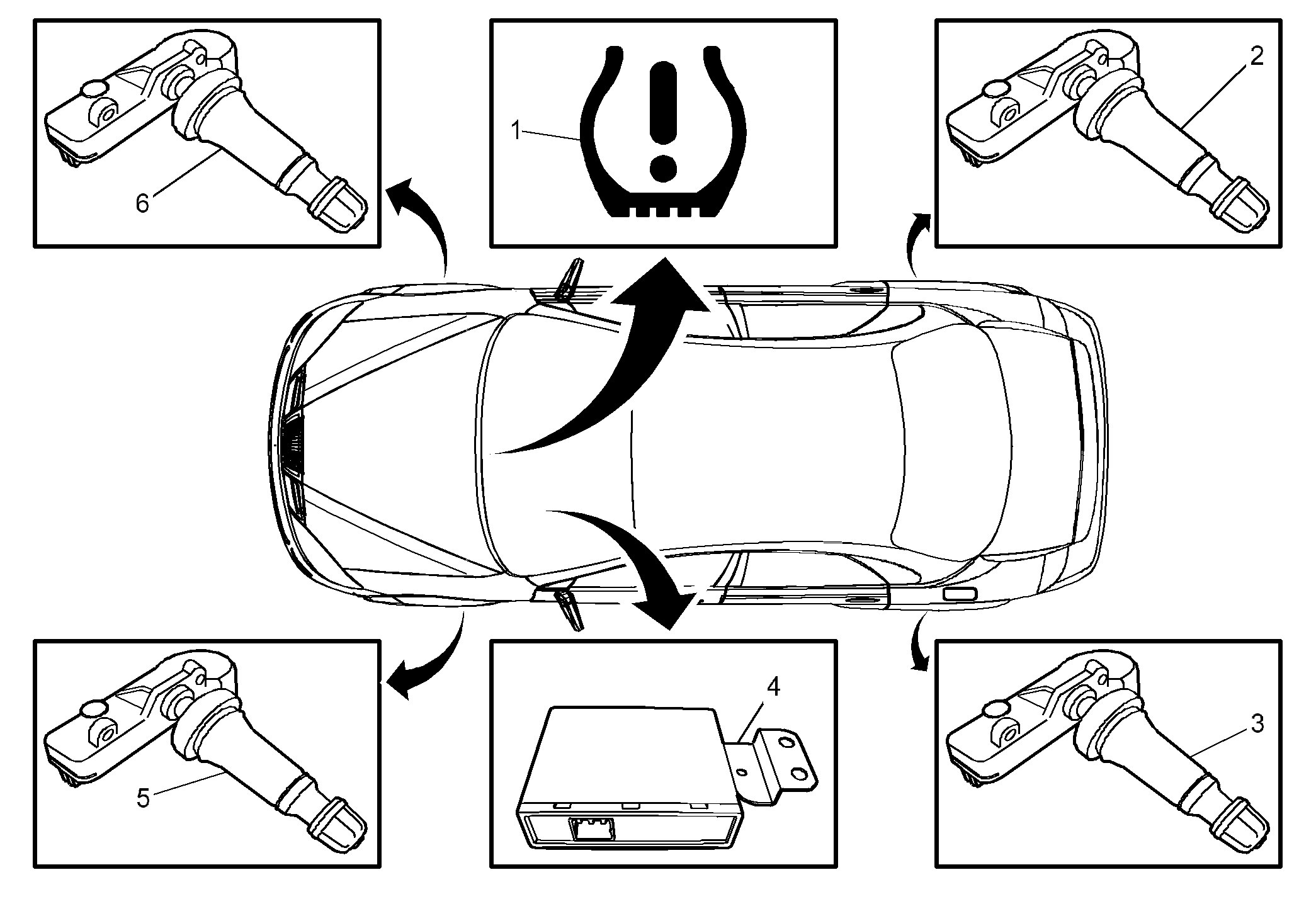

Fig 1: Identifying Tire Pressure Monitoring System Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Warning Lamp
2
Right Rear Transmitter
3
Left Rear Transmitter
4
Tire Pressure Monitor System (TPMS) Receiver Module
5
Left Front Transmitter
6
Right Front Transmitter
