Engine Control Module (PCM) Connector End View C1

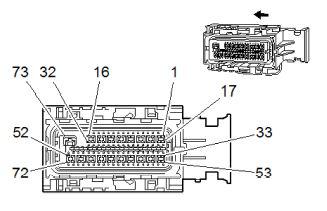

Fig 1: ECM C1 Connector End View
G00574272Courtesy of GENERAL MOTORS CORP.

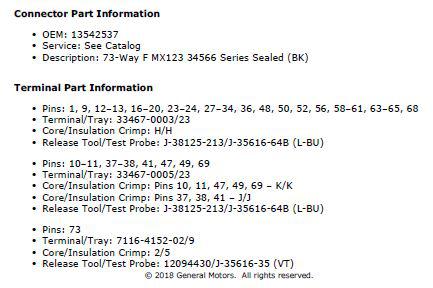

Fig 2: ECM C1 Connector End View Connector Legend (1 of 4)
G00574274Courtesy of GENERAL MOTORS CORP.

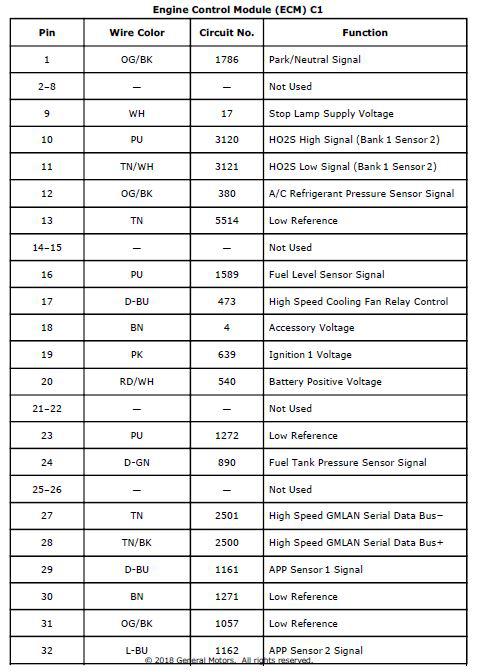

Fig 3: ECM C1 Connector End View Connector Legend (2 of 4)
G00574275Courtesy of GENERAL MOTORS CORP.

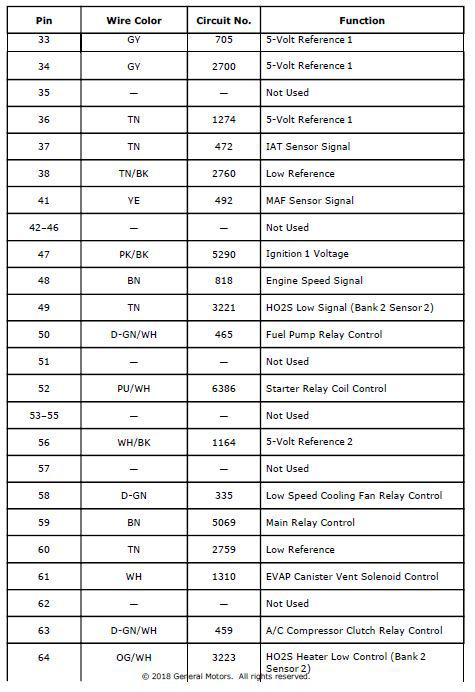

Fig 4: ECM C1 Connector End View Connector Legend (3 of 4)
G00574276Courtesy of GENERAL MOTORS CORP.

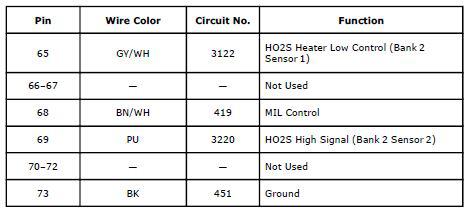

Fig 5: ECM C1 Connector End View Connector Legend (4 of 4)
G00574277Courtesy of GENERAL MOTORS CORP.
